Audible Warning Device: Service and Repair

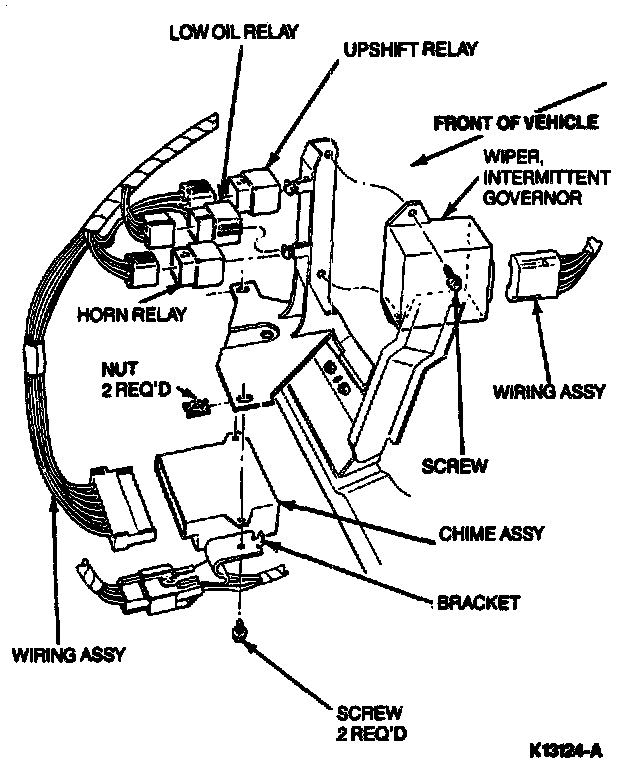

Removal and Installation

1. Disconnect battery ground cable.
2. Remove two screws retaining warning chime to bracket.
3. Disconnect electrical connector to warning chime.
4. Remove chime.
5. To install, reverse Steps 1 through 4.
