LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1991
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Wiper Relay
>>

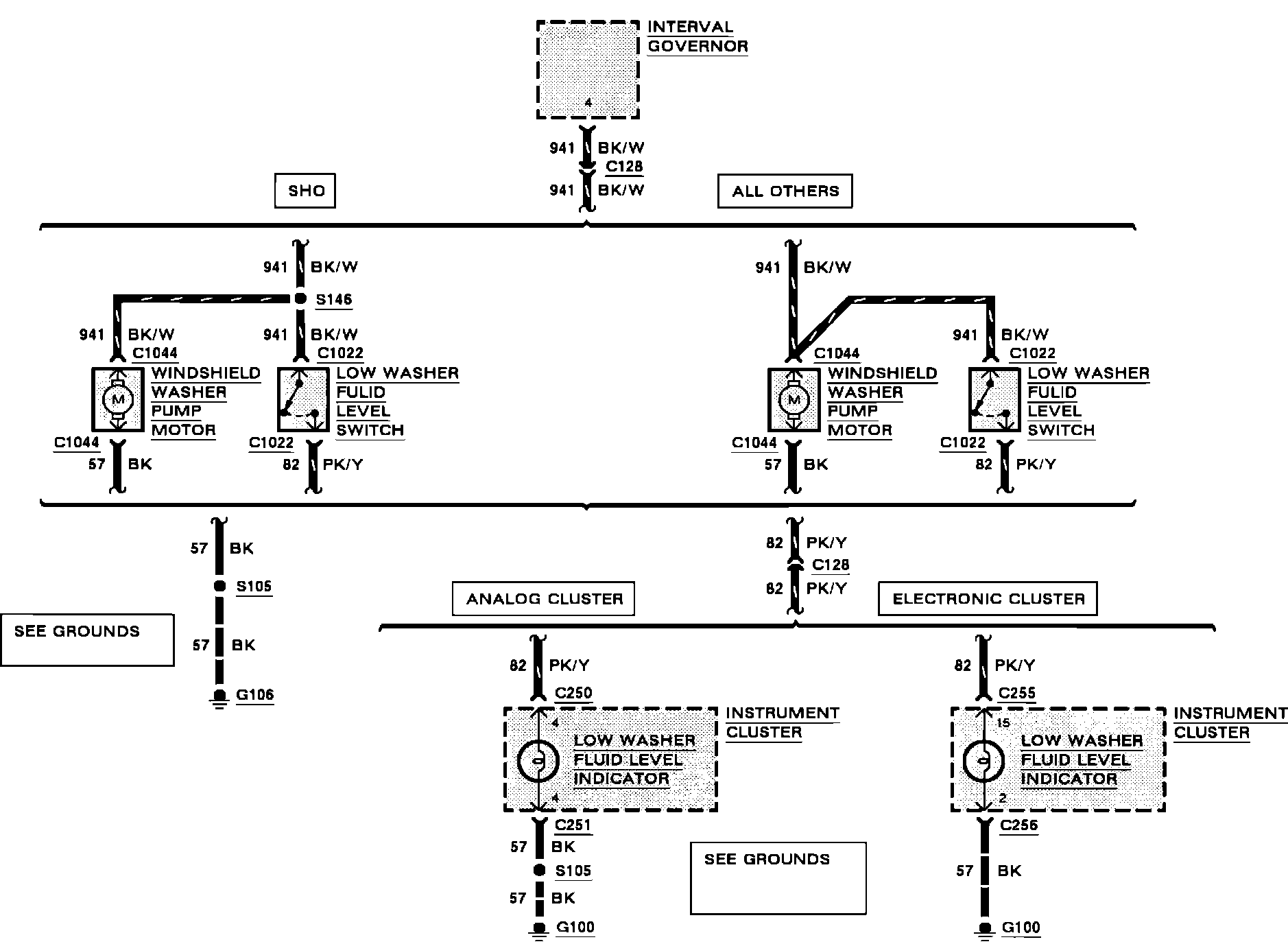

Front
Front

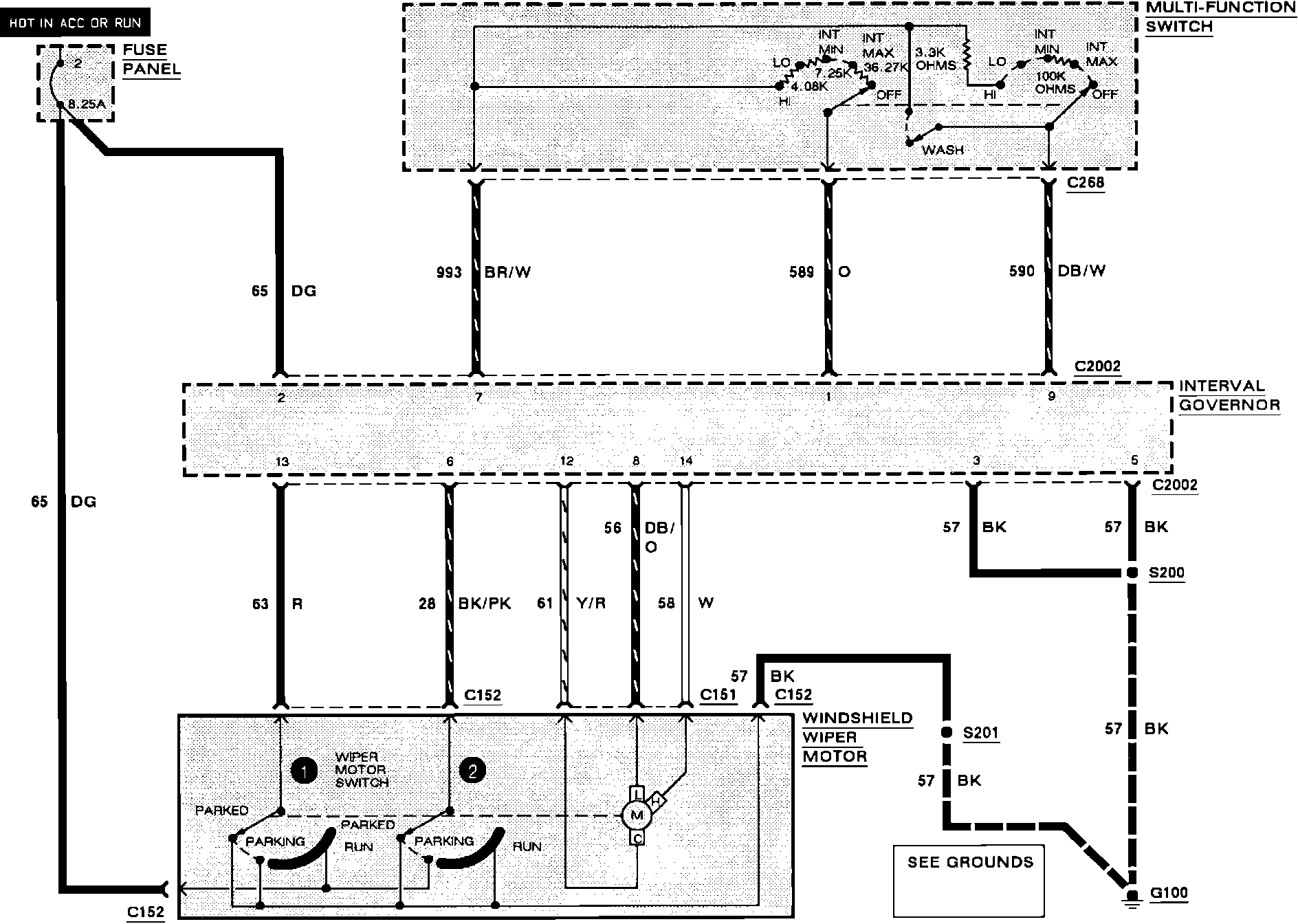

Interval Wiper/Washer:
Interval Wiper/Washer:
