Home
>>
Ford
>>
1991
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
>>

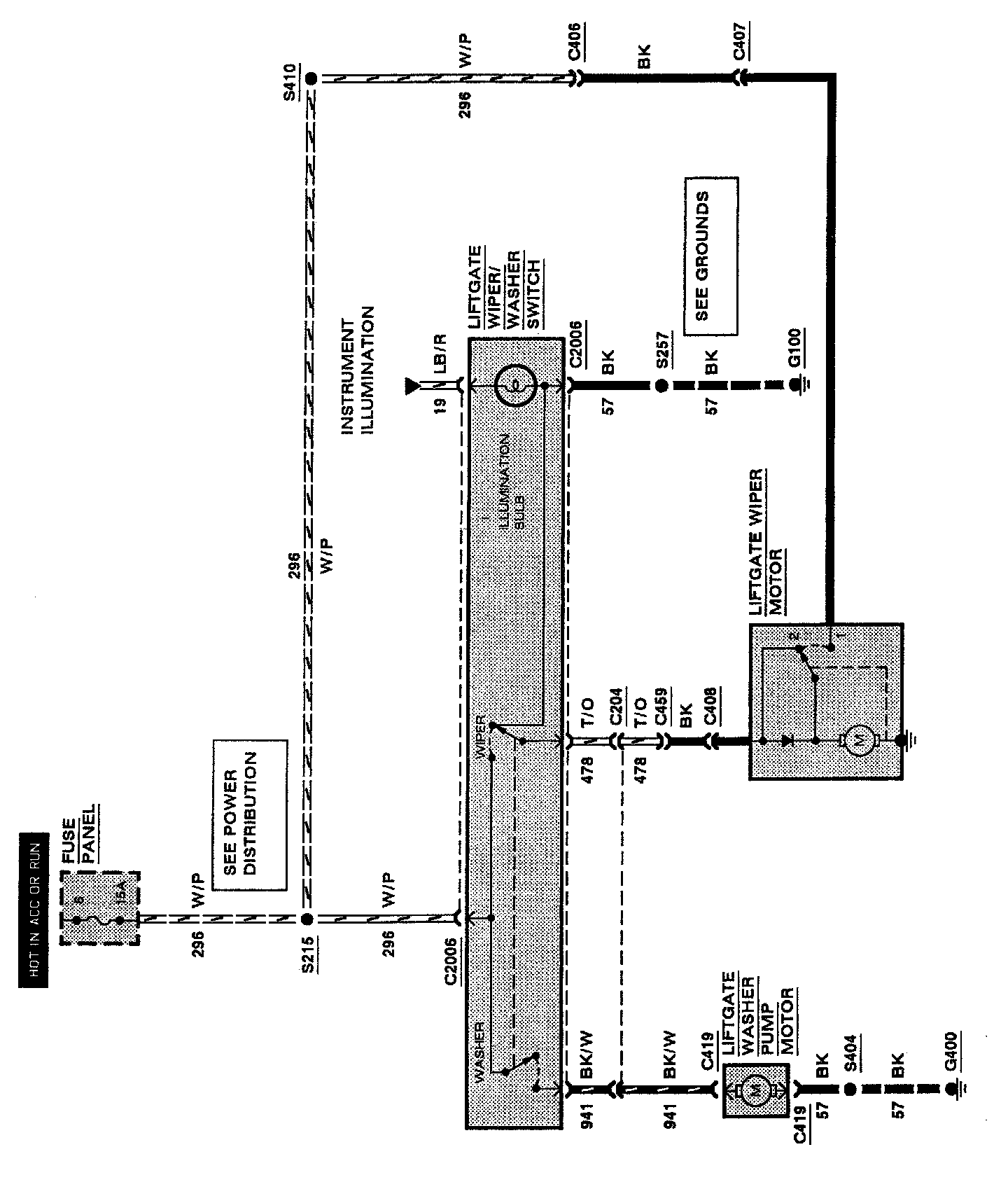

Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
