Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate Motor

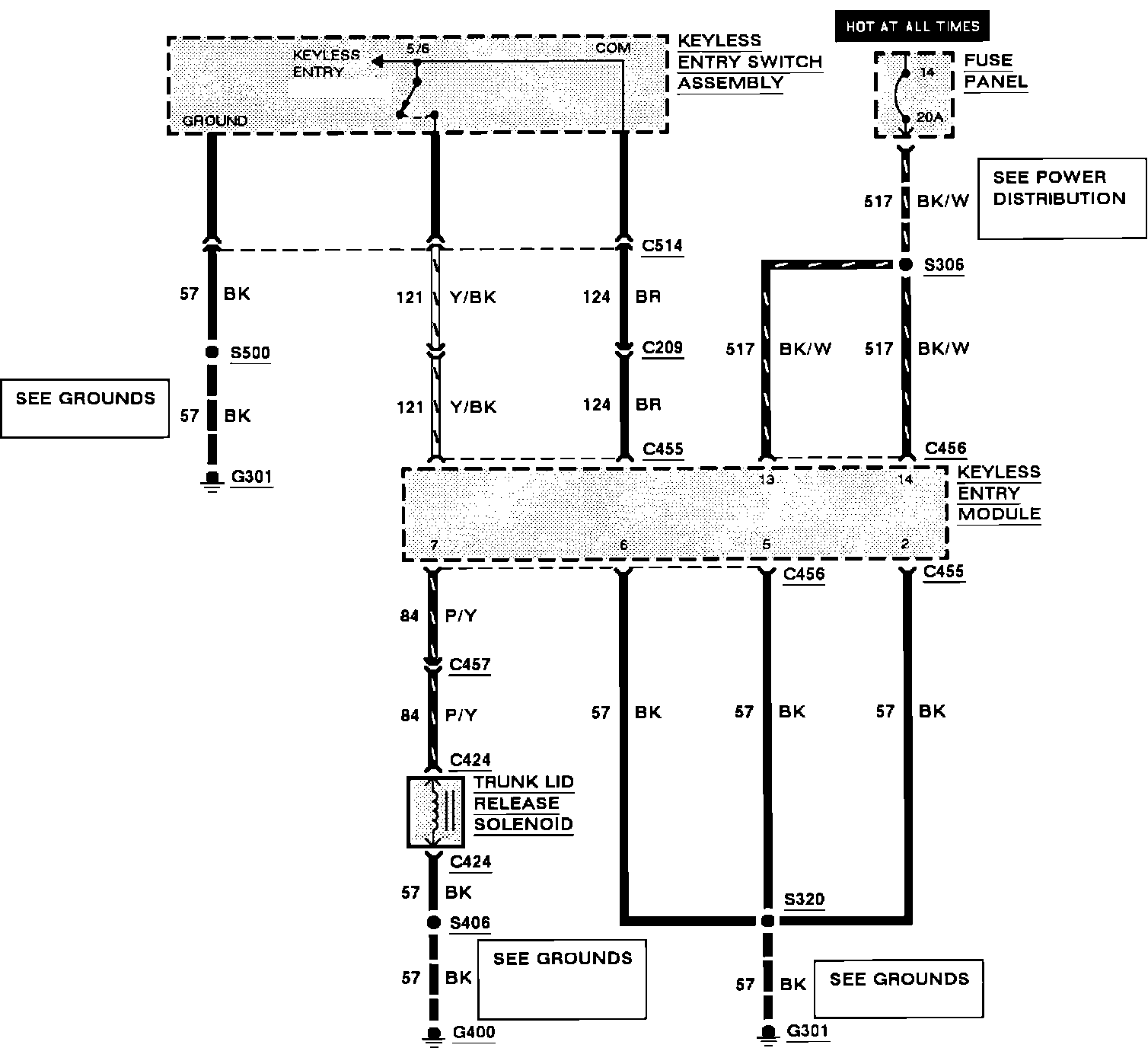

Trunk / Liftgate Motor

Trunk Lid Release:
