Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

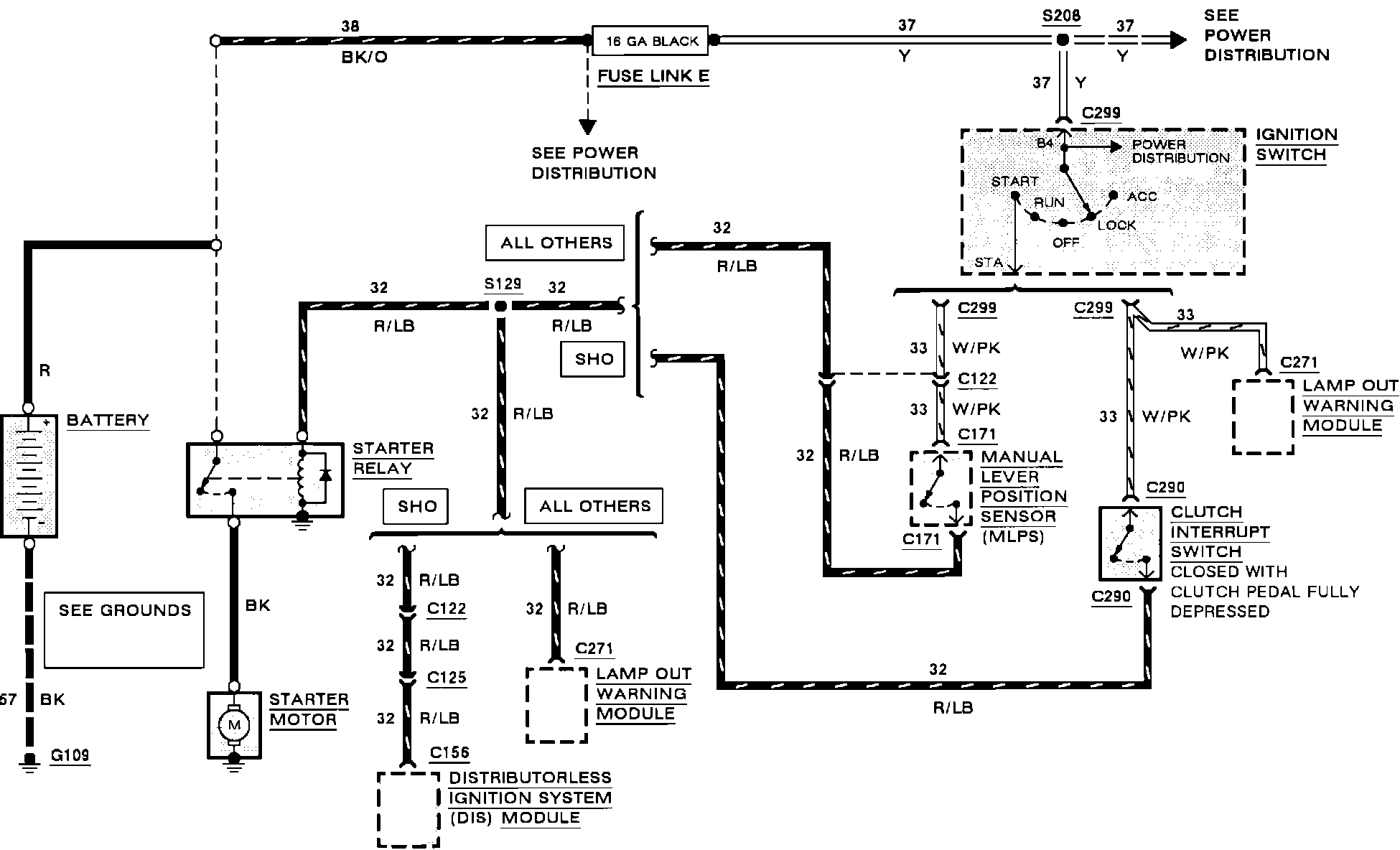

System Diagram
System Diagram
Starting System:
