Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System >> Wiring Diagrams

Wiring Diagrams

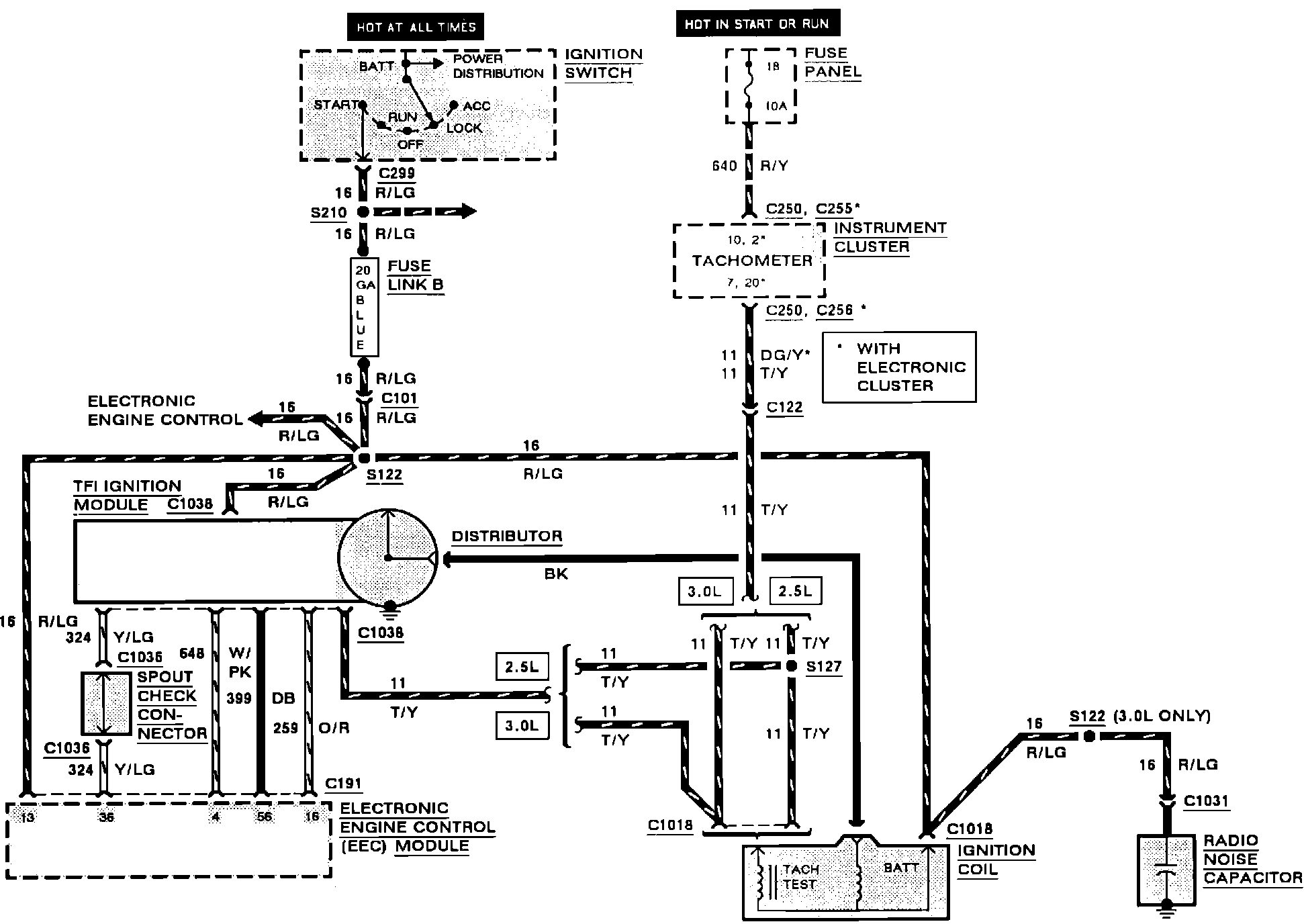

Wiring Diagram:



Functional Schematic:
