Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Ground Distribution >> G100 >> Less Police Option

Less Police Option

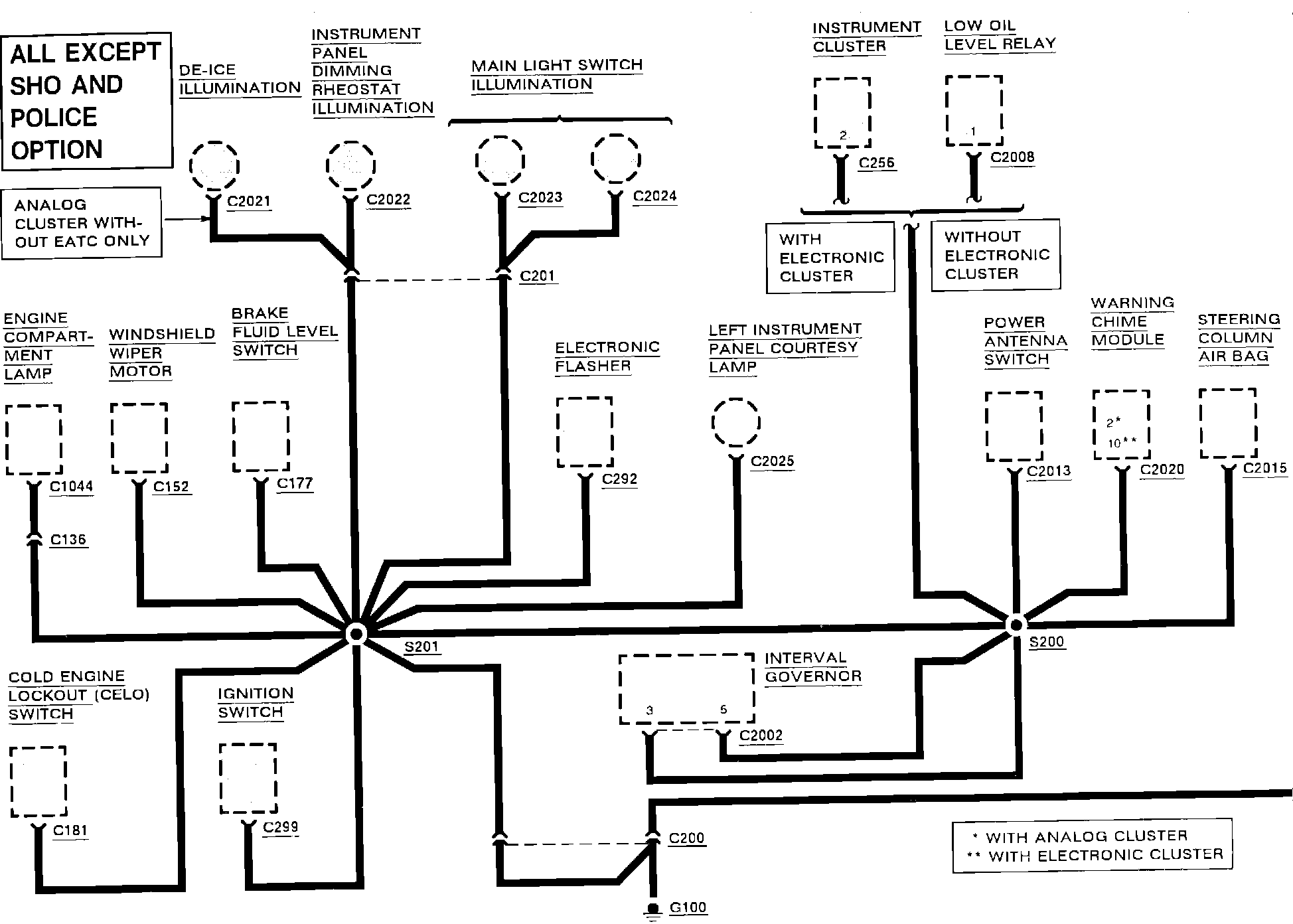

Ground (G100):

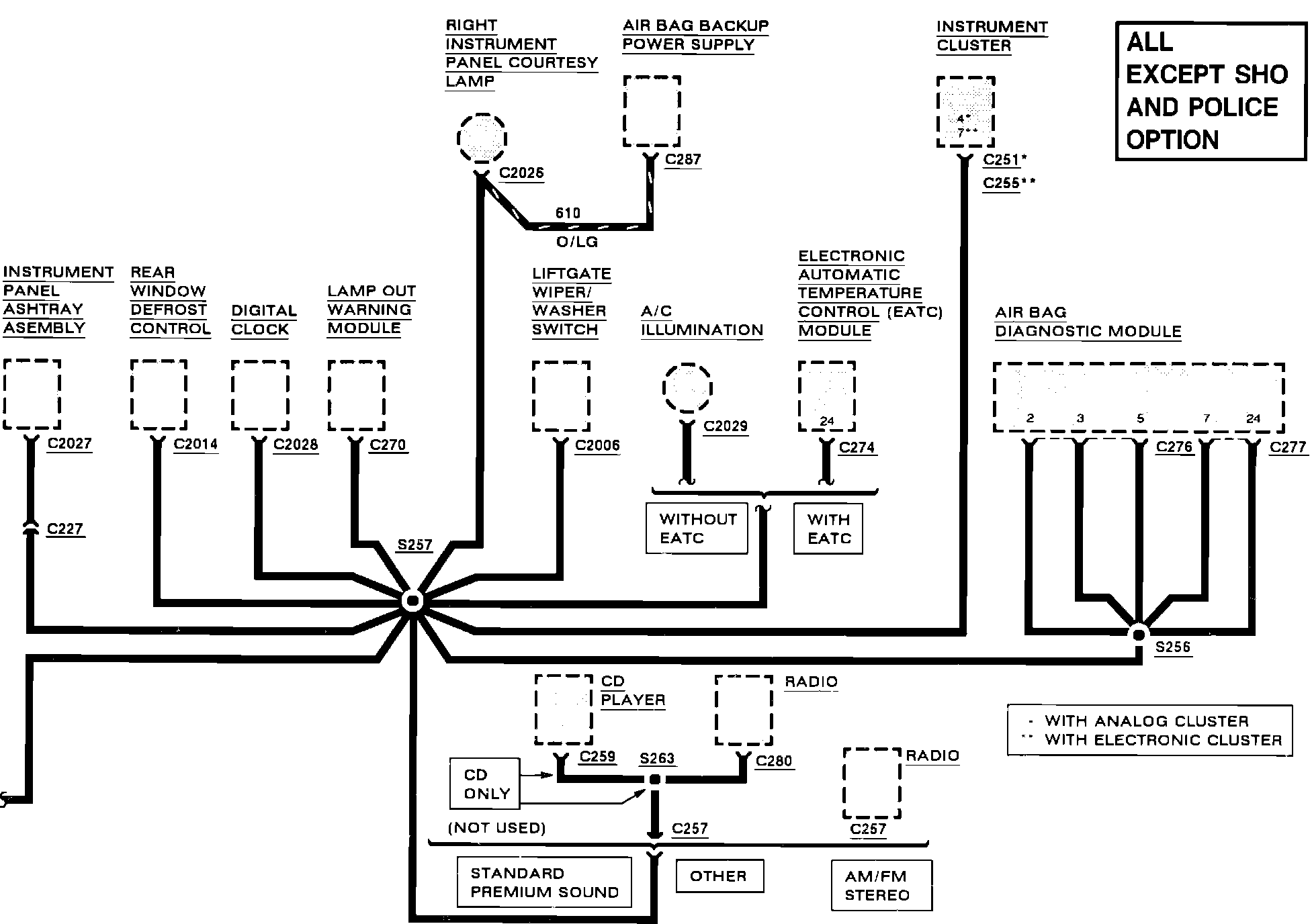

Ground (G100):
