Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> System Diagram >> Without Autolamps

Without Autolamps

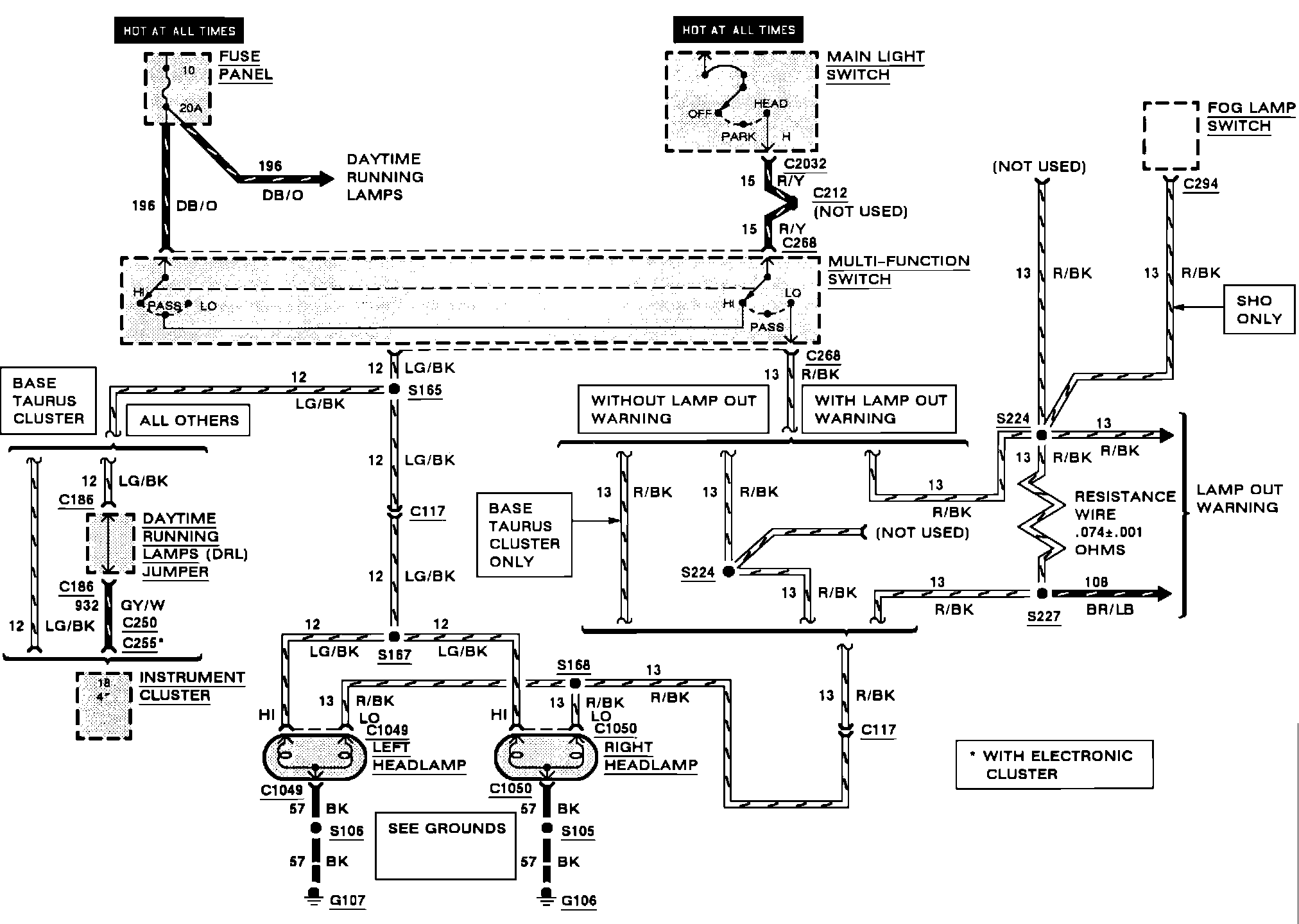

Headlamps (Without Daytime Running Lamps):
