Home >> Ford >> 1991 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> With Moonroof and Light Group Option

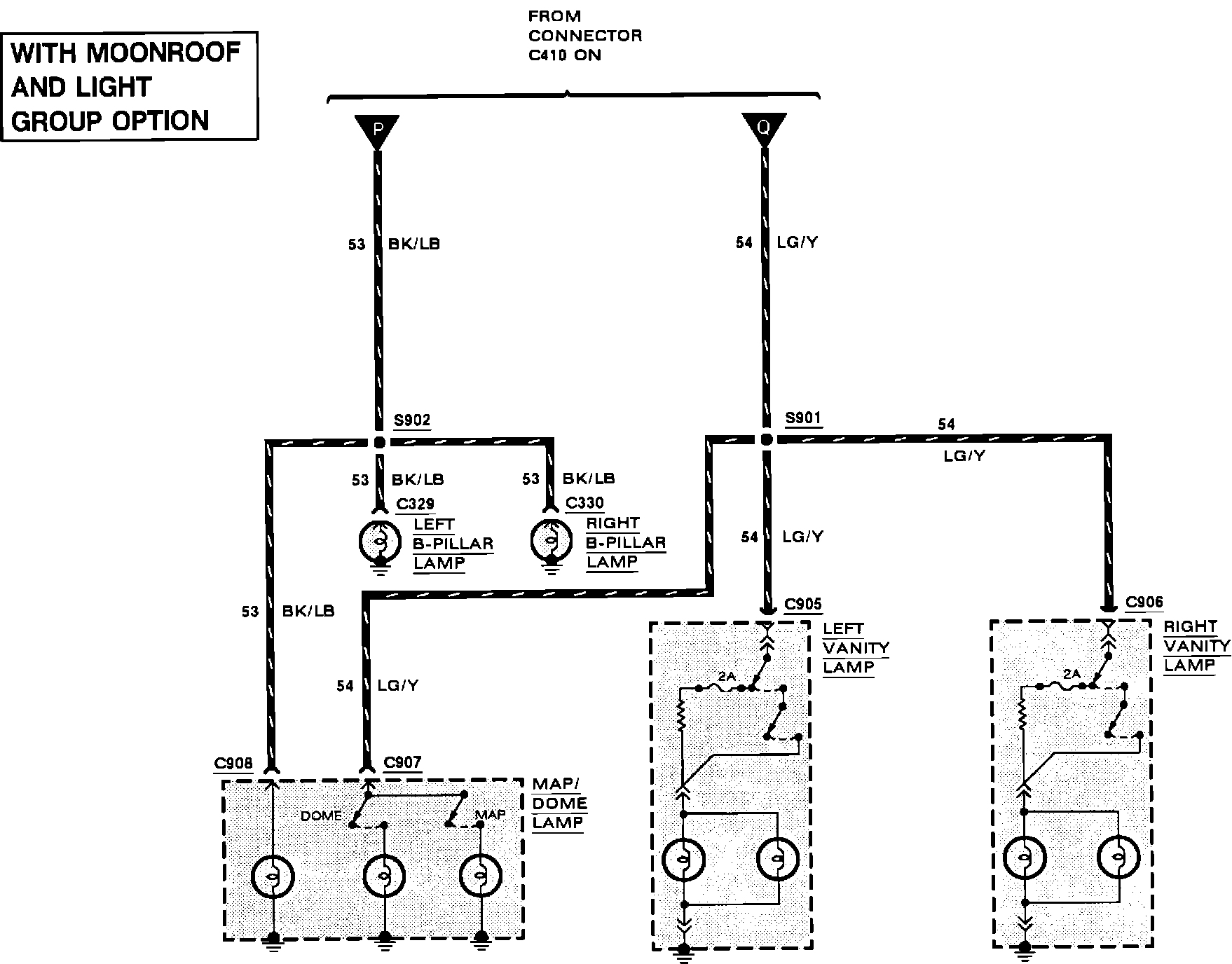

With Moonroof and Light Group Option

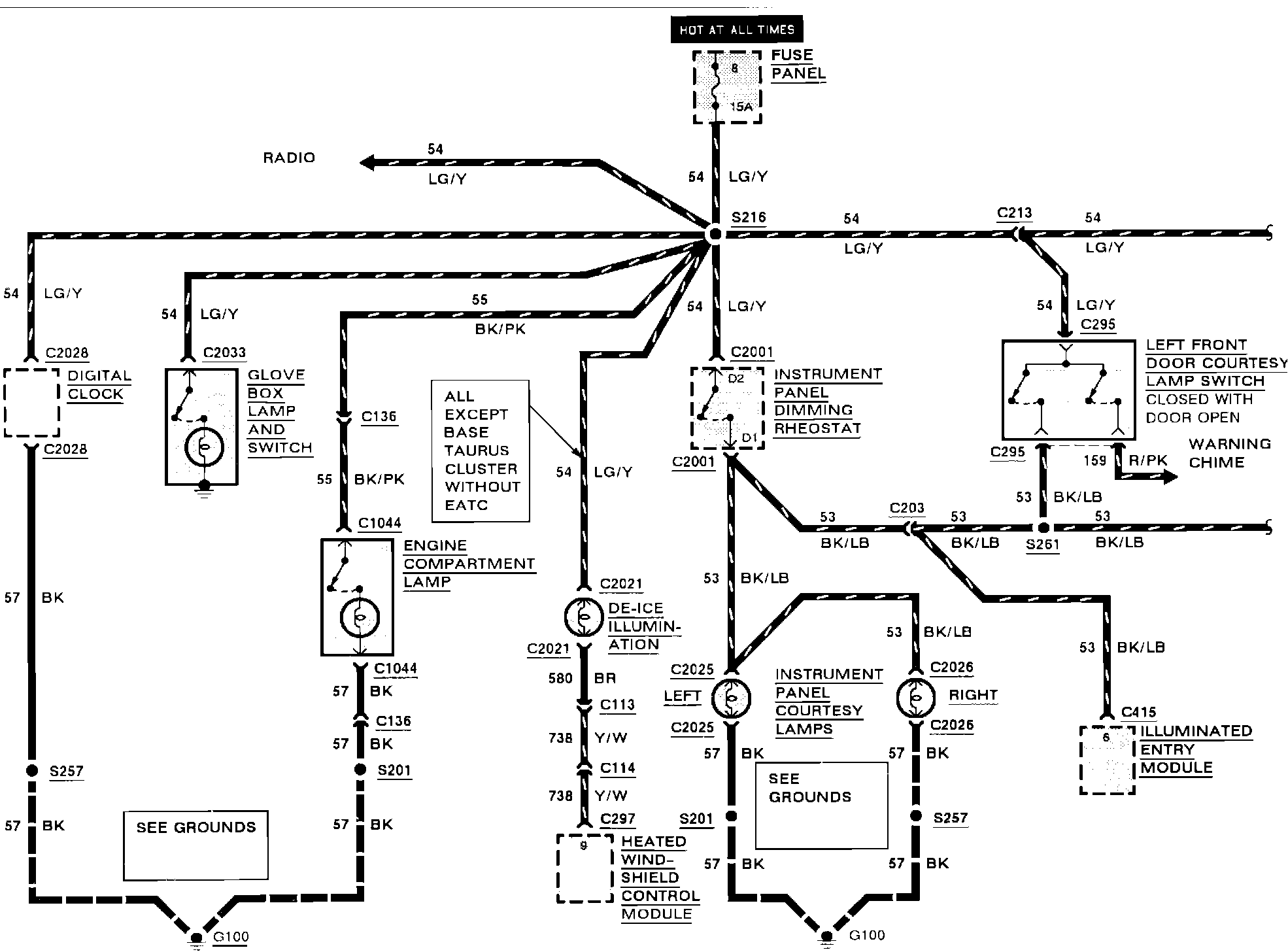

Courtesy Lamps:

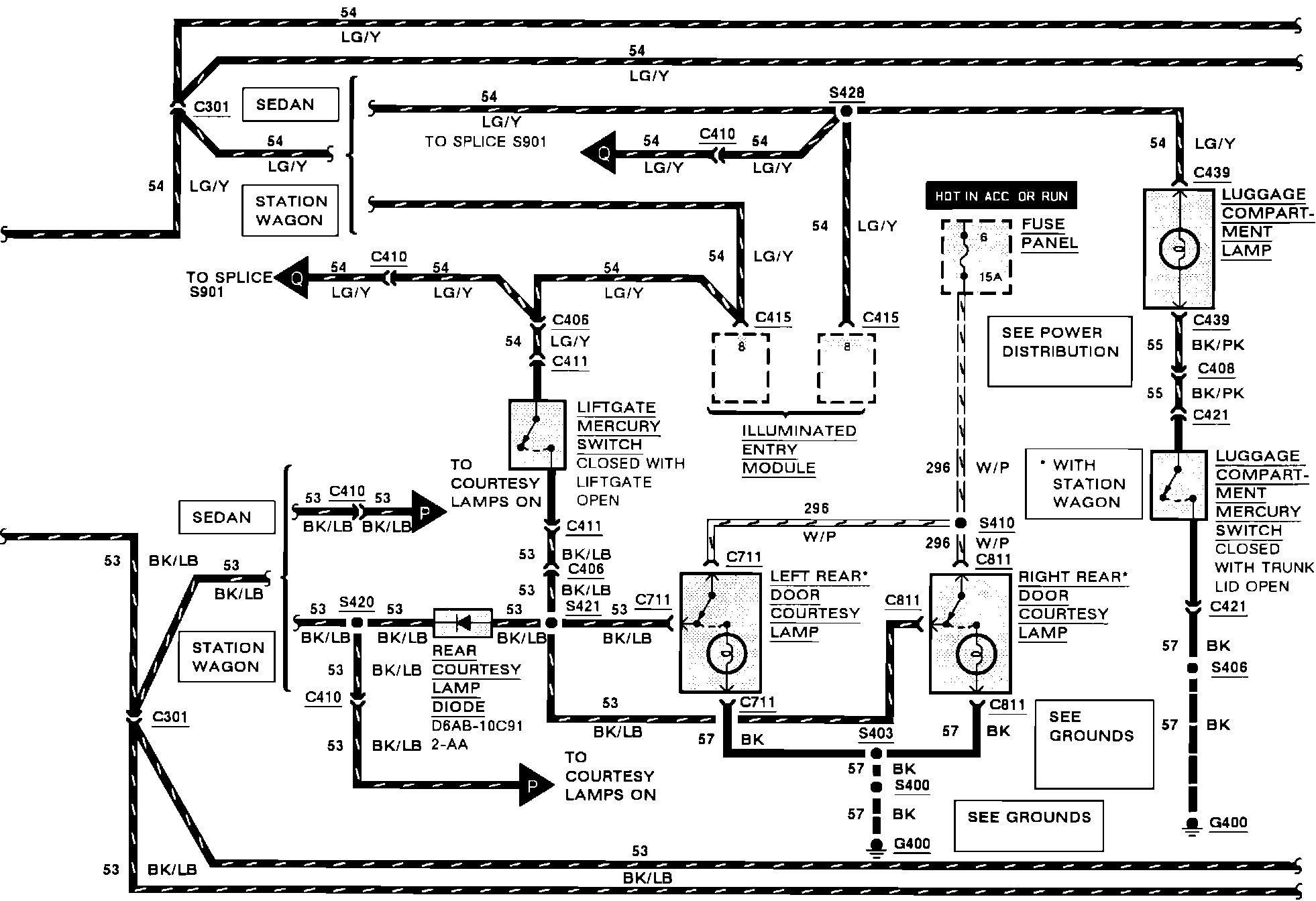

Courtesy Lamps:

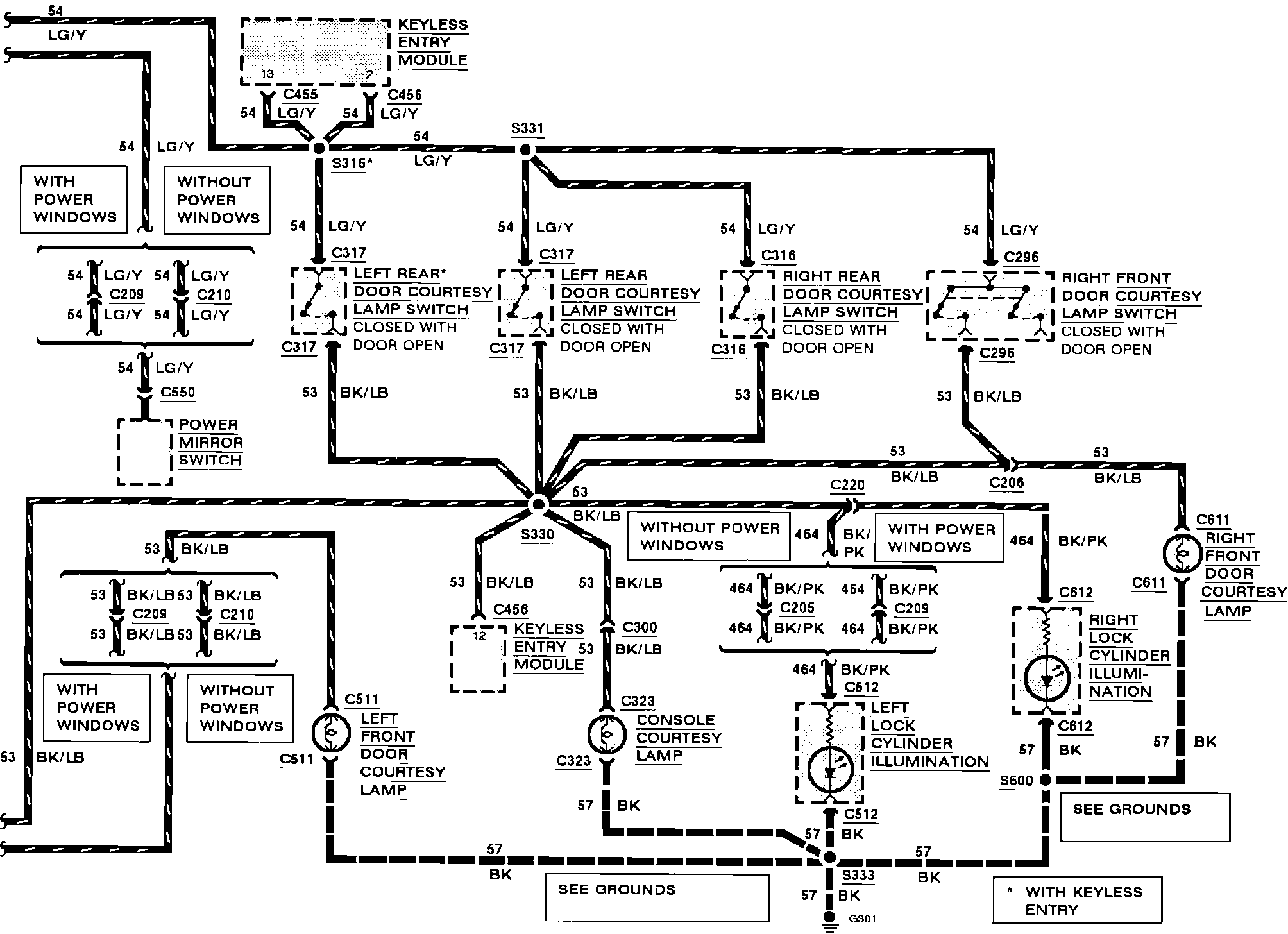

Courtesy Lamps:



Courtesy Lamps:
