Electronic

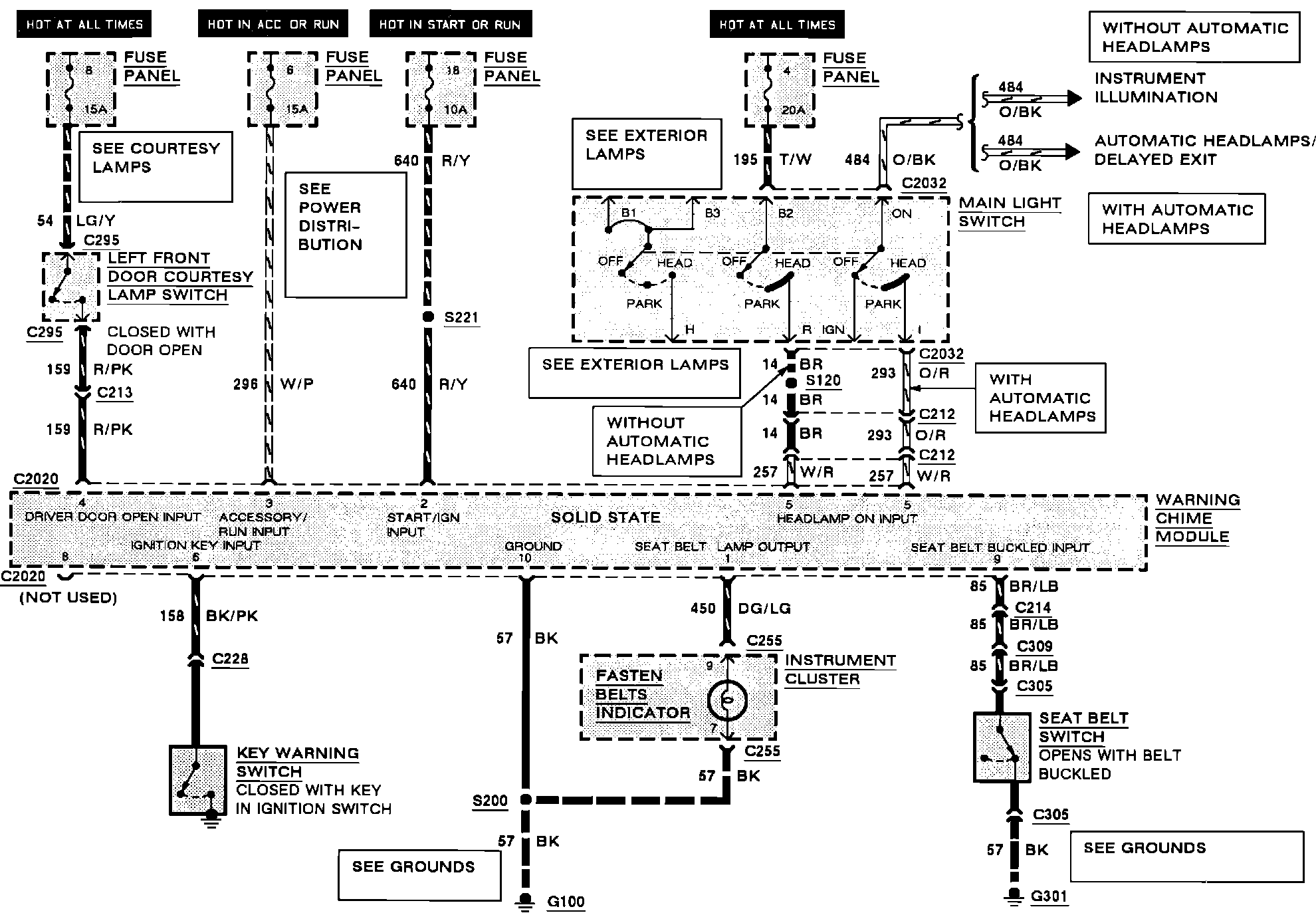

Warning Chime (Electonic Cluster):

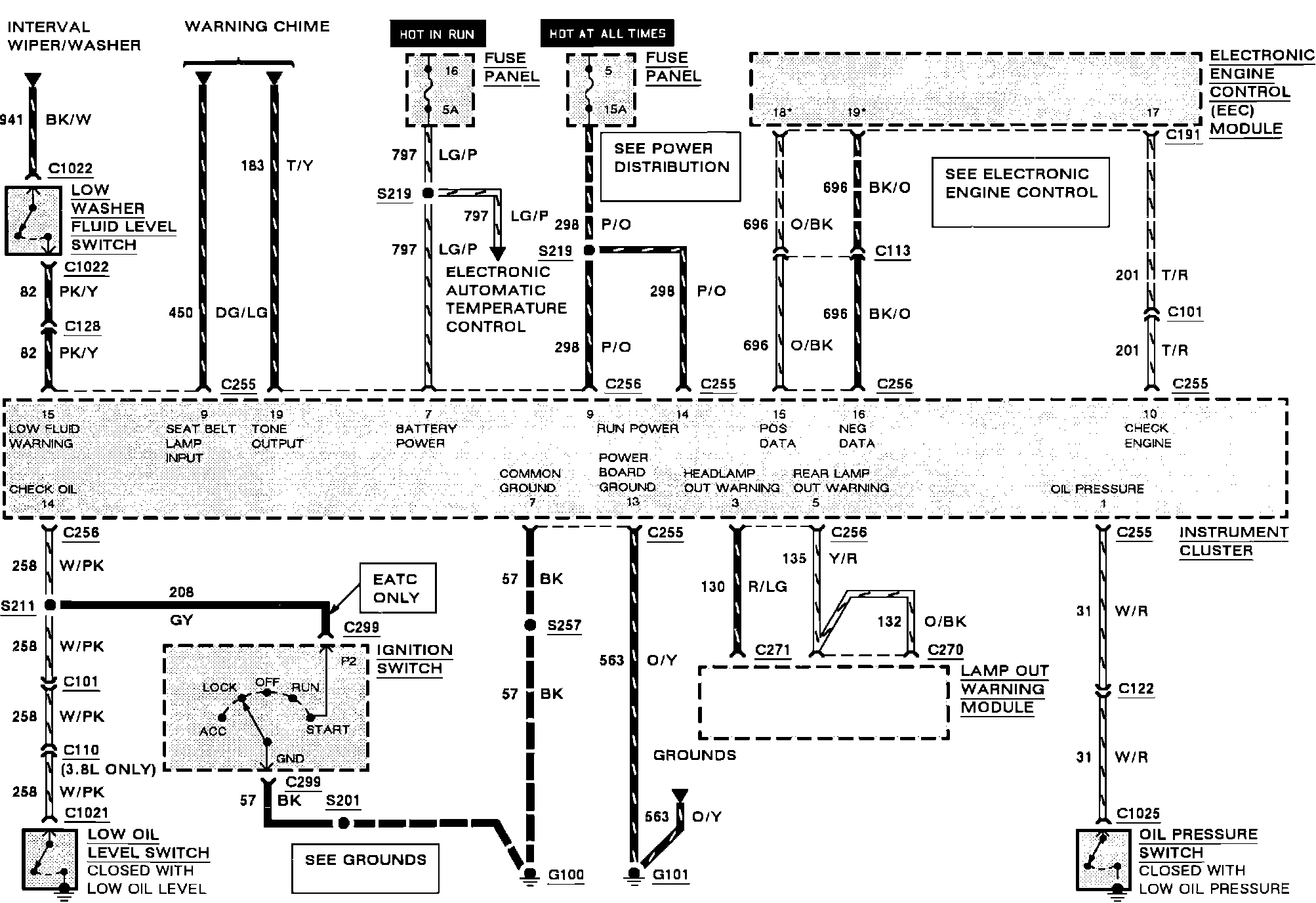

Instrument Panel (Electronic):

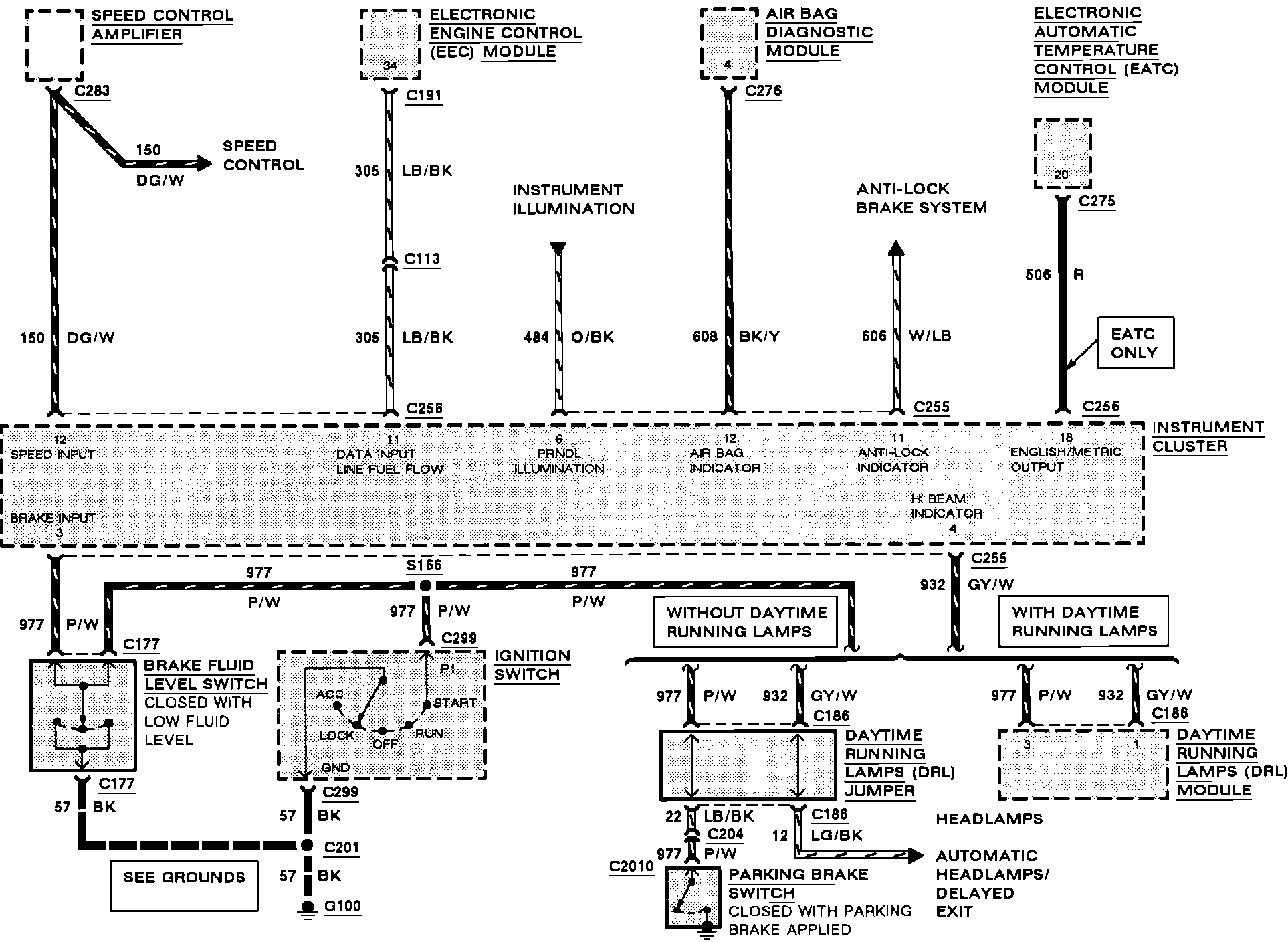

Instrument Panel (Electronic):

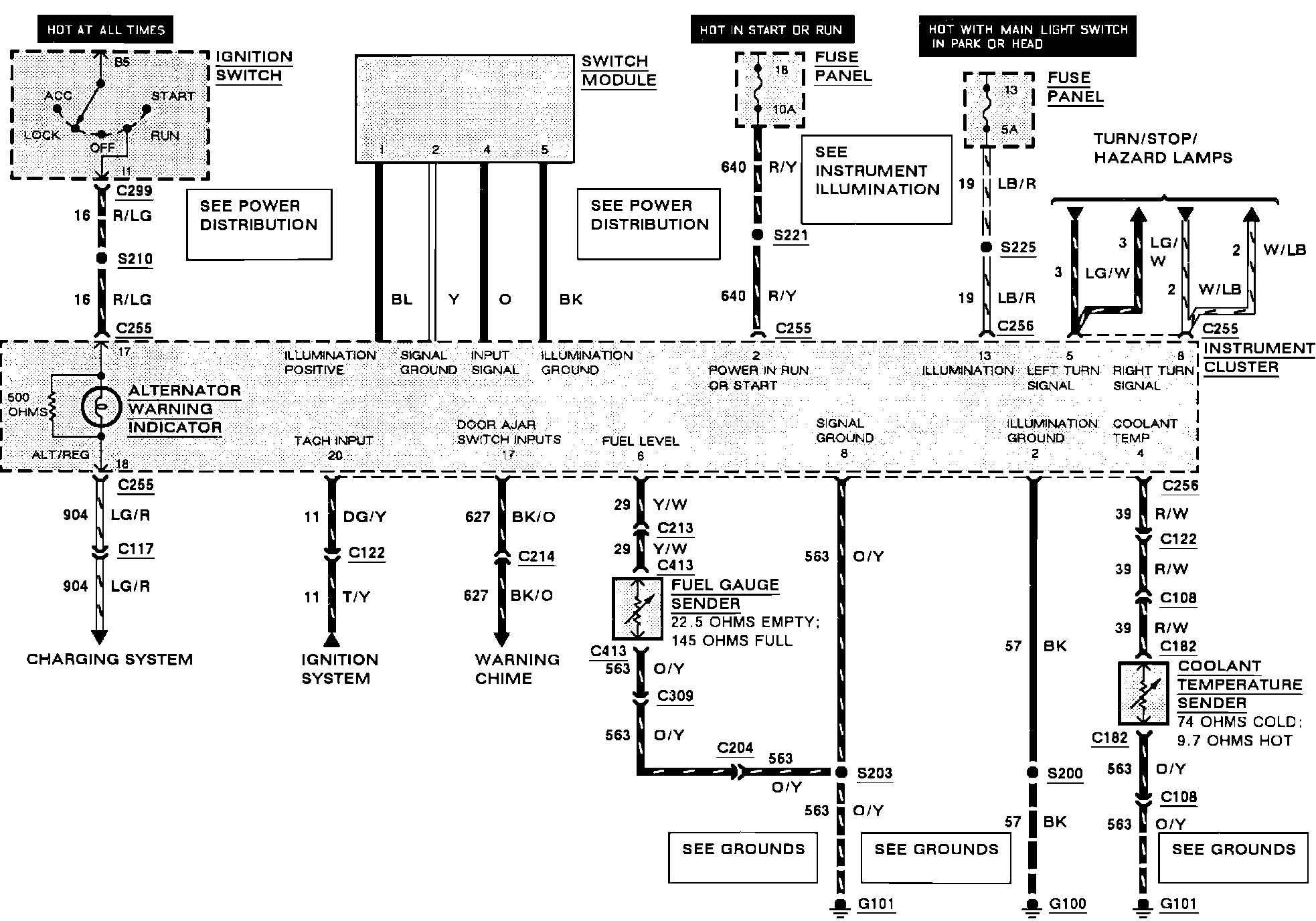

Instrument Panel (Electronic):
