System Diagram
System Diagram

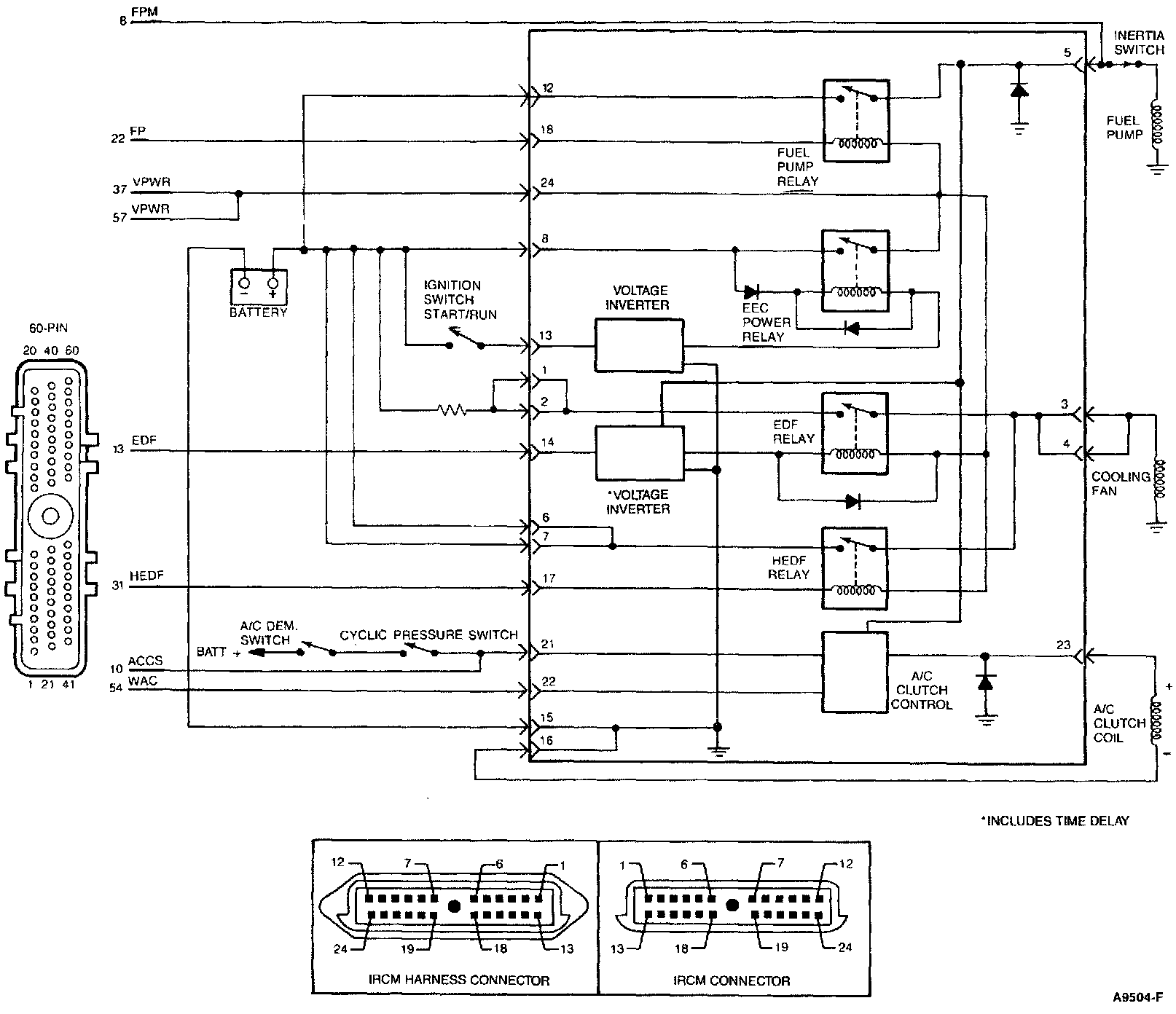

Cooling Fan Control System.:
Integrated Relay Control Module Pin Usage.:
