Transmission Hydraulic Diagrams - 4EAT

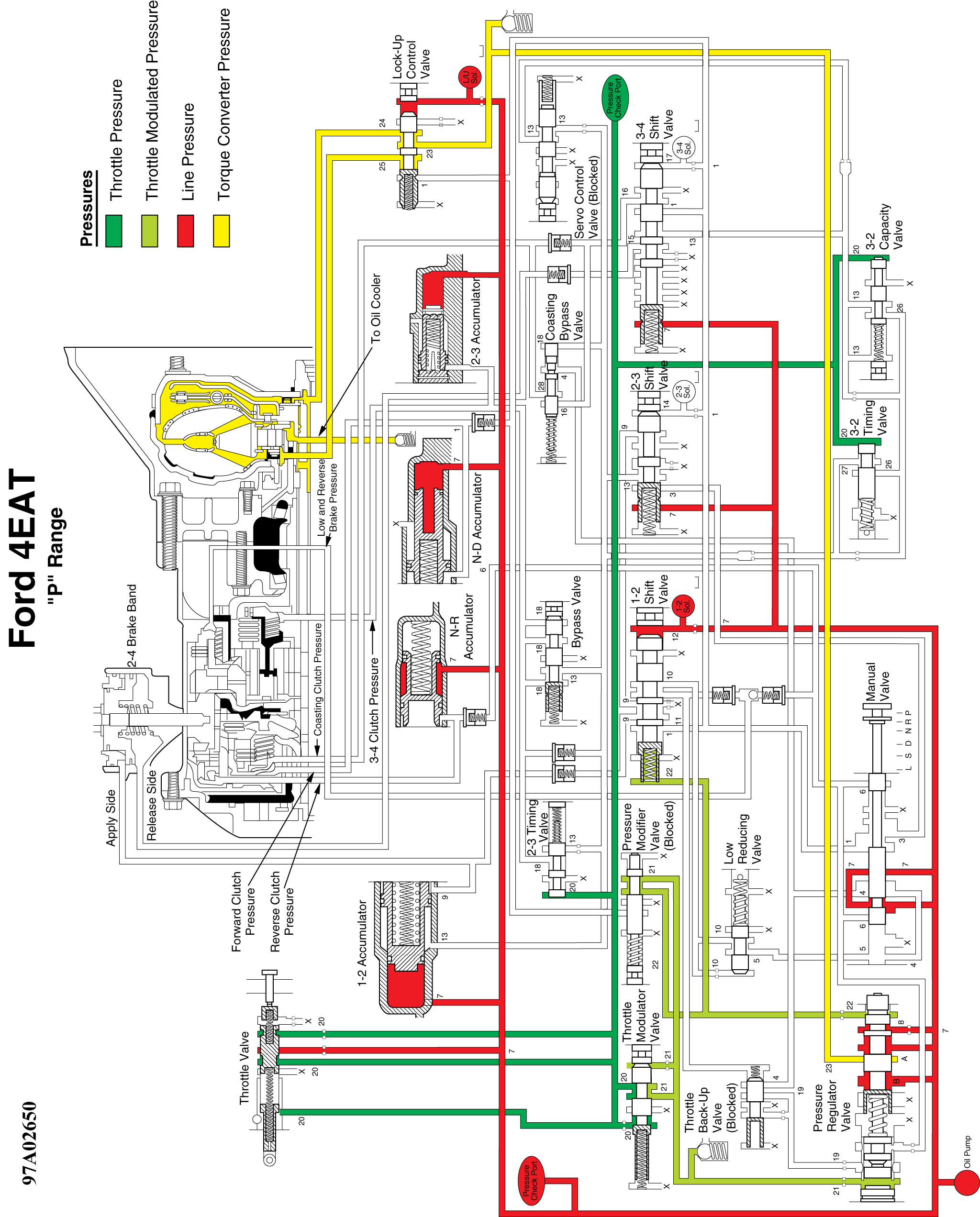

Fig 1: "P" Range - Park

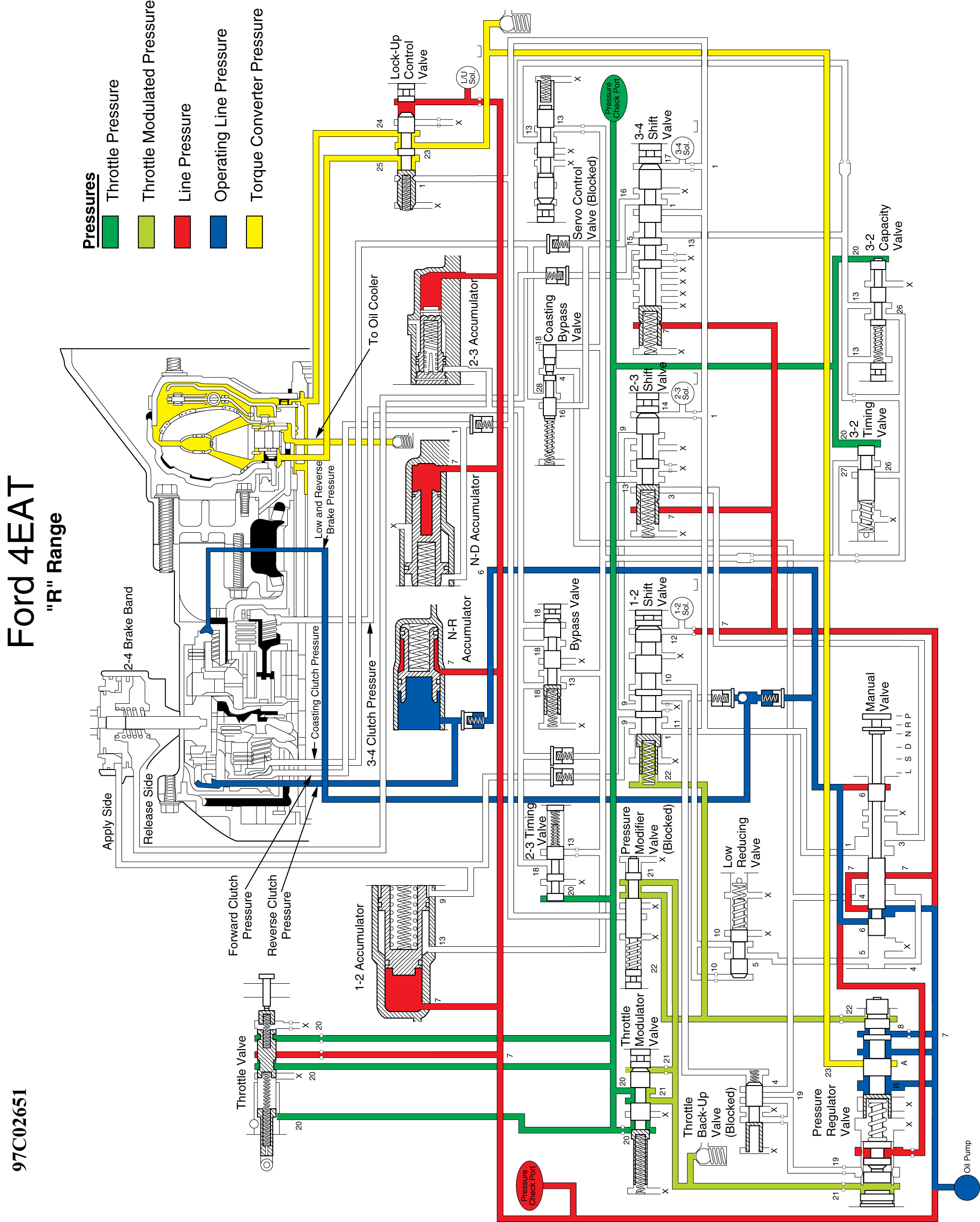

Fig 2: "R" Range - Reverse

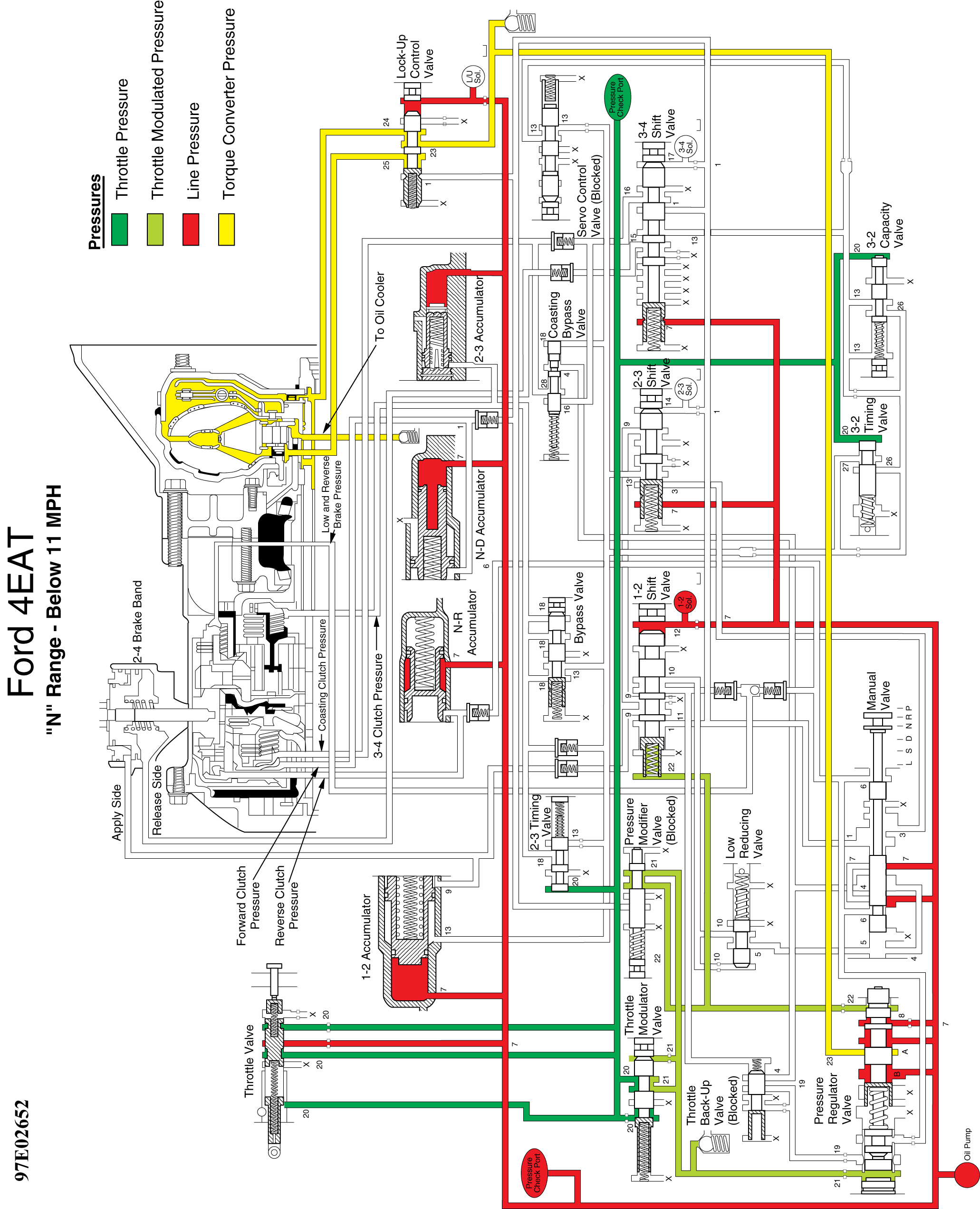

Fig 3: "N" Range - Neutral (Below 11 MPH)

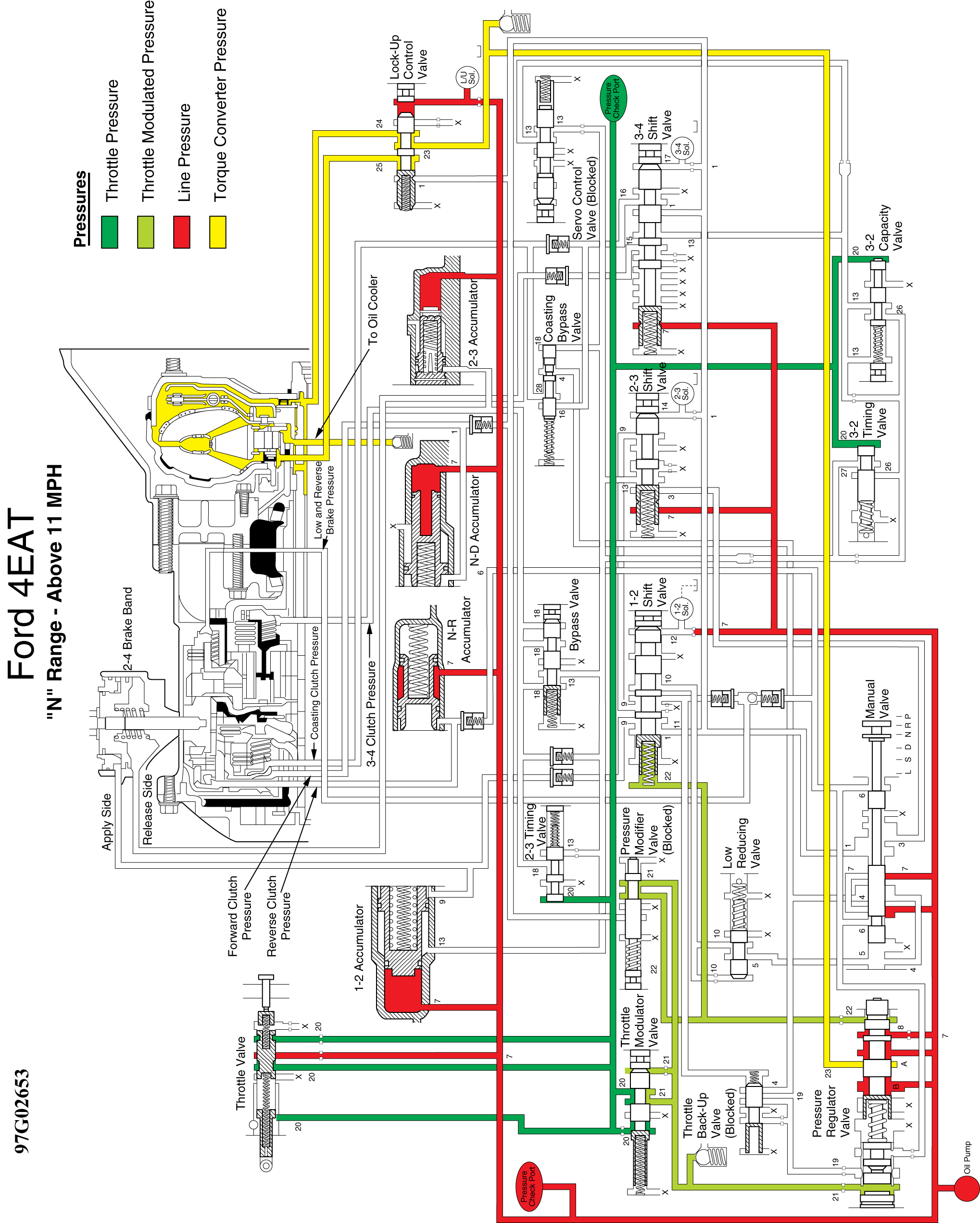

Fig 4: "N" Range - Neutral (Above 11 MPH)

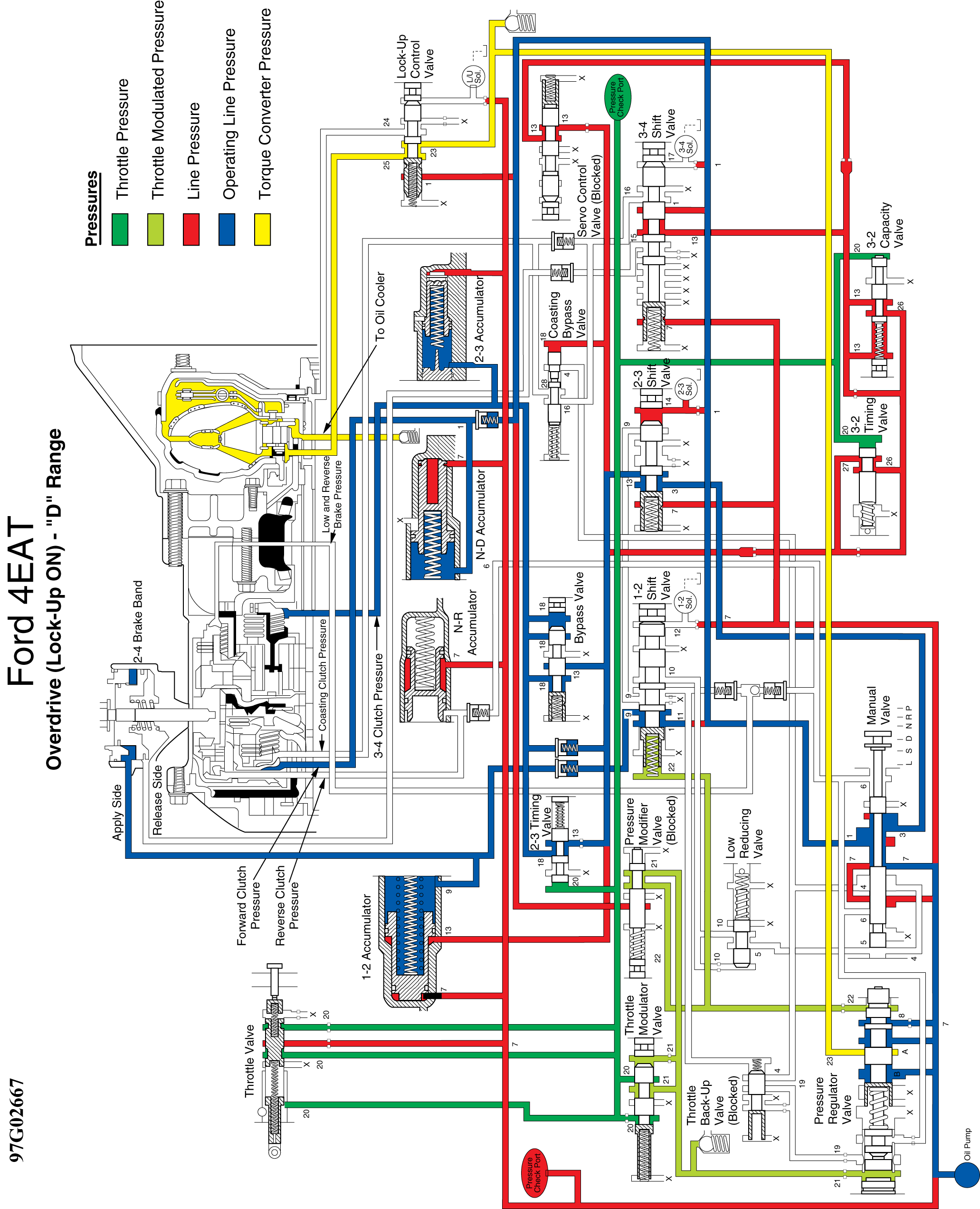

Fig 5: "D" Range - Overdrive (Lock-Up On)

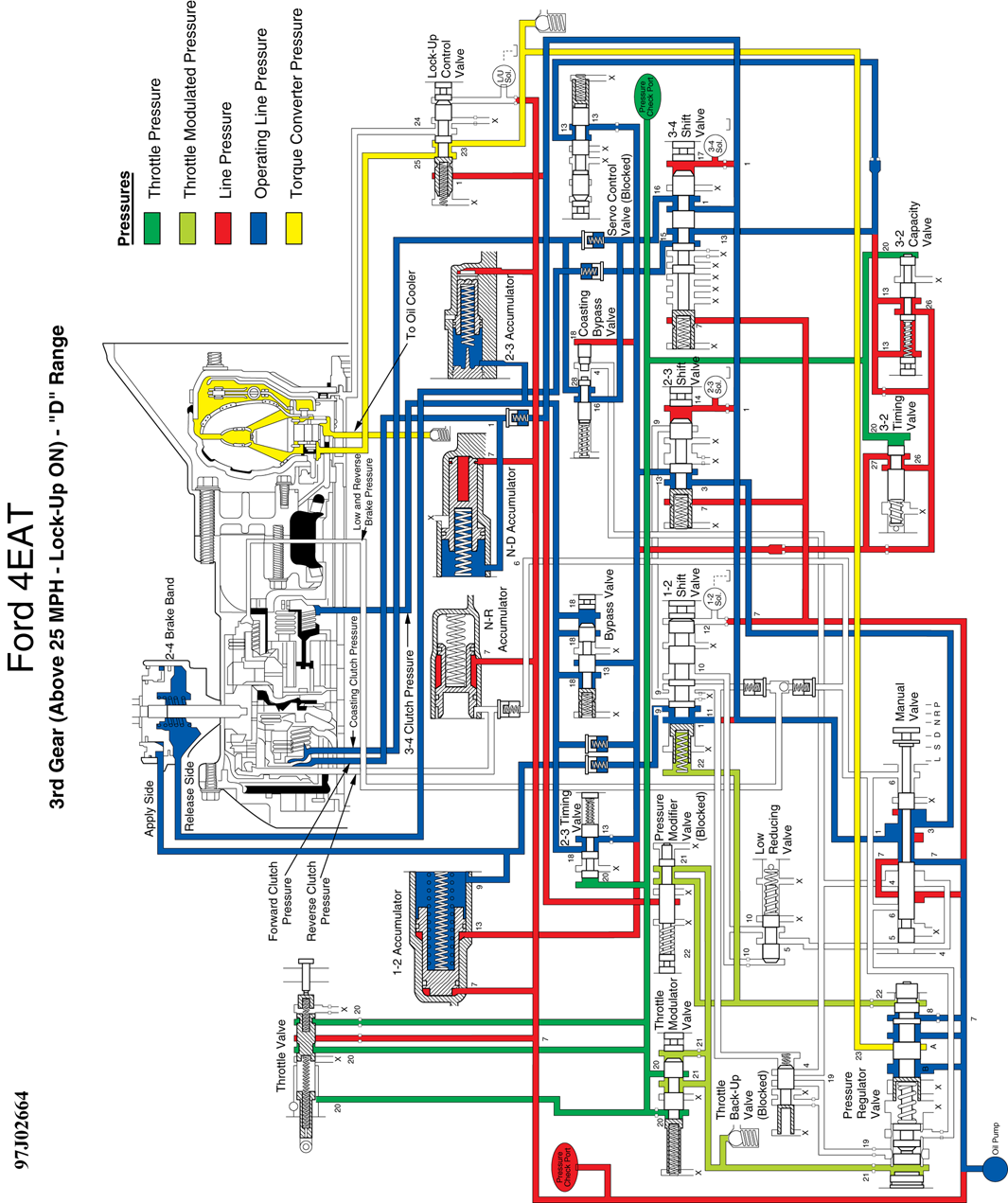

Fig 6: "D" Range - 3rd Gear (Lock-Up On - Above 25 MPH)

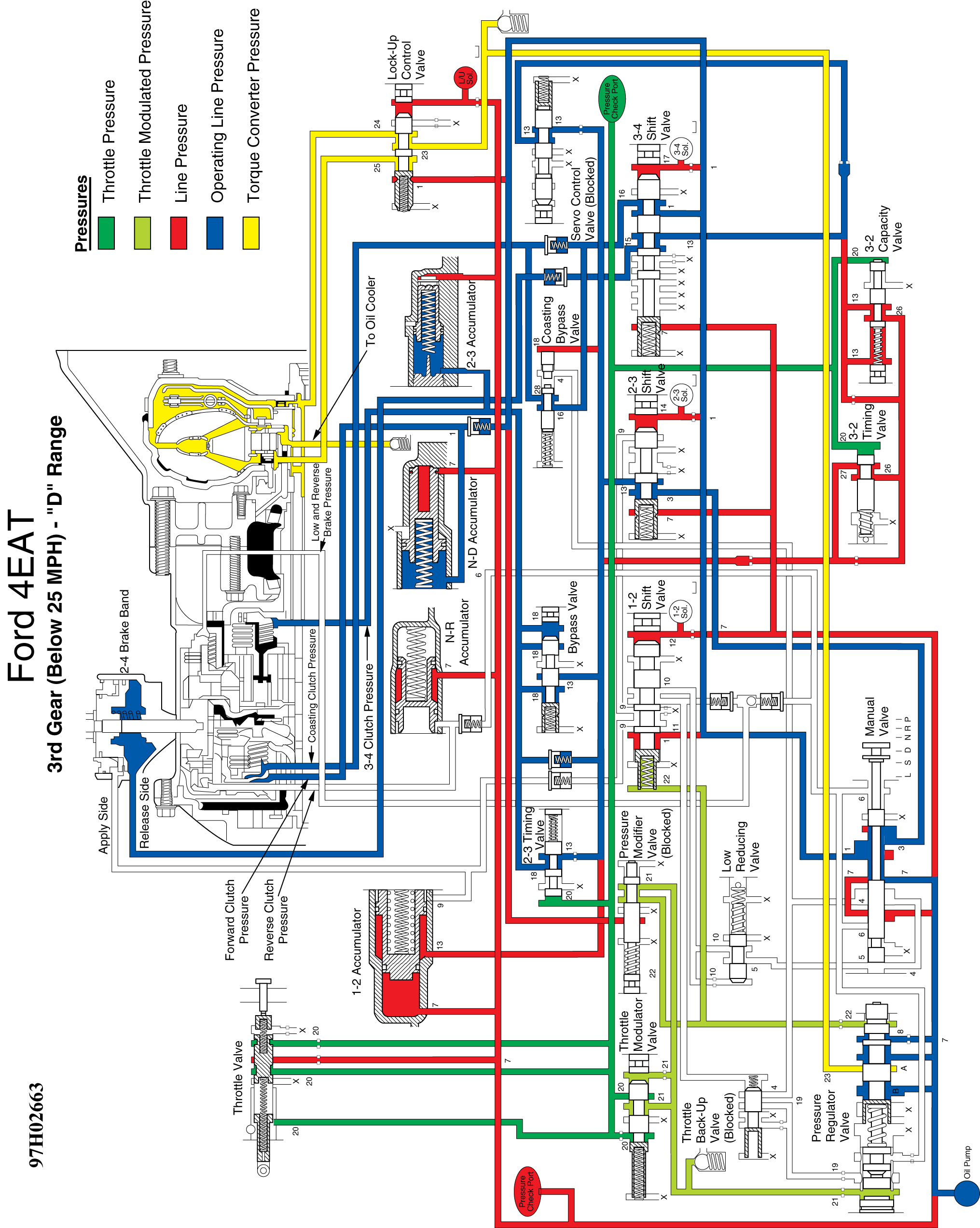

Fig 7: "D" Range - 3rd Gear (Below 25 MPH)

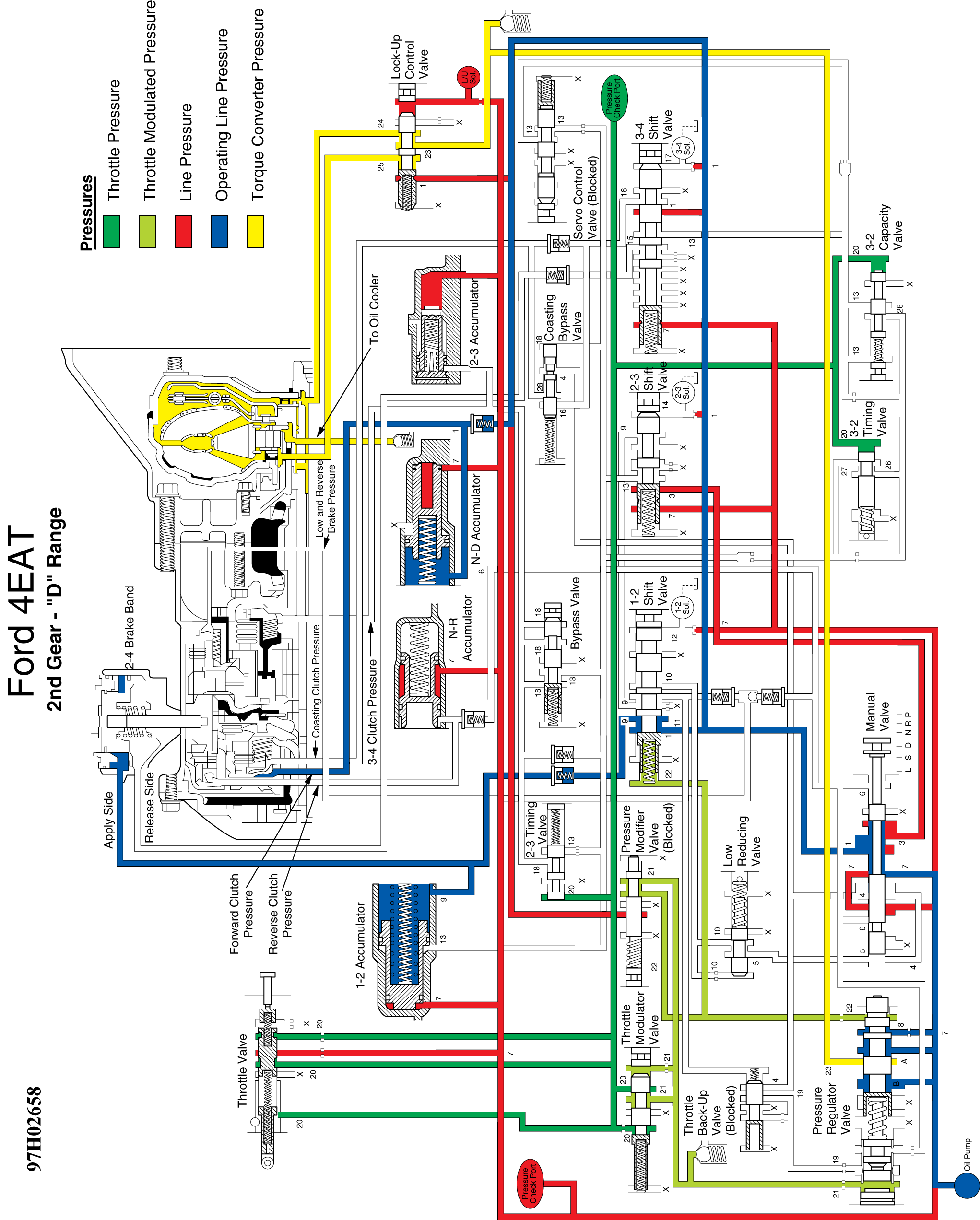

Fig 8: "D" Range - 2nd Gear

Fig 9: "D" Range - 1st Gear

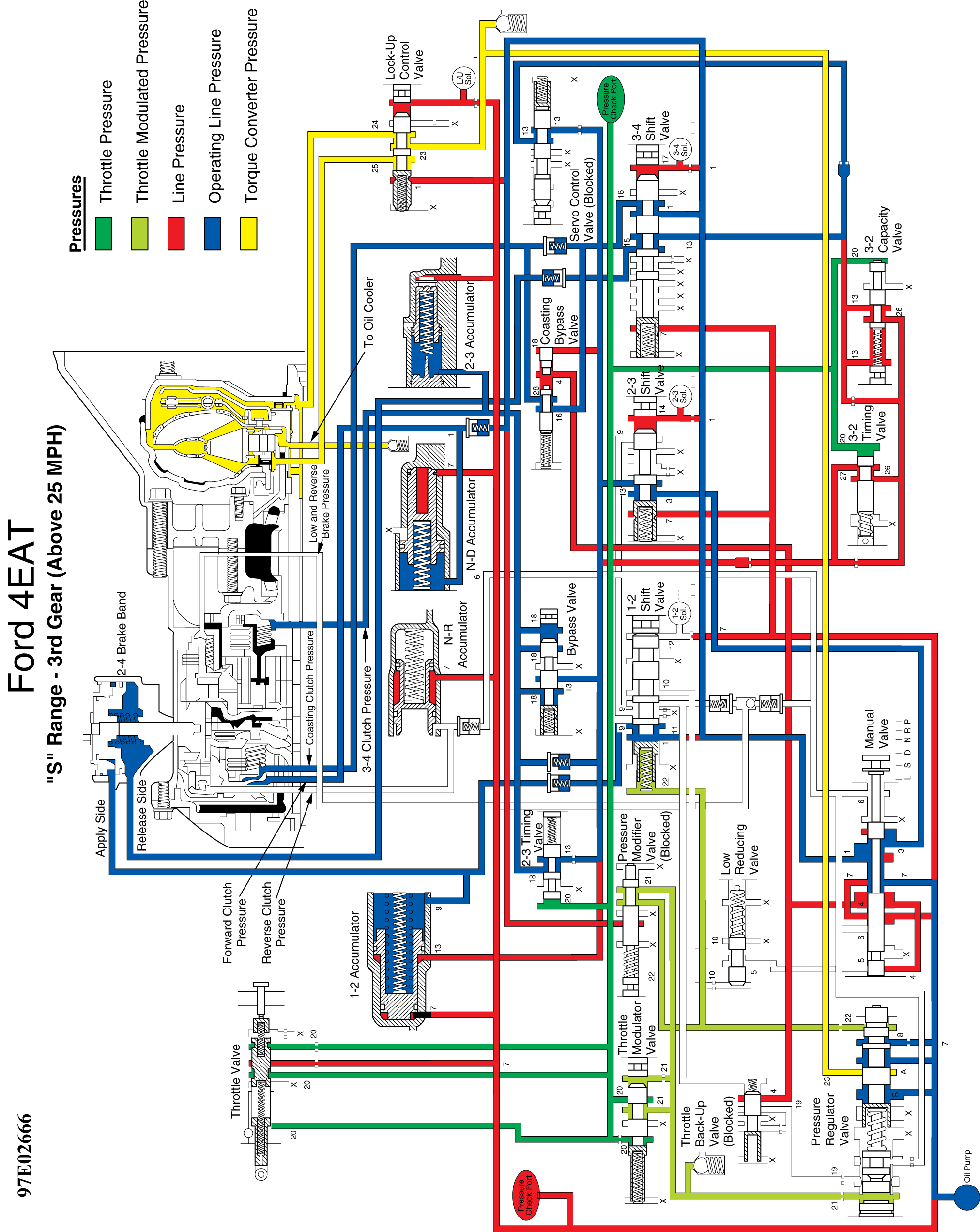

Fig 10: "S" Range - 3rd Gear (Above 25 MPH)

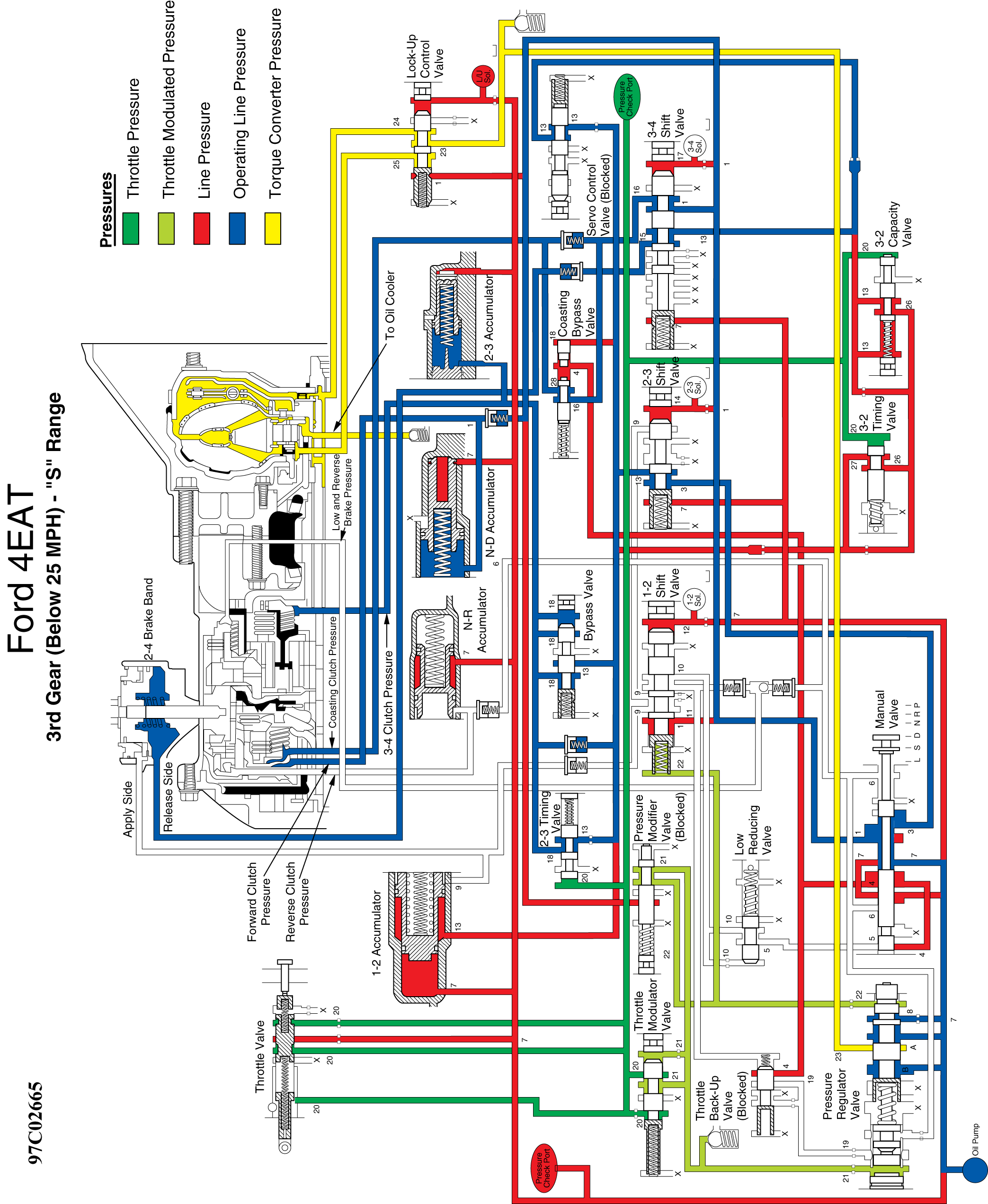

Fig 11: "S" Range - 3rd Gear (Below 25 MPH)

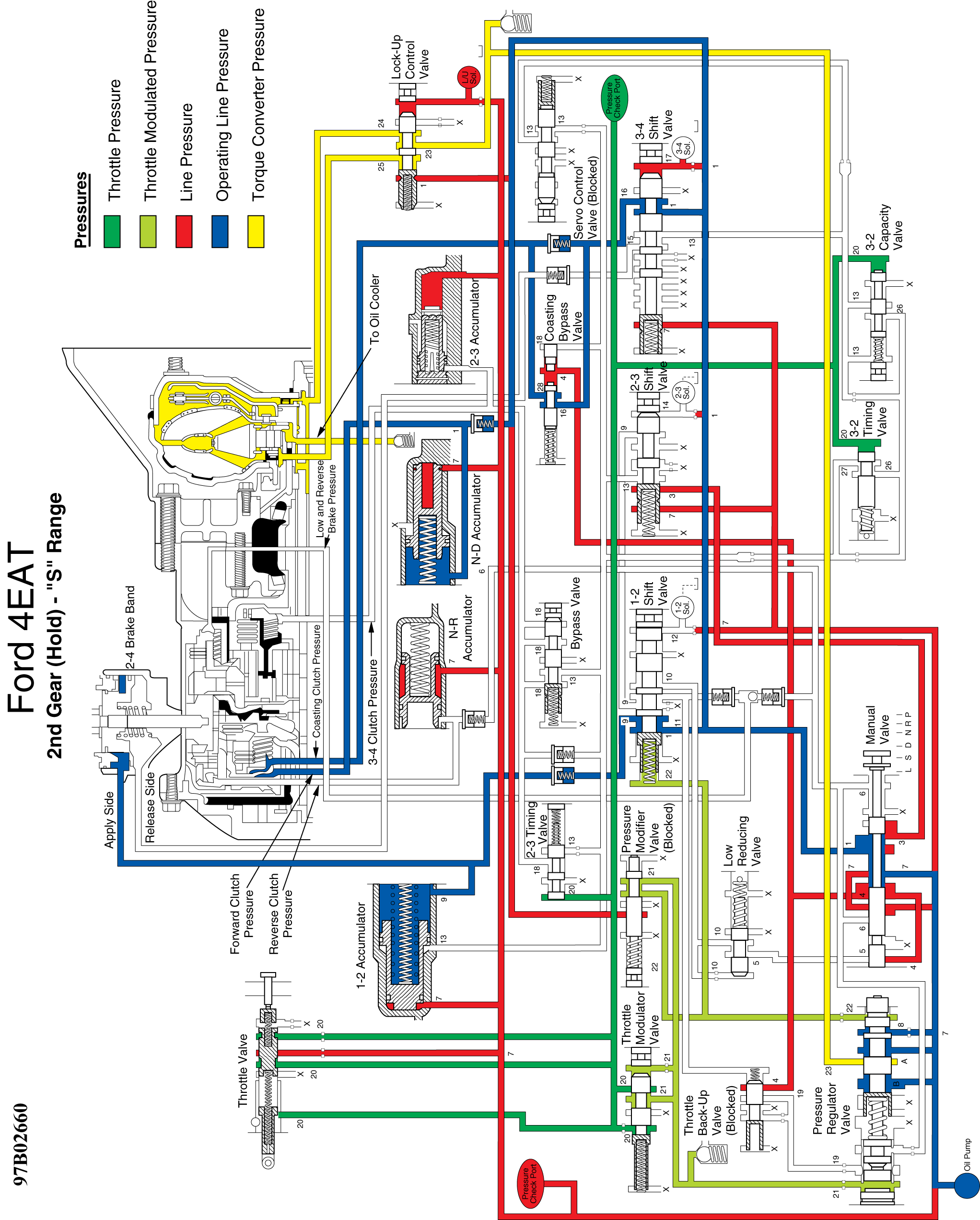

Fig 12: "S" Range - 2nd Gear (Hold)

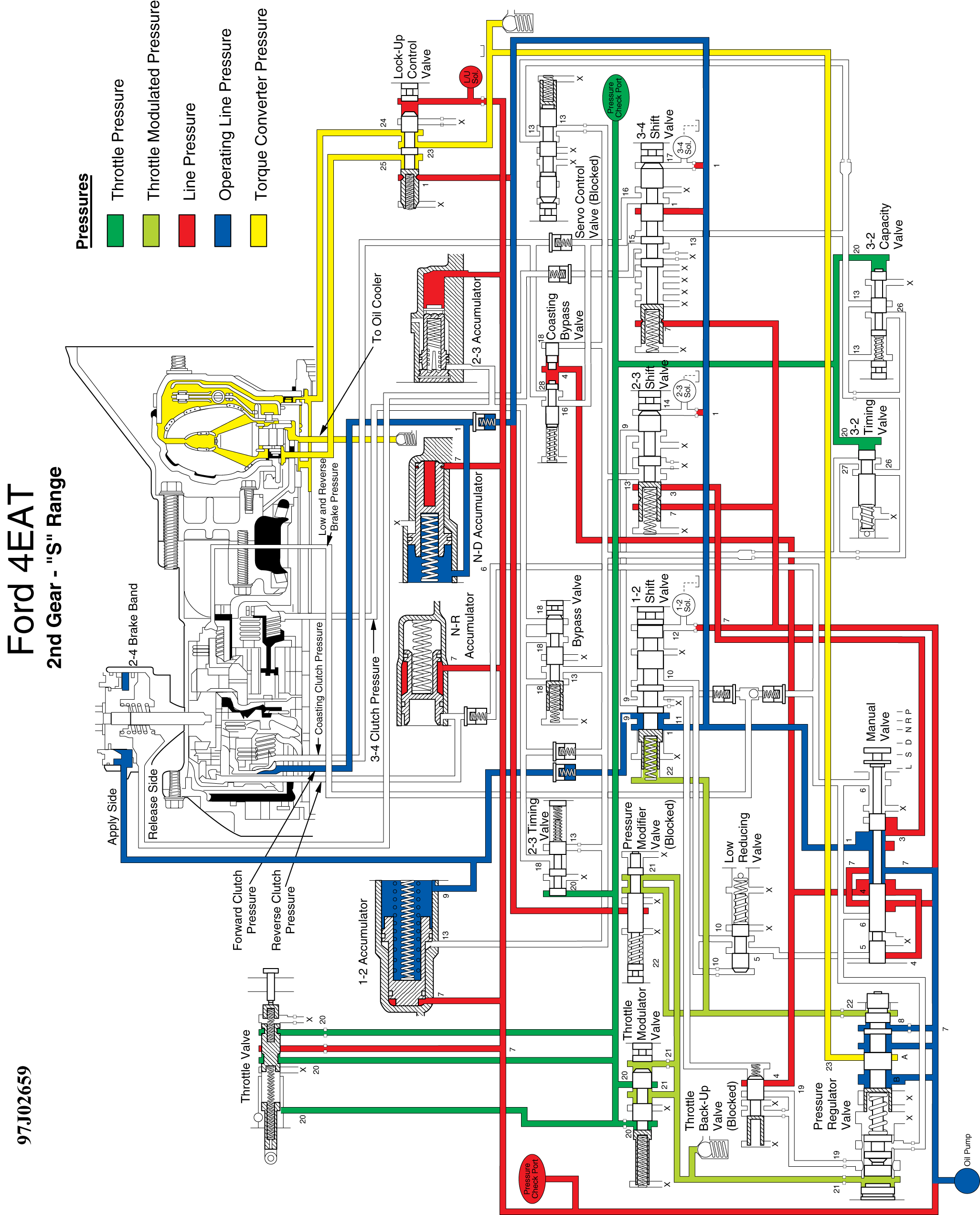

Fig 13: "S" Range - 2nd Gear

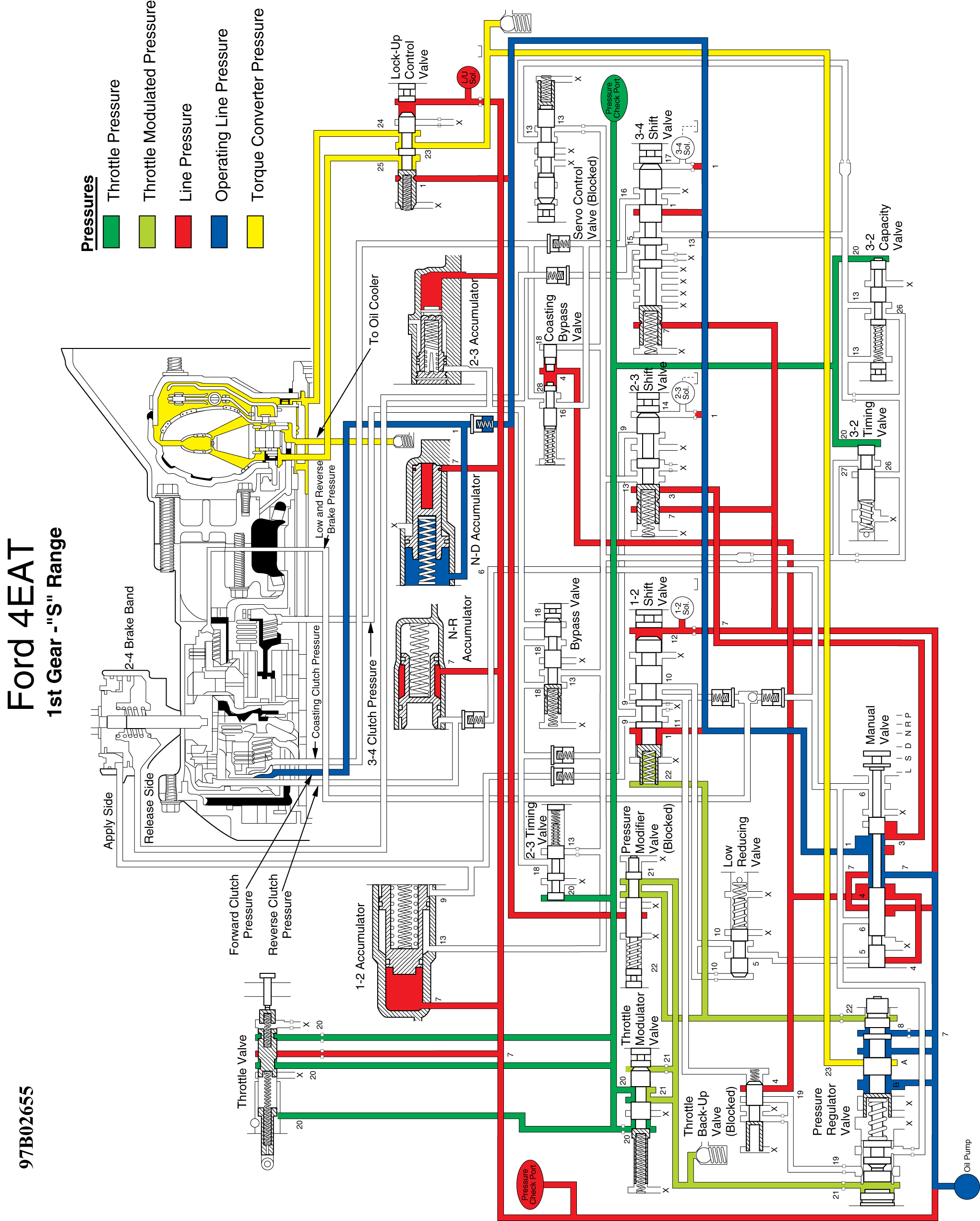

Fig 14: "S" Range - 1st Gear

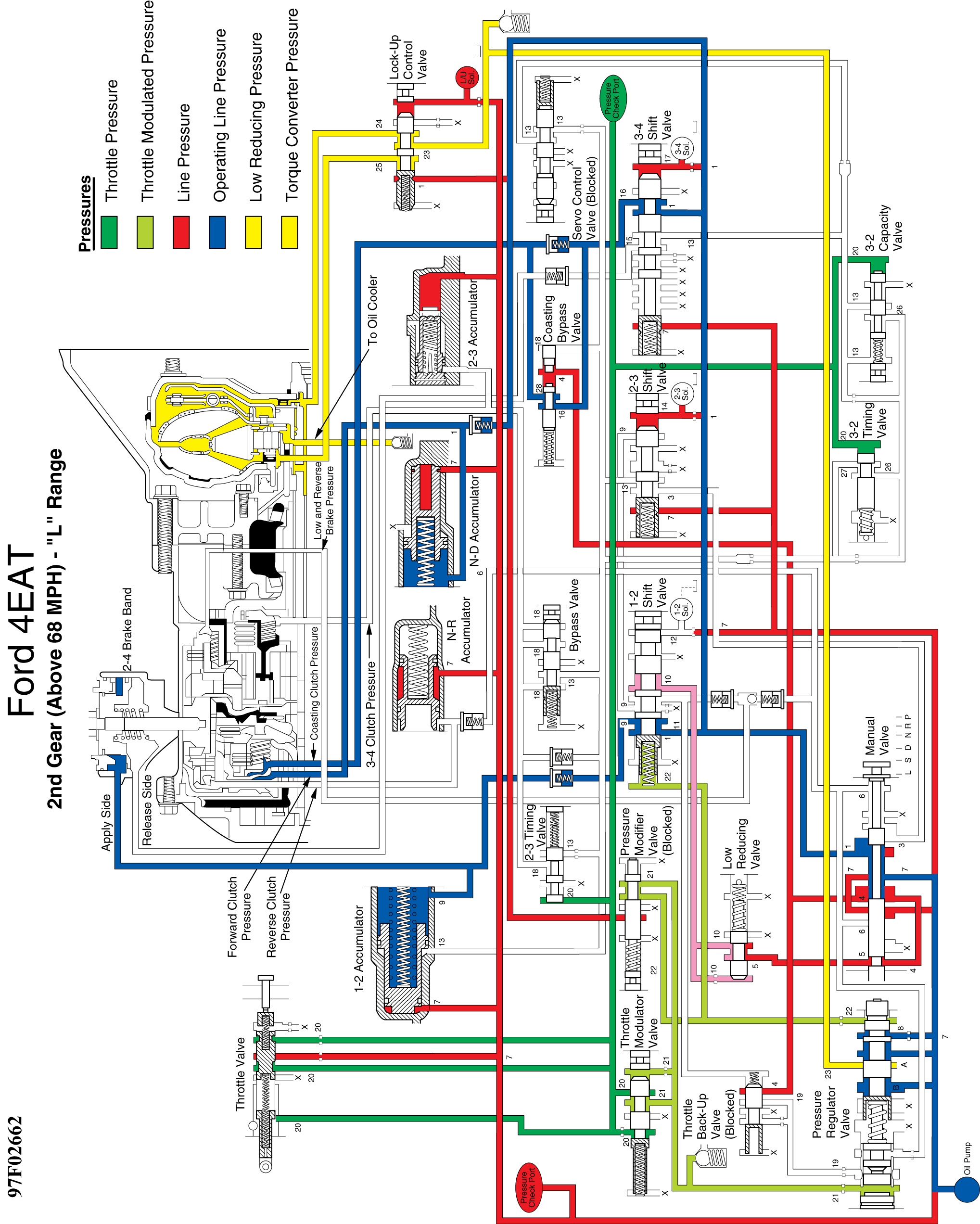

Fig 15: "L" Range - 2nd Gear (Above 68 MPH)

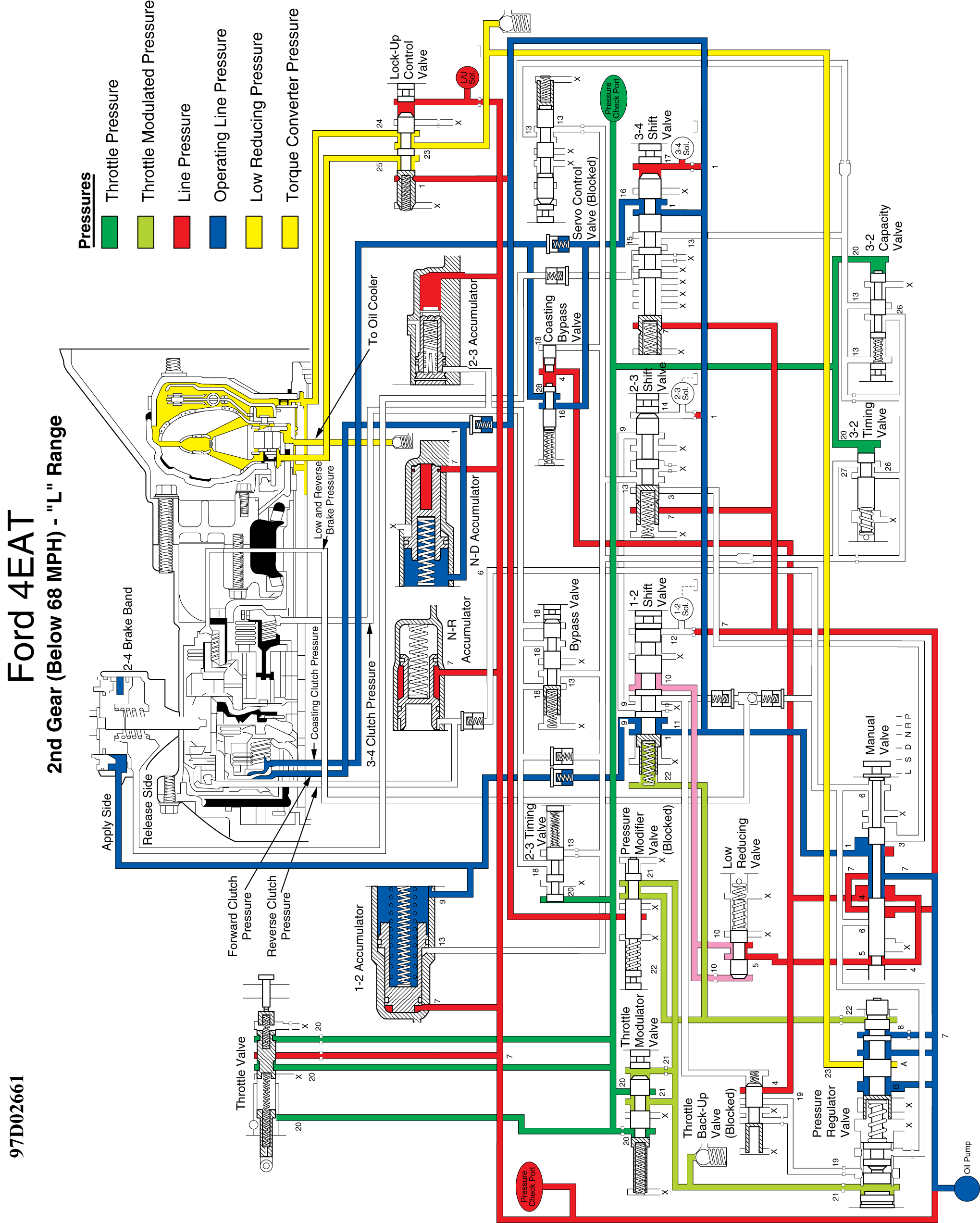

Fig 16: "L" Range - 2nd Gear (Below 68 MPH)

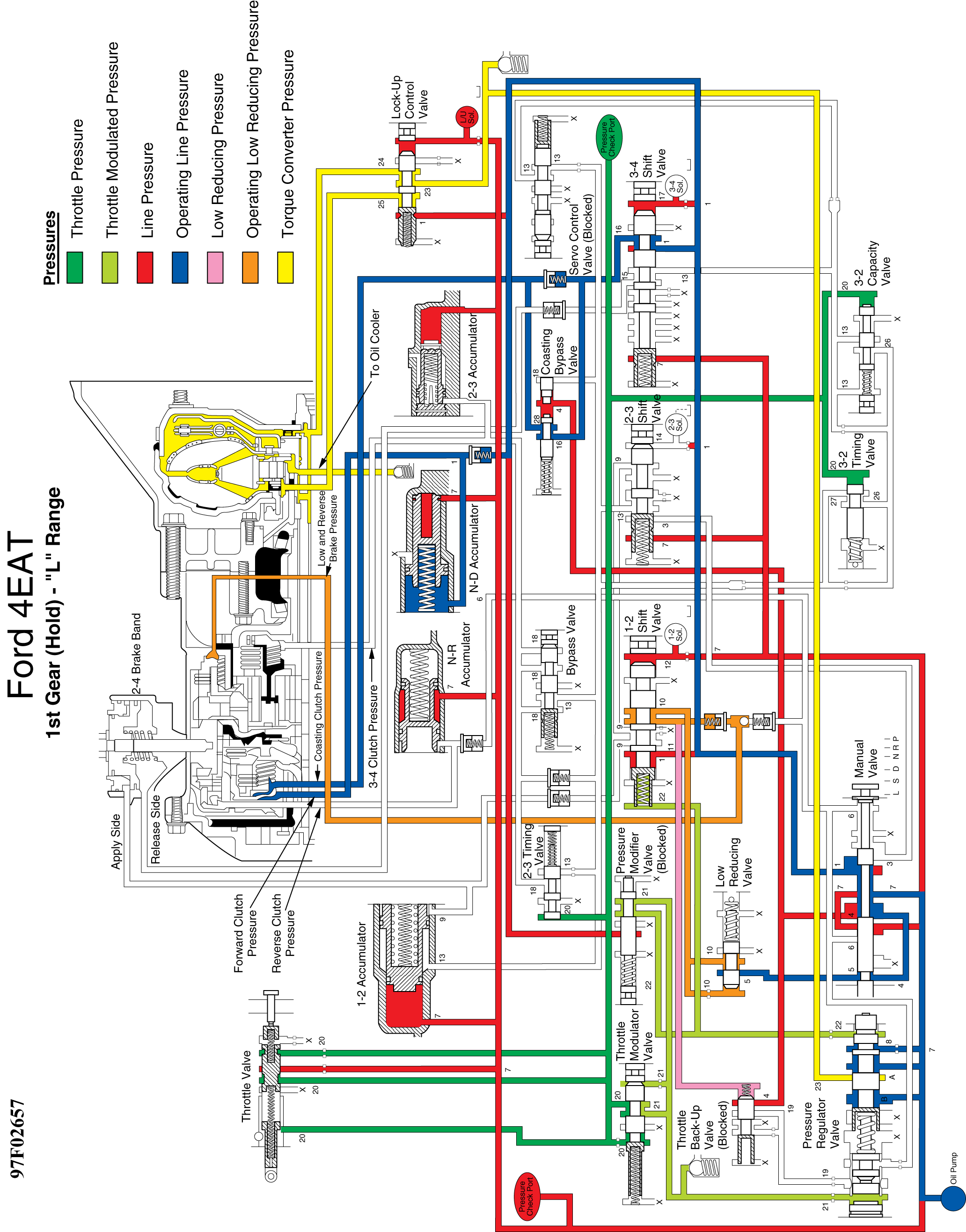

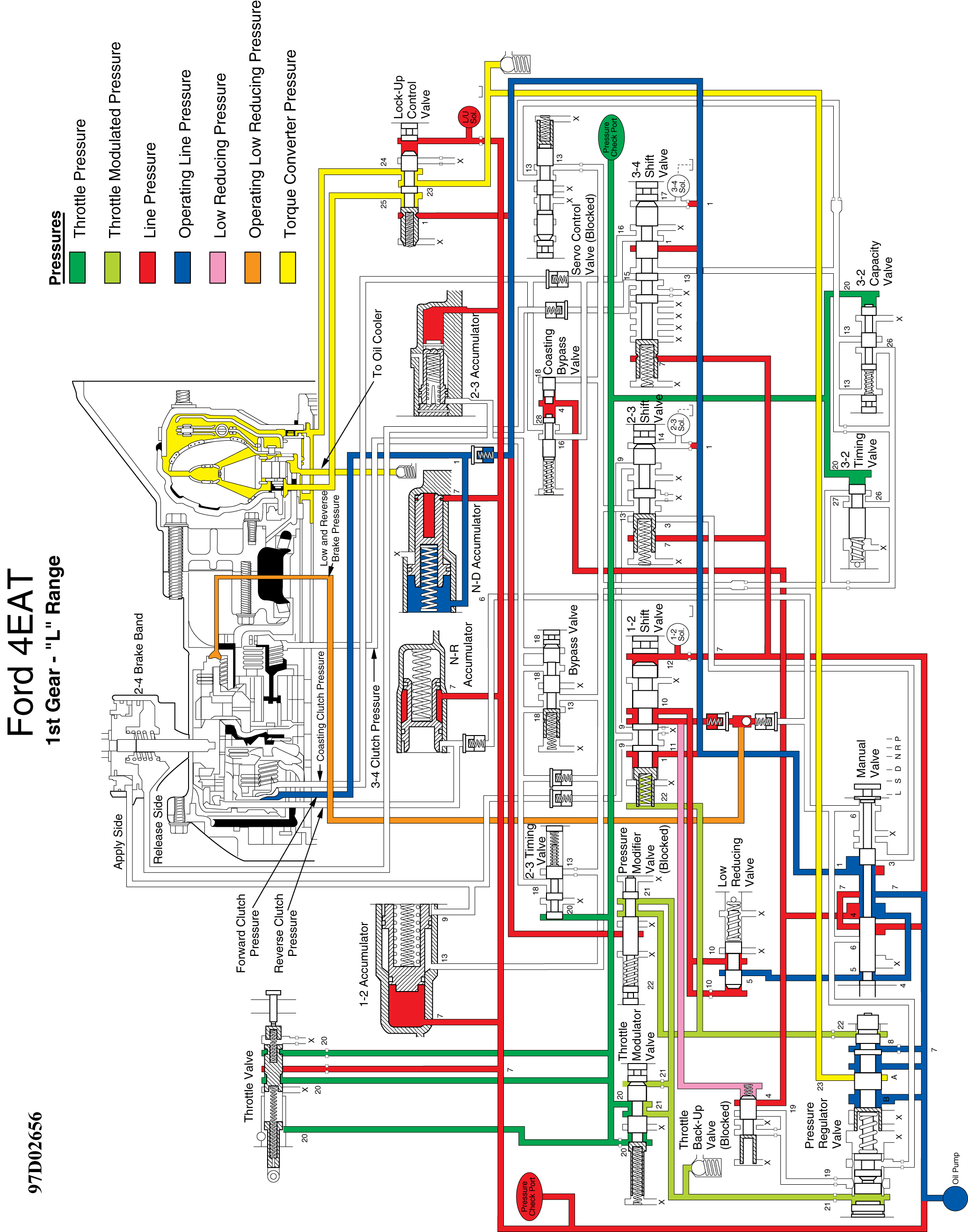

Fig 17: "L" Range - 1st Gear (Hold)
