Rear Brake Shoes

For overhaul use exploded view. See Fig 1

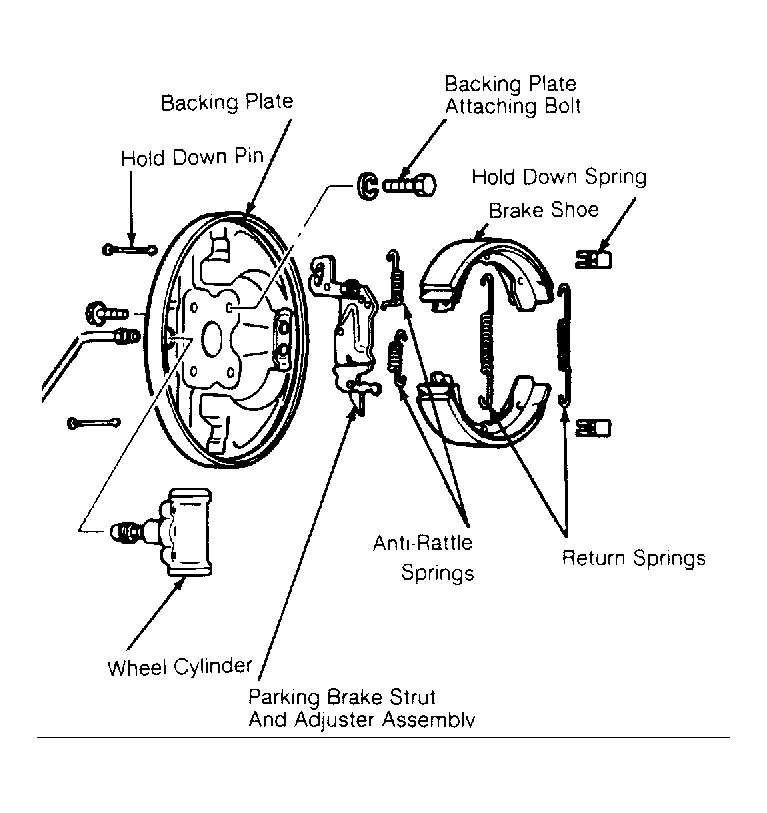

Fig 1: Exploded View of Brake Assembly
G106774Courtesy of FORD MOTOR CO.
