Probe LX, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel - Analog
>>
Wiring Diagrams
Wiring Diagrams
COMPONENT LOCATIONS
Component
Figure No. (Location)
INSTRUMENT CLUSTER (ANALOG)
21 (C-E 56-58)
INSTRUMENT PANEL DIMMER SWITCH
20 (B 51)

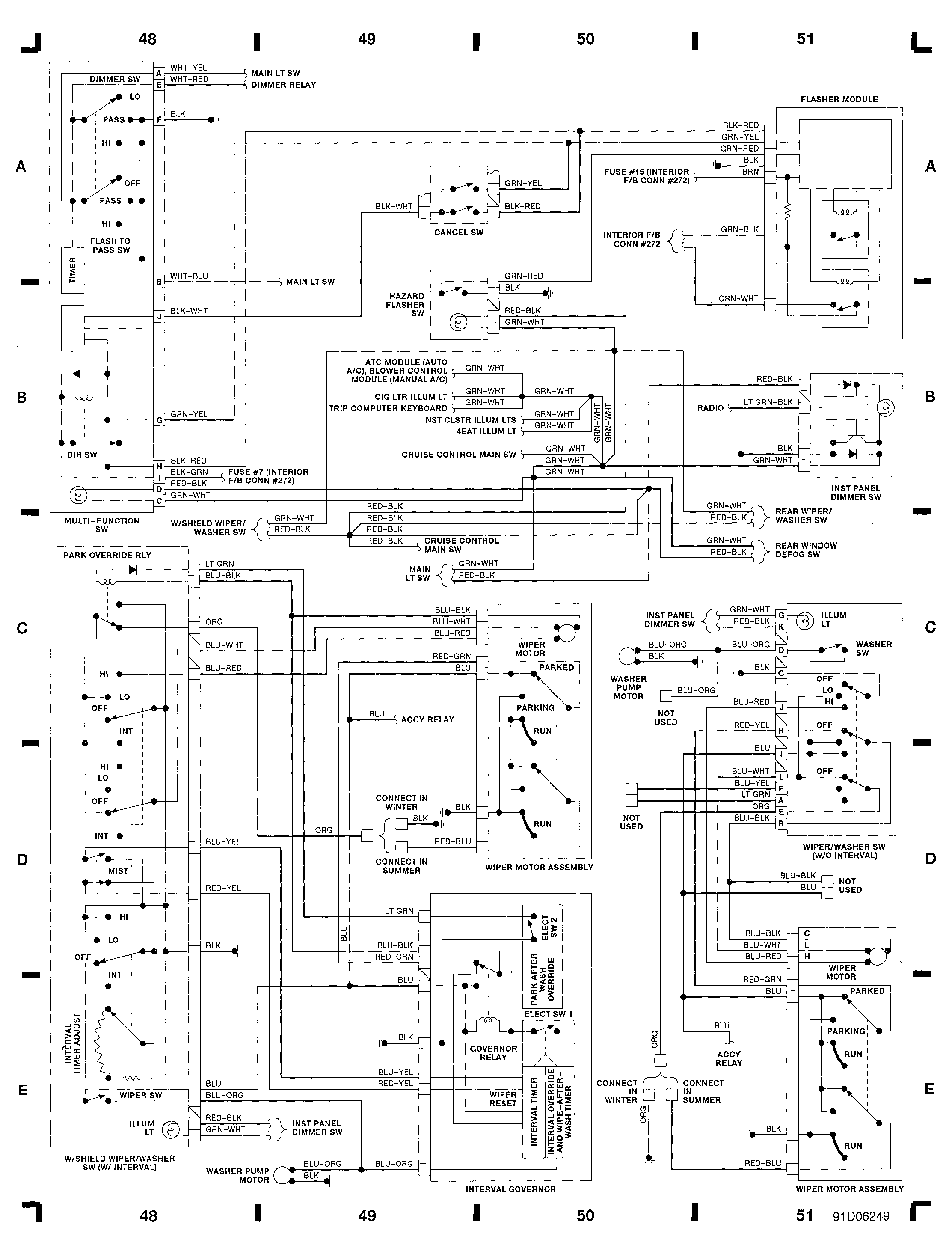

Fig 1: Wiper System, Multi-Function Switch (Grid 48-51)

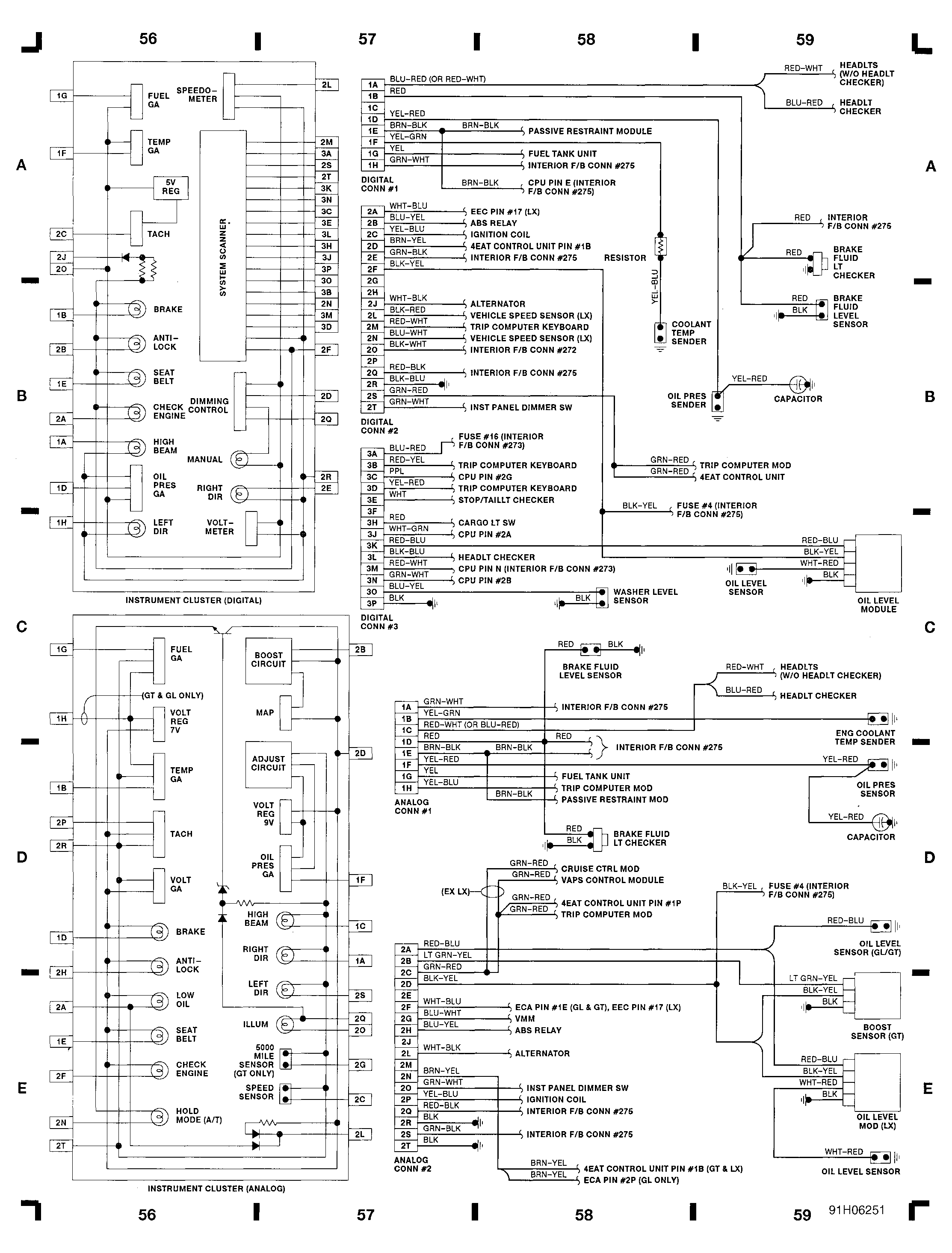

Fig 2: Instrument Cluster (Grid 56-59)
