Instrument Panel

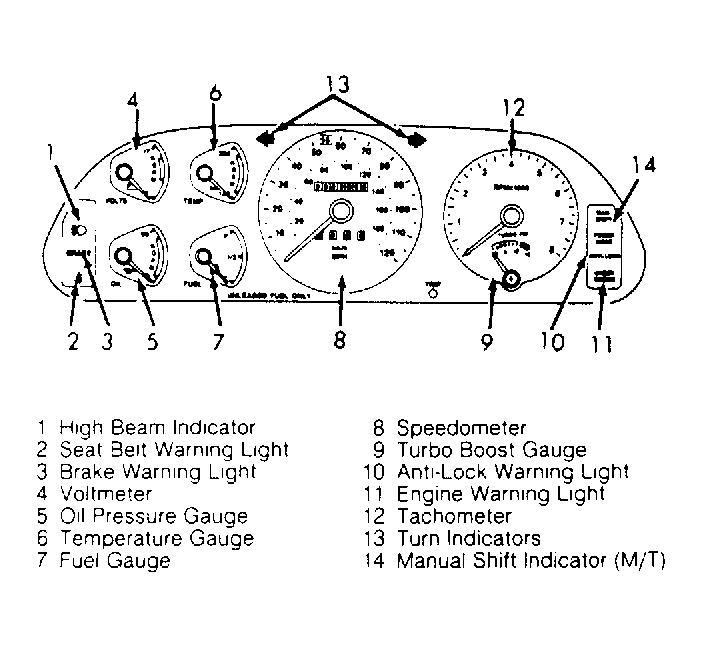

Instrument panel includes several analog gauges. See Fig 1 . Turbo boost gauge displays positive manifold pressure under boost. Fuel gauge divisions are full, 1/2 and empty. Oil pressure gauge indicates normal operating range. Speedometer includes mechanical odometer and trip odometer. Tachometer ranges from 0-8000 RPM, temperature gauge from 180-260 degrees, and voltmeter from 9-17 volts.
Instrument illumination is activated by turning on parking lights or headlights. Brightness of the instrument panel illumination lights is controlled by the panel dimmer switch.
