Wiring Diagrams

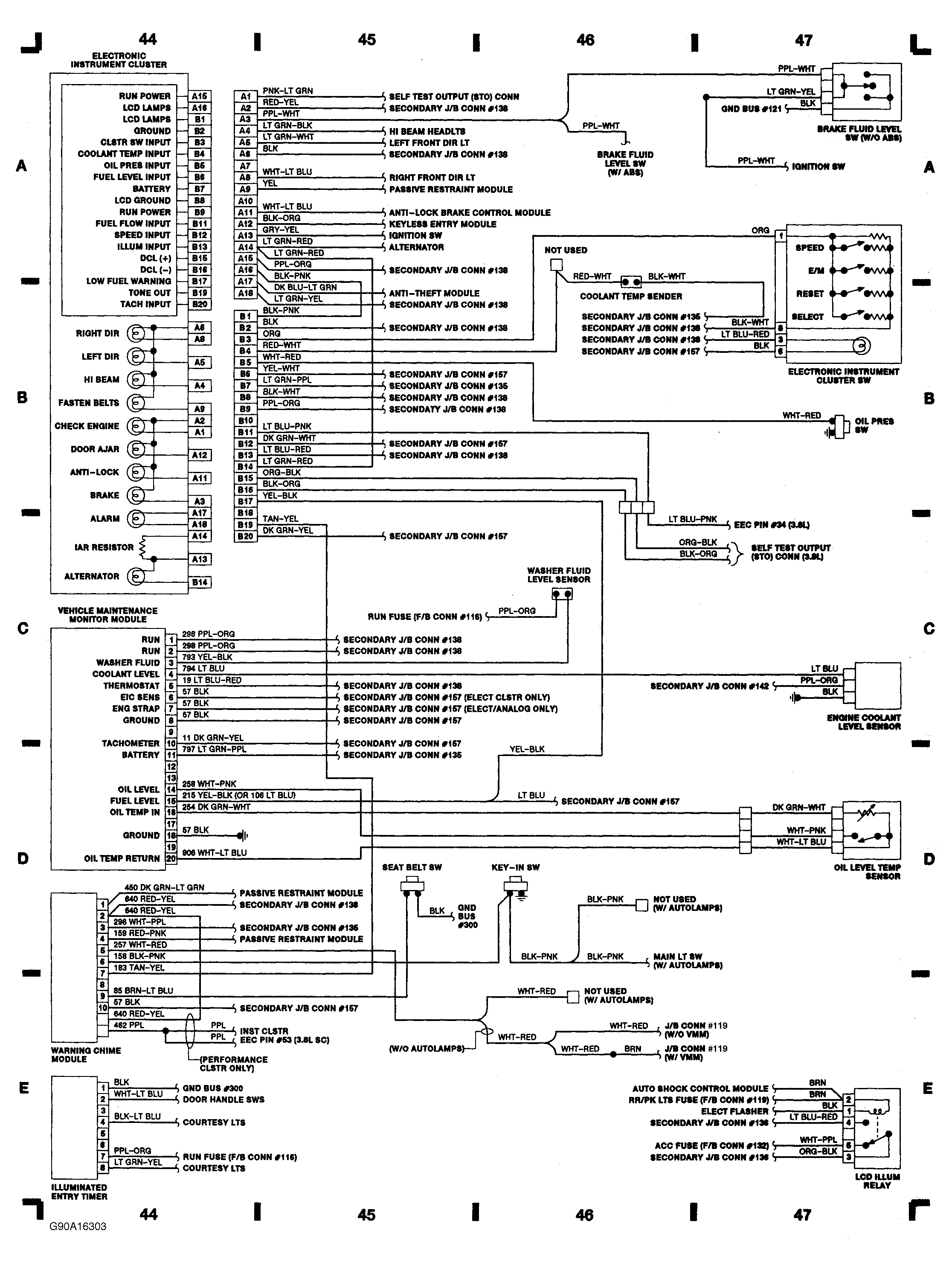

Fig 1: Electronic Instrument Cluster (EIC) Wiring Diagram (Cougar & Thunderbird)

G90A16303
