Oil Pressure Sender: Locations

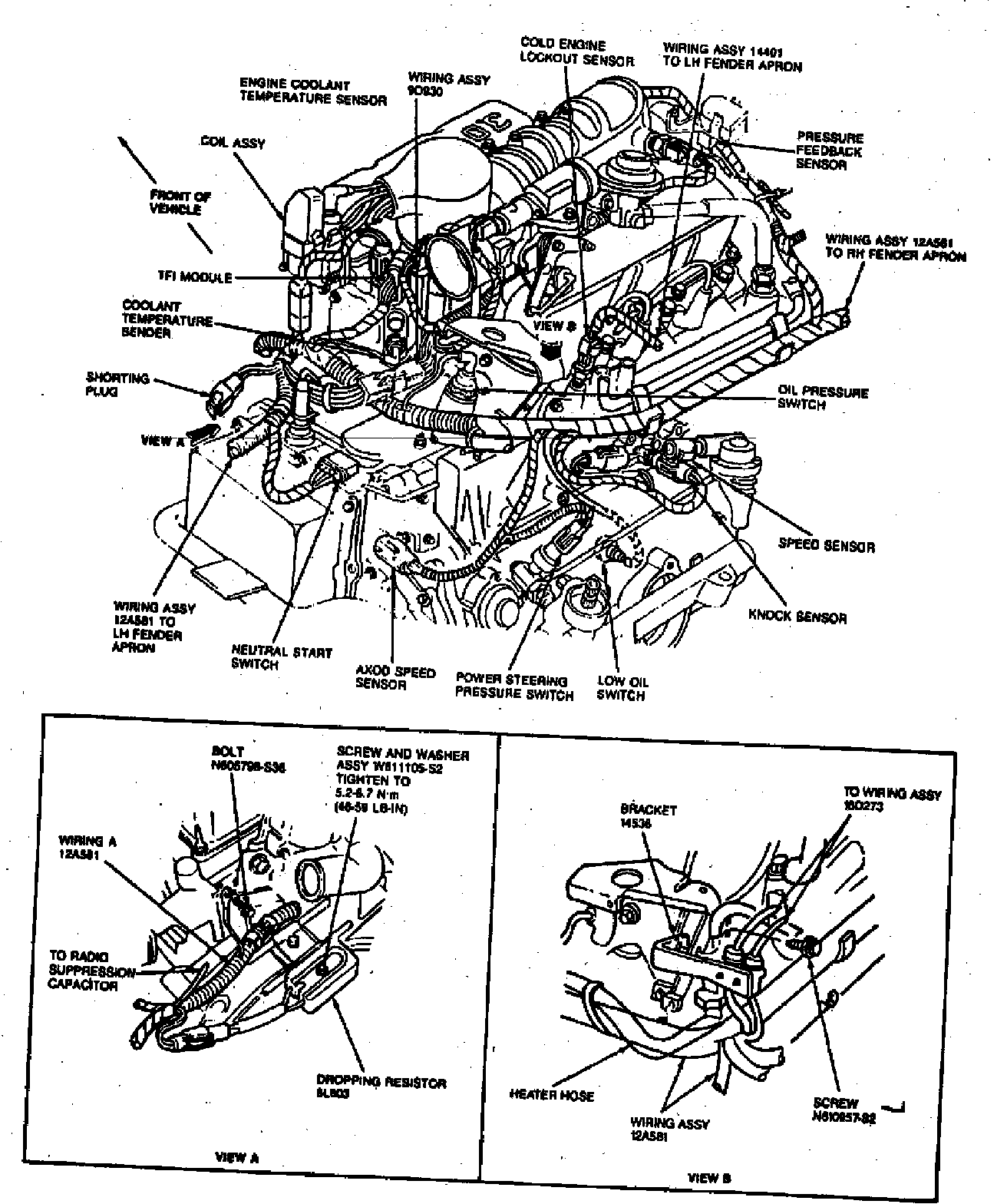

LH Side Of Engine.:




Engine Components.:




Center Front Of Engine

Applicable to: V6-182/3.0L
