System Diagram

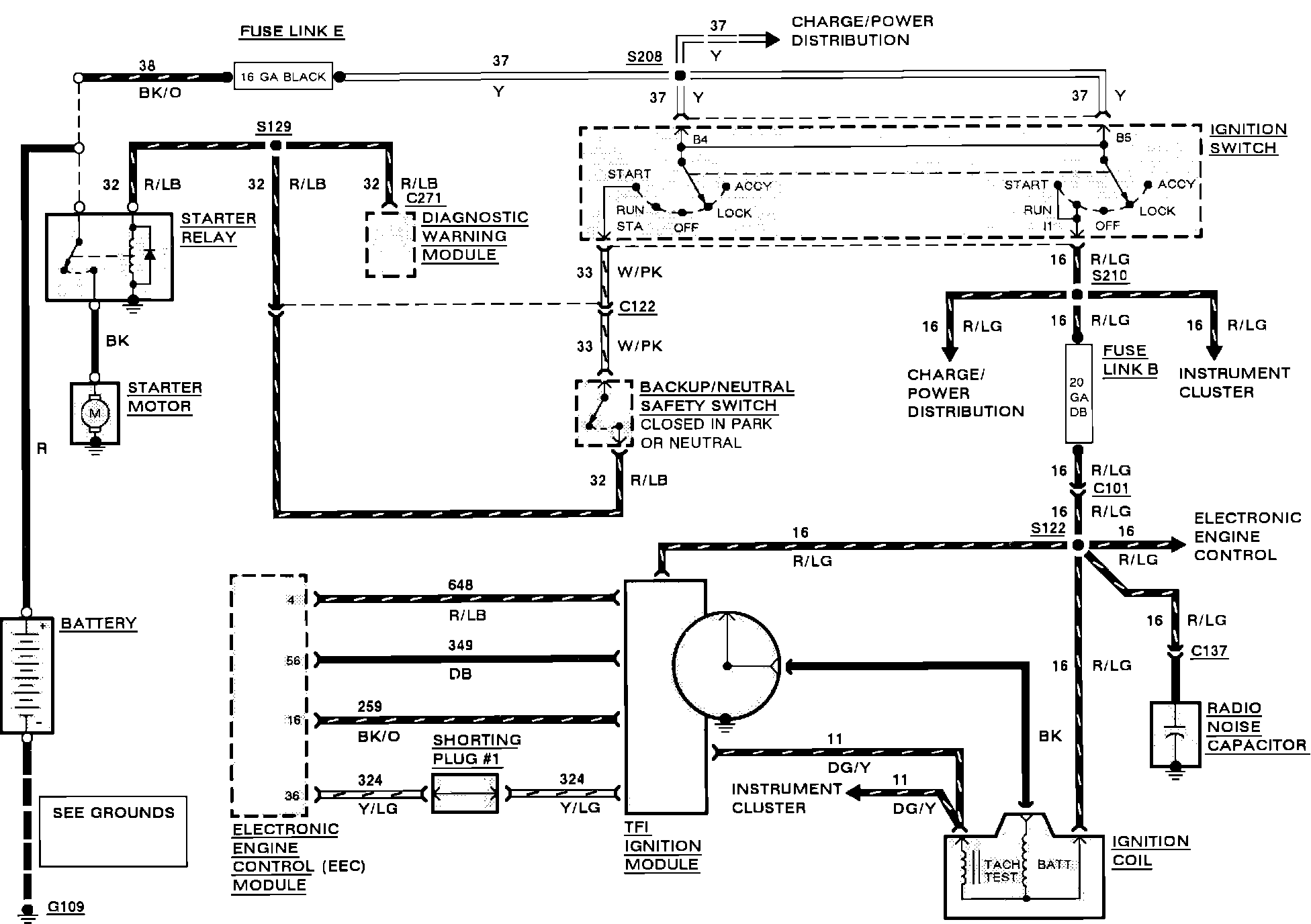

Ignition & Starting Except California Models:



Starting & Ignition Systems California Models:
