Home >> Ford >> 1990 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Part 1 of 3

Part 1 of 3

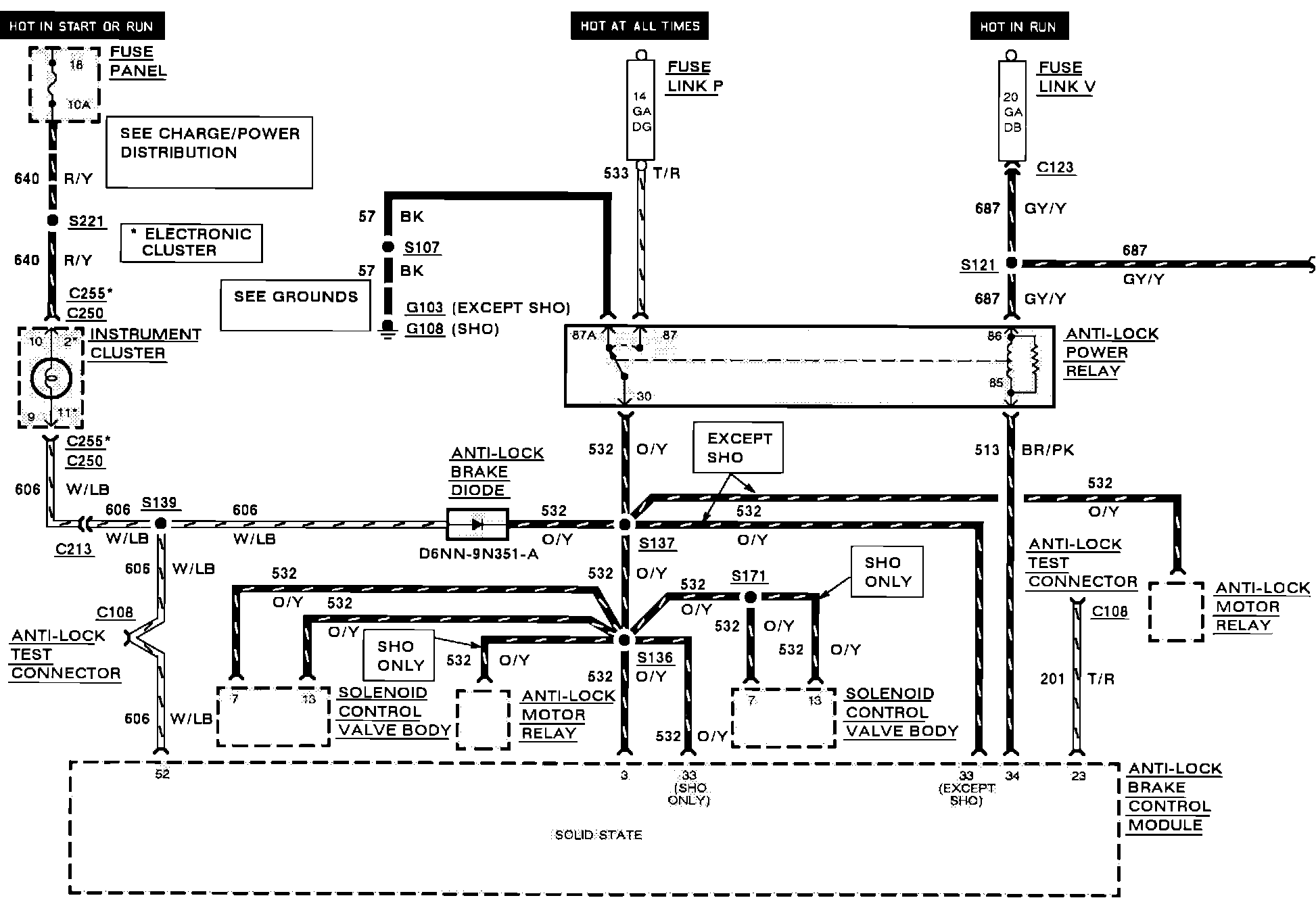

Anti-Lock Brakes:
