ABS Module Harness Connector Electrical Quick Check Sheet

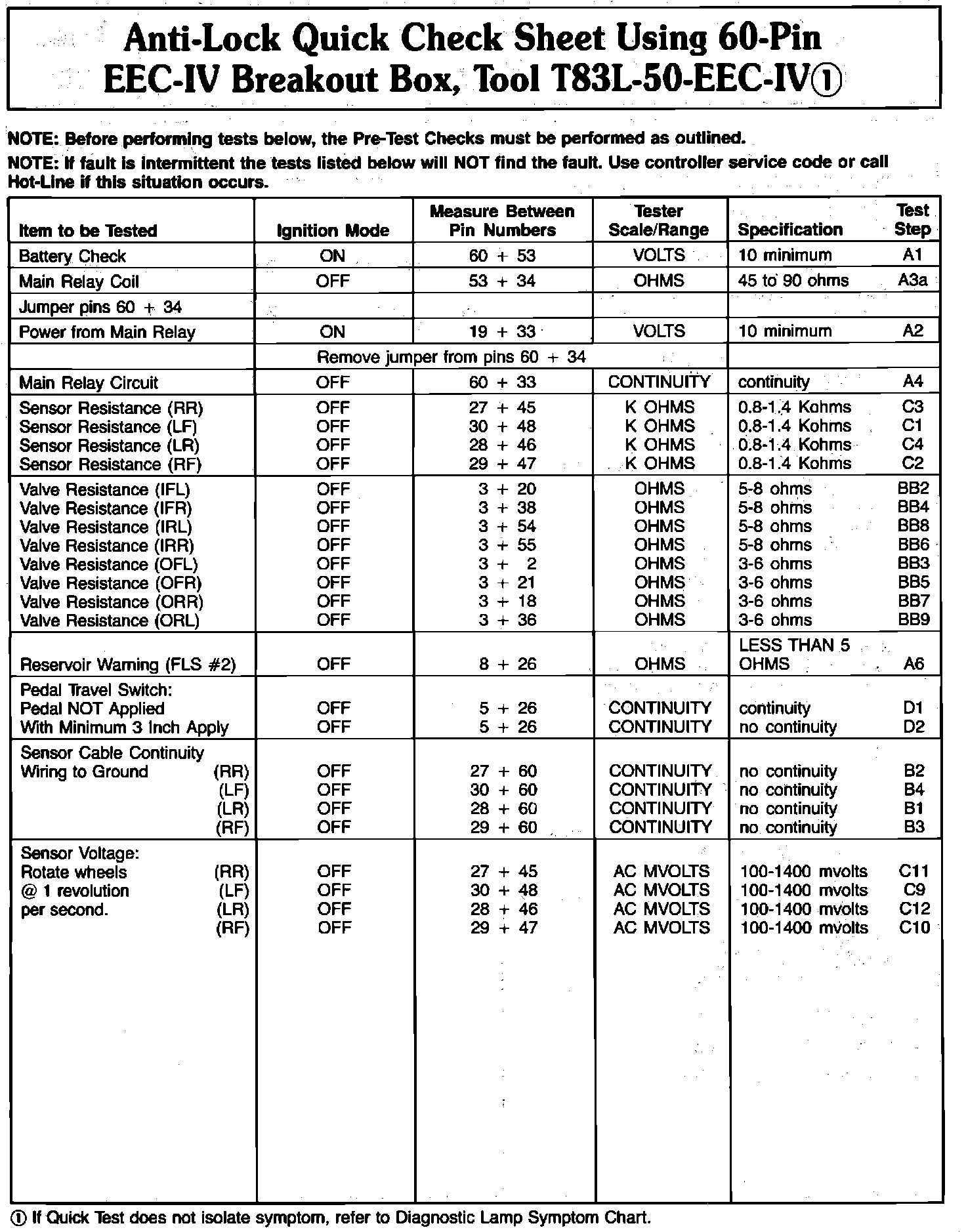

ABS Module Harness Connector Electrical Quick Check Sheet
