Quick Check

Turn ignition switch to OFF position. Disconnect harness connector near sensor. Turn ignition switch to RUN position. No warning should be displayed. Turn ignition switch to OFF position. Place jumper wire across signal and ground at harness connector. Turn ignition switch to RUN position. Warning light should be on.

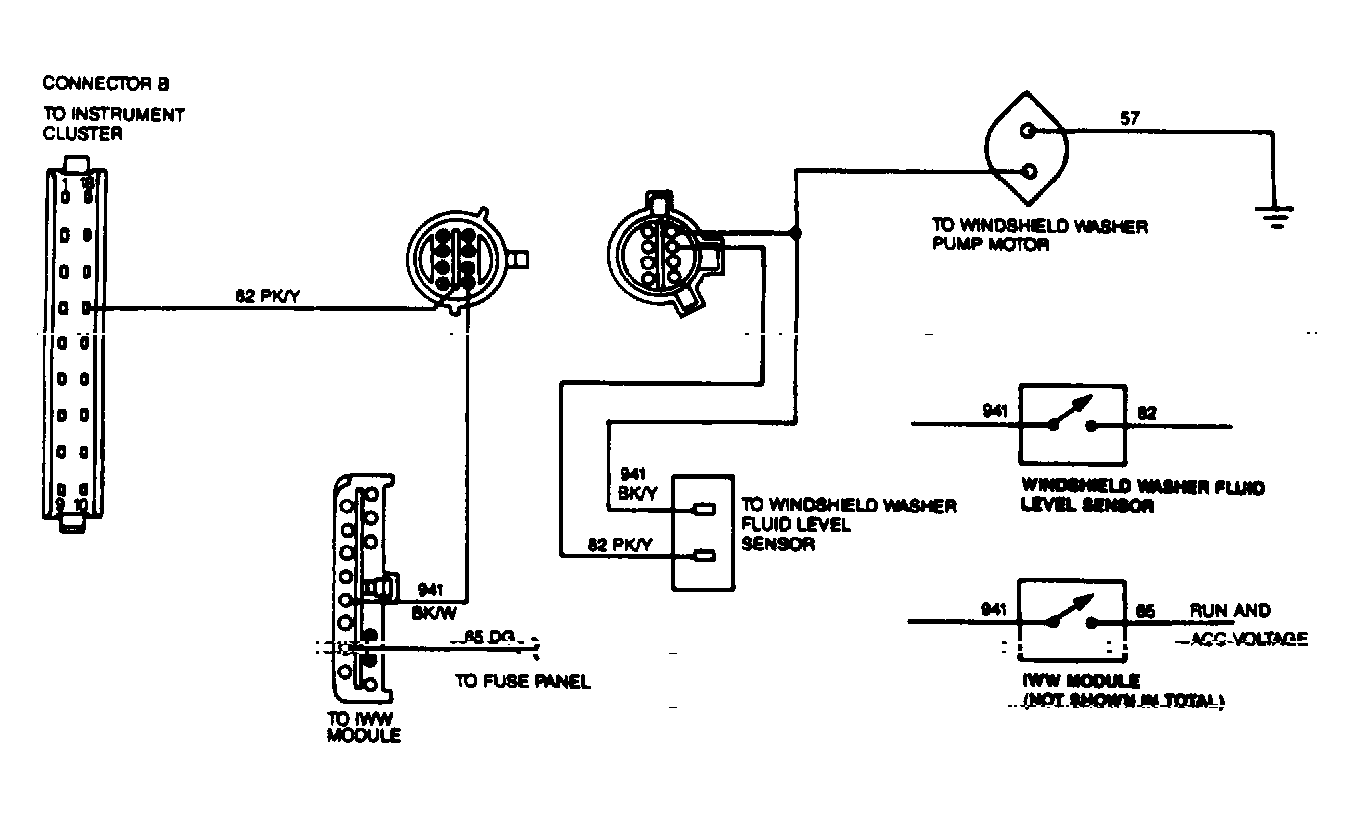

Fig 1: Windshield Washer Level Circuit Quick Check
G90D08286
