Quick Check

Check oil level with dipstick. Turn ignition switch to OFF position. Disconnect oil level sensor. Wait 2 minutes, then turn ignition switch to RUN position. Warning light should not light. Turn ignition switch to OFF position. Attach jumper wire from harness connector to ground. Wait 2 minutes. Turn ignition switch to RUN position. Warning light should be on.

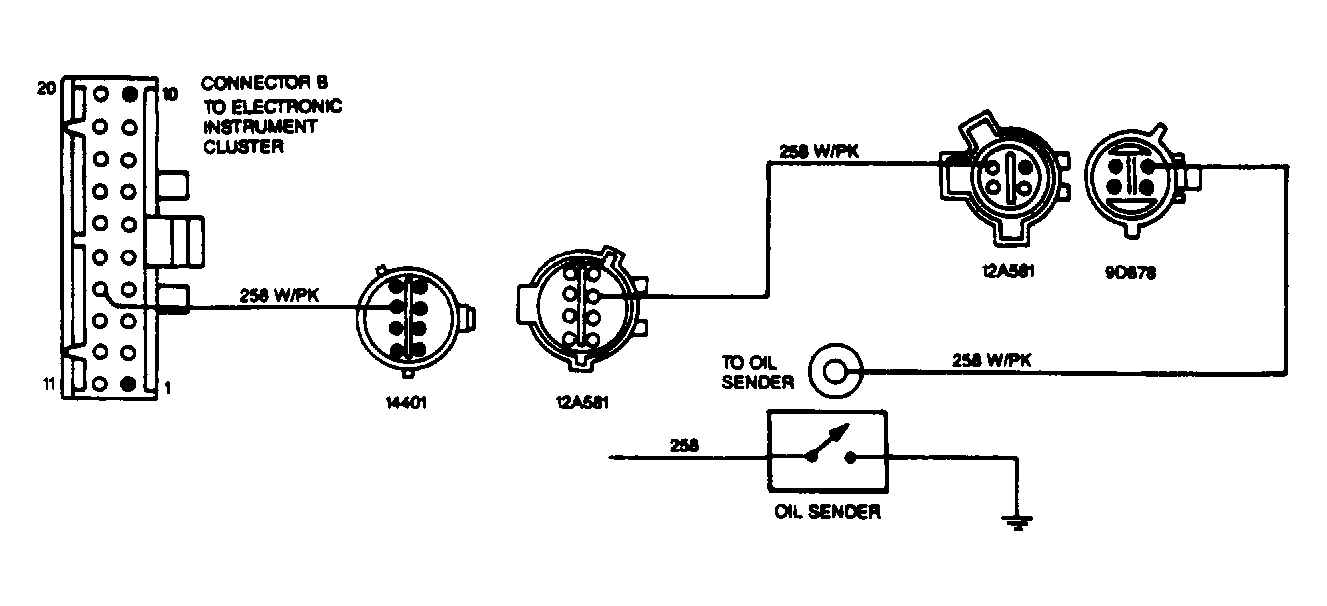

Fig 1: Oil Level Warning Circuit Quick Check
G90H08288
