Quick Check

Look for a charging system warning that normally occurs with ignition switch in RUN position, engine off. The warning should come on within 15-20 seconds. Start engine and charging system warning should go out. Wait at least 15 seconds.

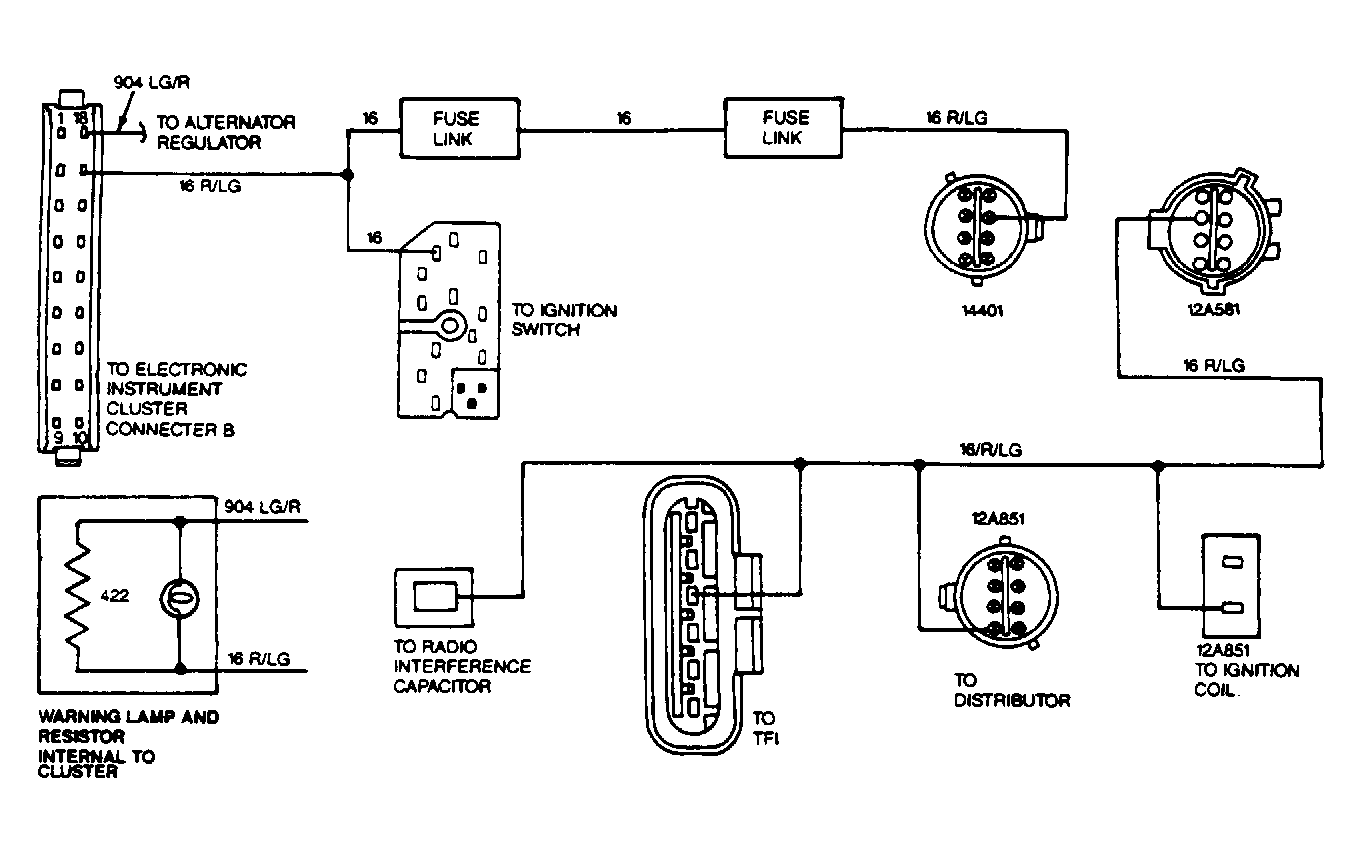

Fig 1: Charging System Circuit Quick Check
G90B08285
