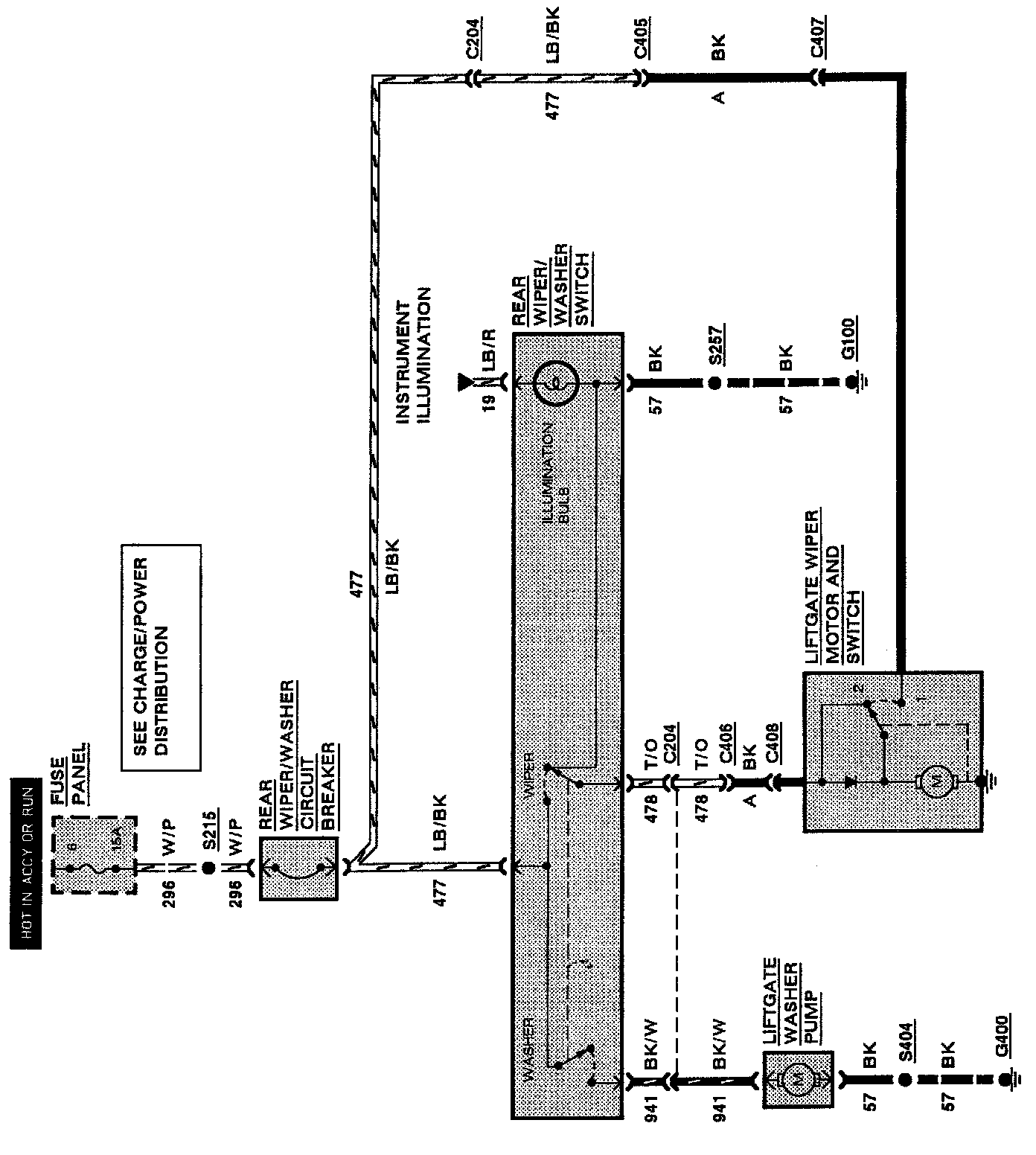

Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
