High Steering Gear Efforts at All Vehicle Speeds
High Steering Gear Efforts at All Vehicle Speeds

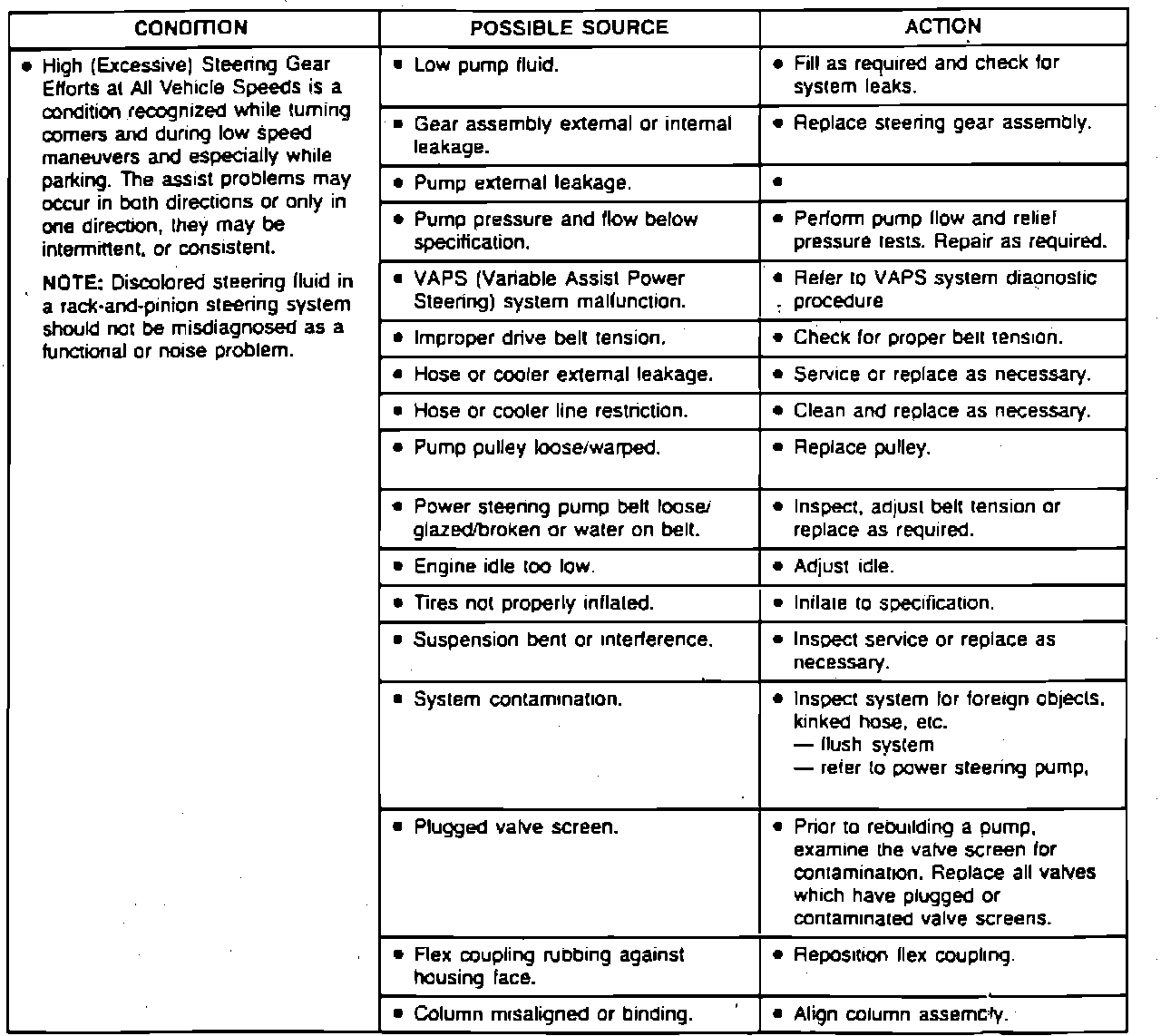

Fig. 4 Steering System Troubleshooting (Part 1 Of 8):
