Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Diagnosis By Symptom
>>
High Efforts at Low Vehicle Speeds
High Efforts at Low Vehicle Speeds

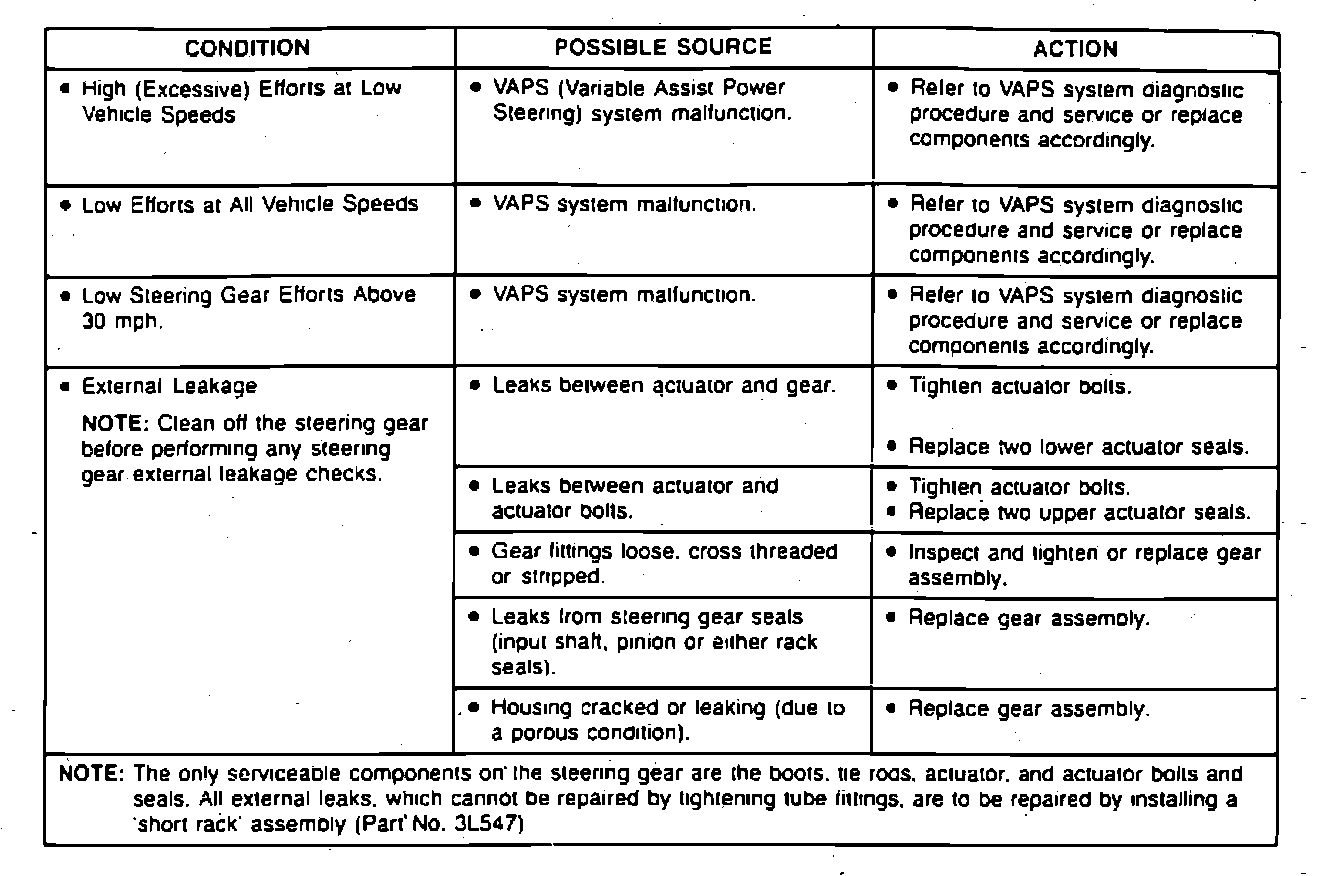

Fig. 4 Steering System Troubleshooting (Part 2 Of 8):
