5 Flashes - Short Forward Crash Sensor Deployment Ckt
5 Flashes - Short Forward Crash Sensor Deployment Ckt

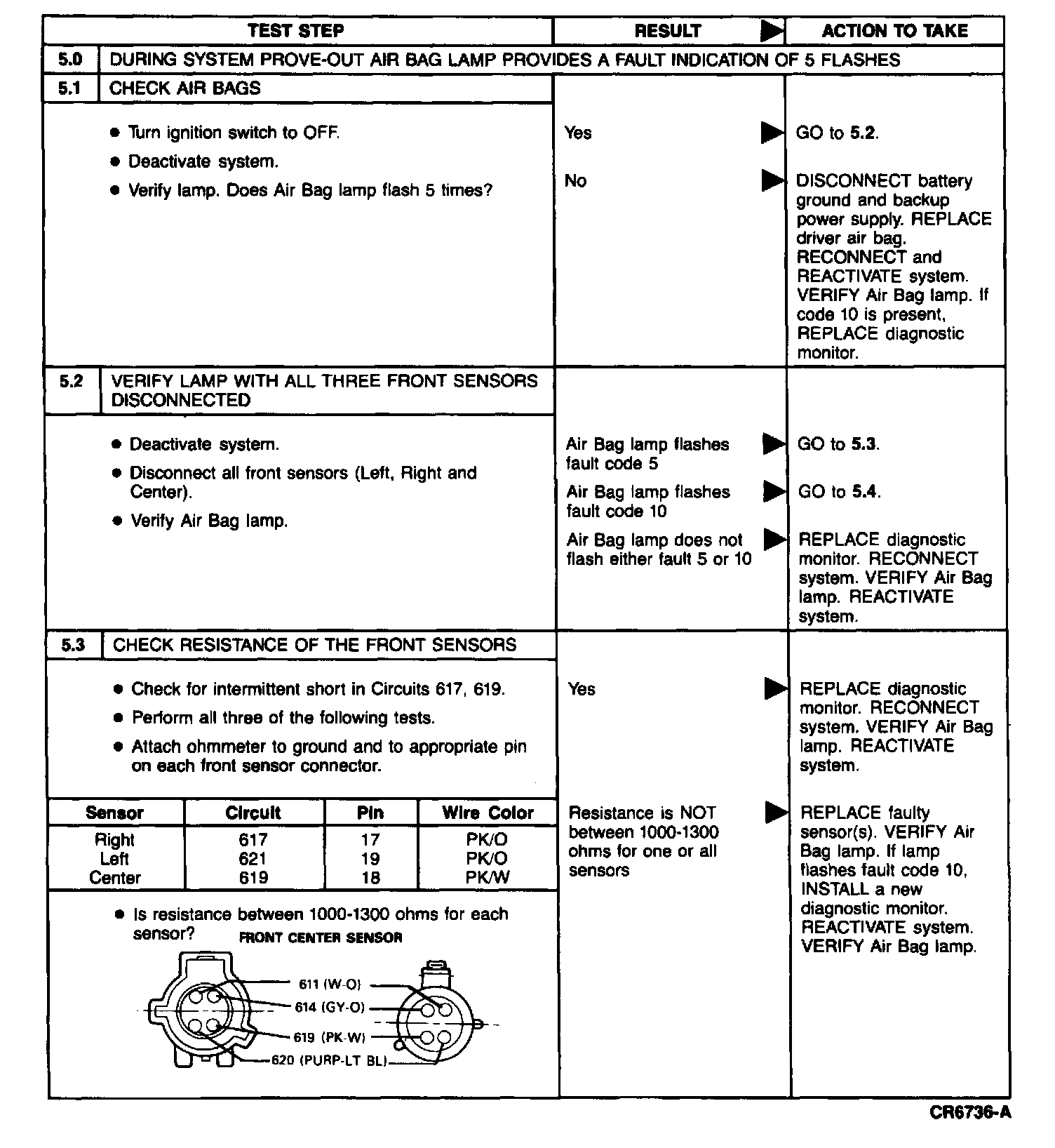

5.0-5.3:

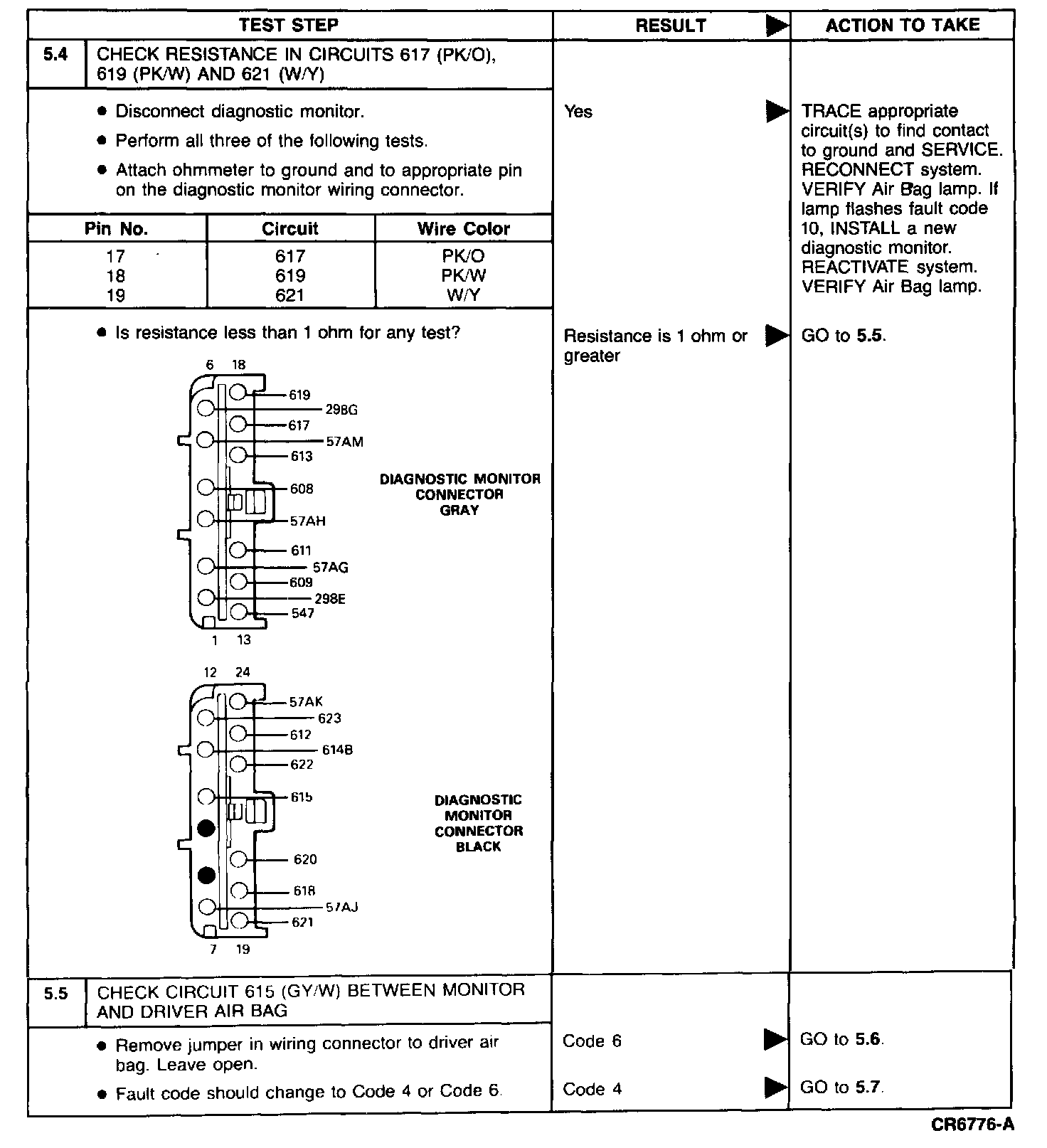

5.4-5.5:

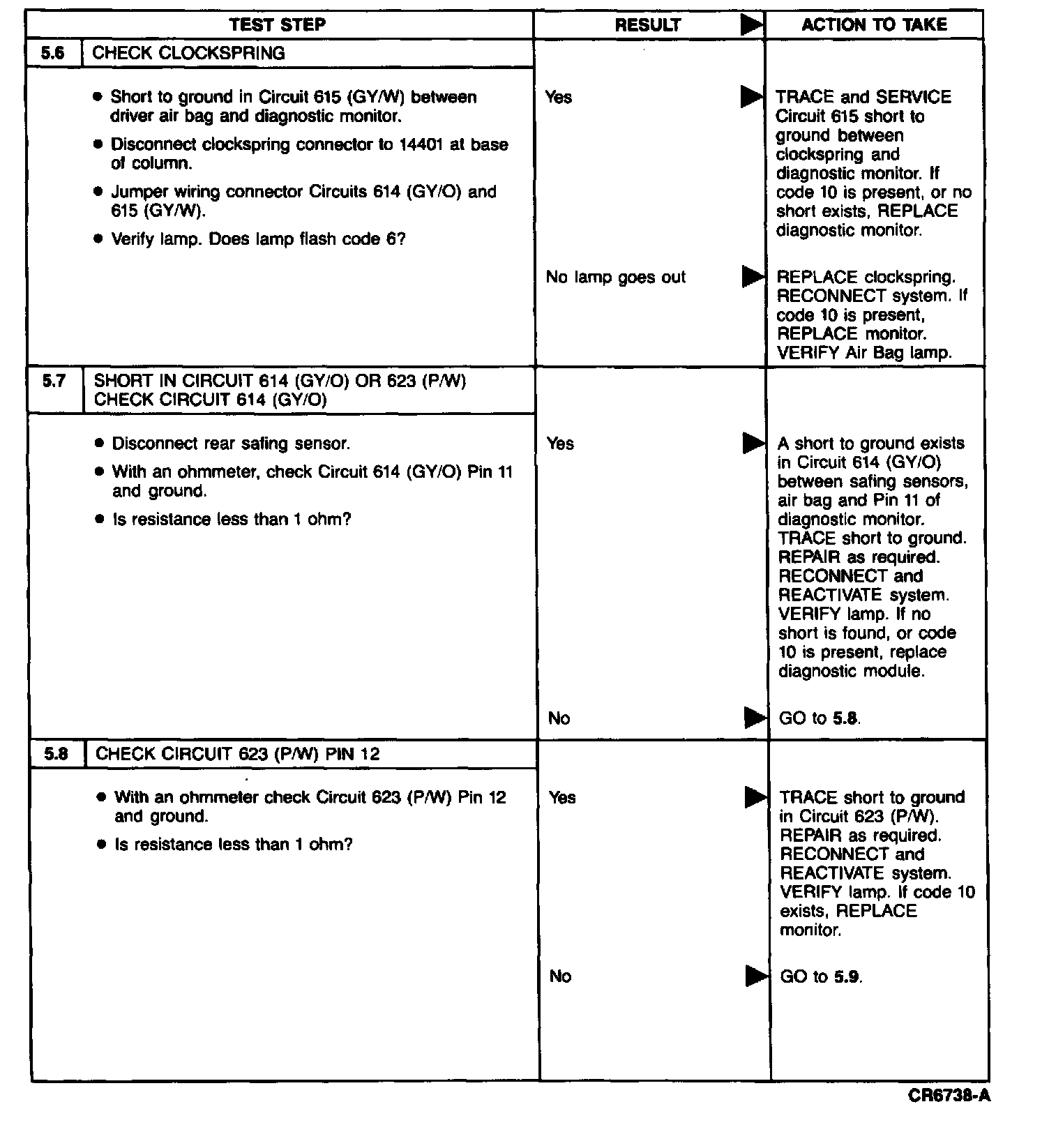

5.6-5.8:
5.9:
