Auxiliary Fuel Bowl Vent Tube

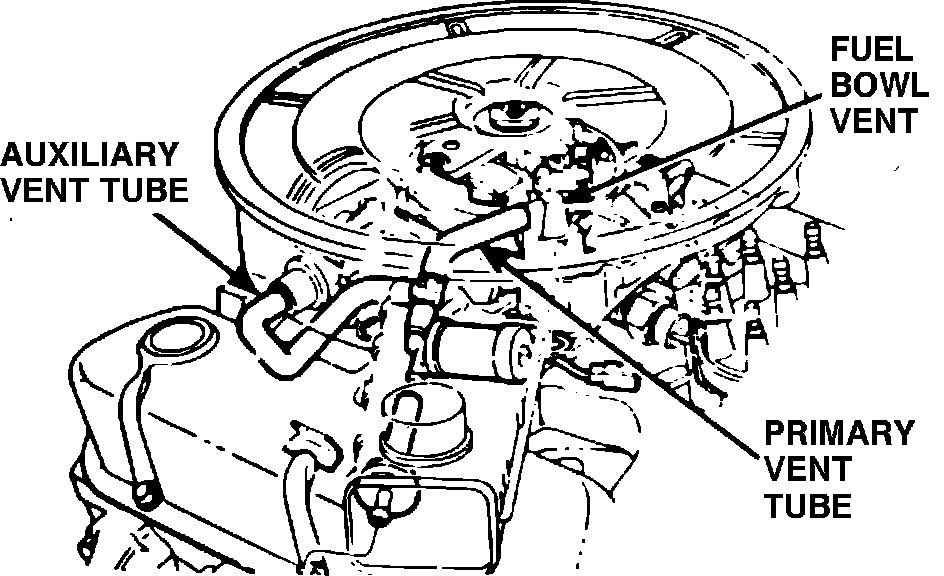

Fig. 44 Auxiliary fuel bowl vent tube:

Used on some vehicles, this auxiliary vent tube, Fig. 44, is teed into the primary fuel bowl vent tube to vent the fuel bowl when the internal vent is closed (external vent is closed) and the solenoid or thermal vent valves are closed. This tube is vented to the air cleaner.
