1.0-2.0 - Visual Check/Vehicle Preparation
1.0-2.0 - Visual Check/Vehicle Preparation

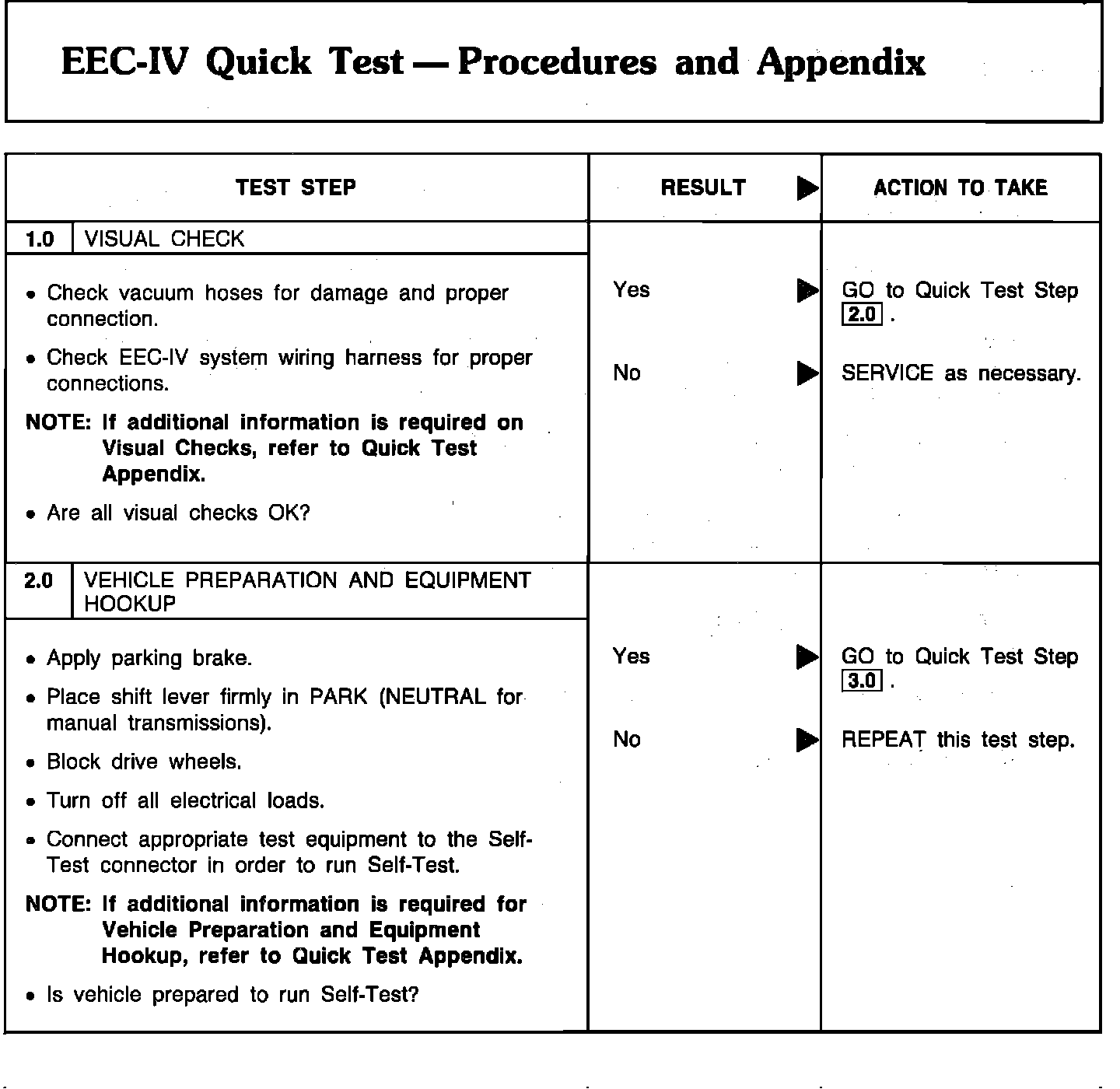

Quick Test 1.0 - Visual Check Vehicle Preparation & Equip. Hookup:
