N - Ignition Diagnostic Monitor (IDM)
>>
N7 - N8
N7 - N8

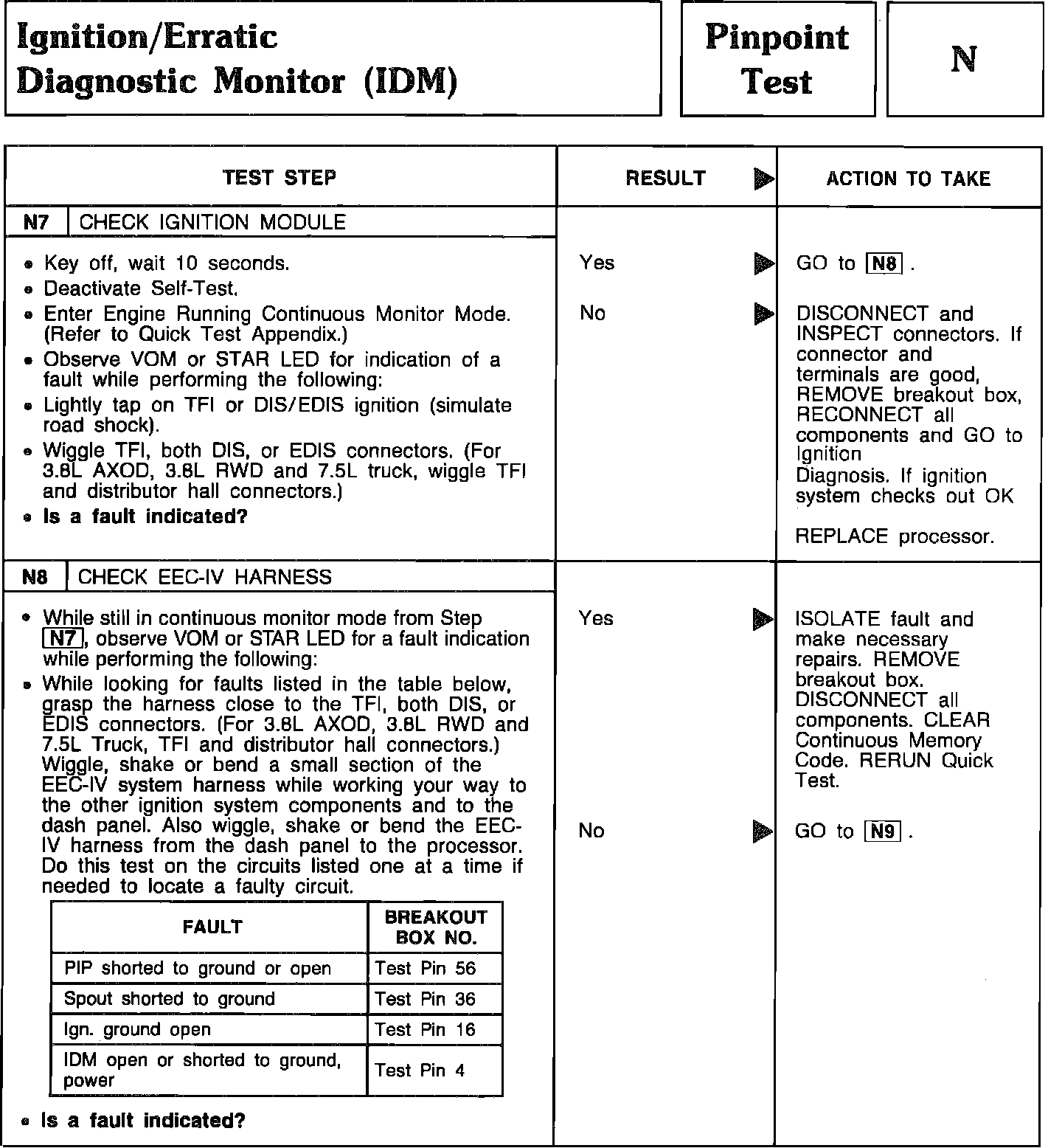

Pinpoint Test N7 Thru N8 - Ignition Diagnostic Monitor (IDM):
