N4 - N6

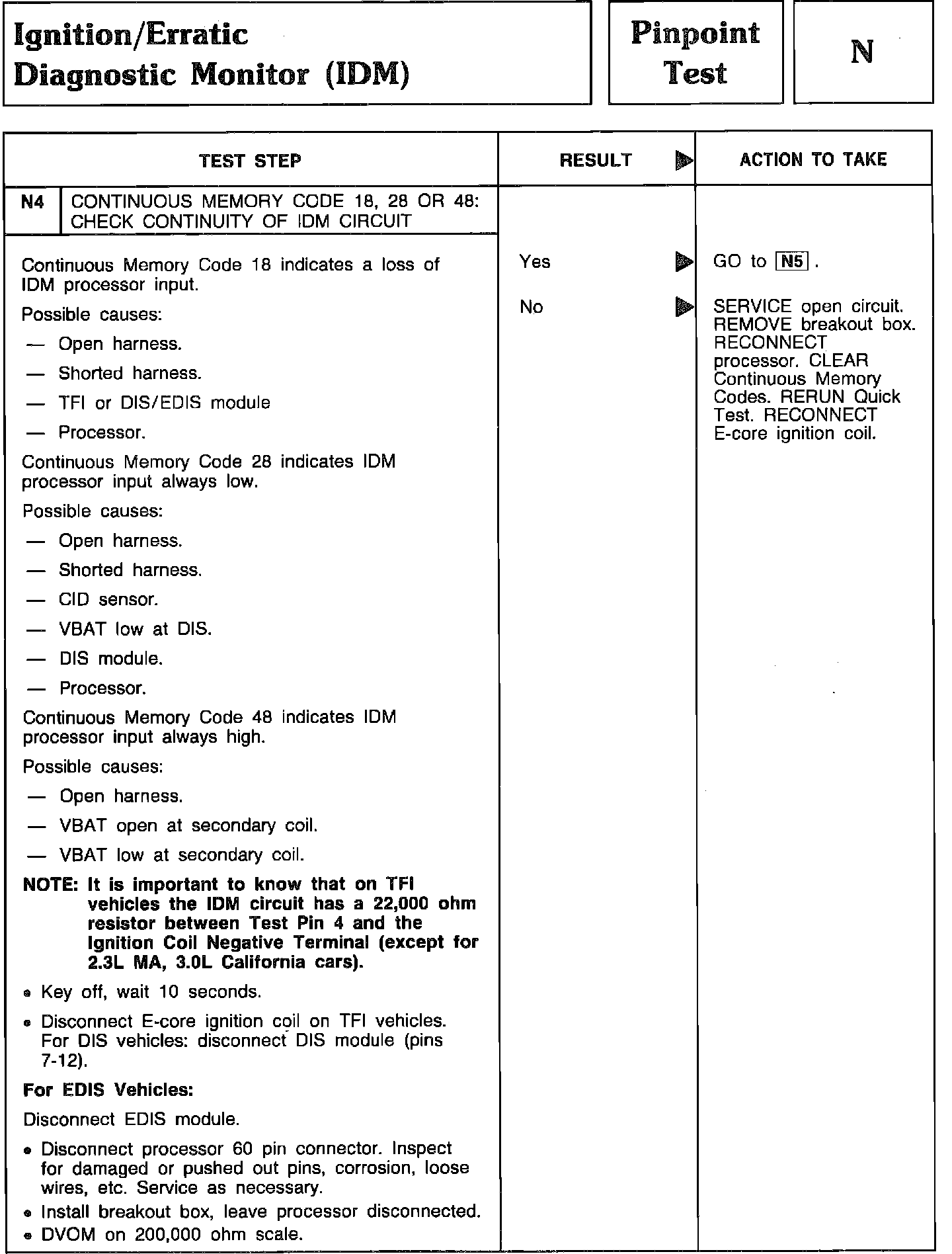

Pinpoint Test N4 - Ignition Diagnostic Monitor (IDM):

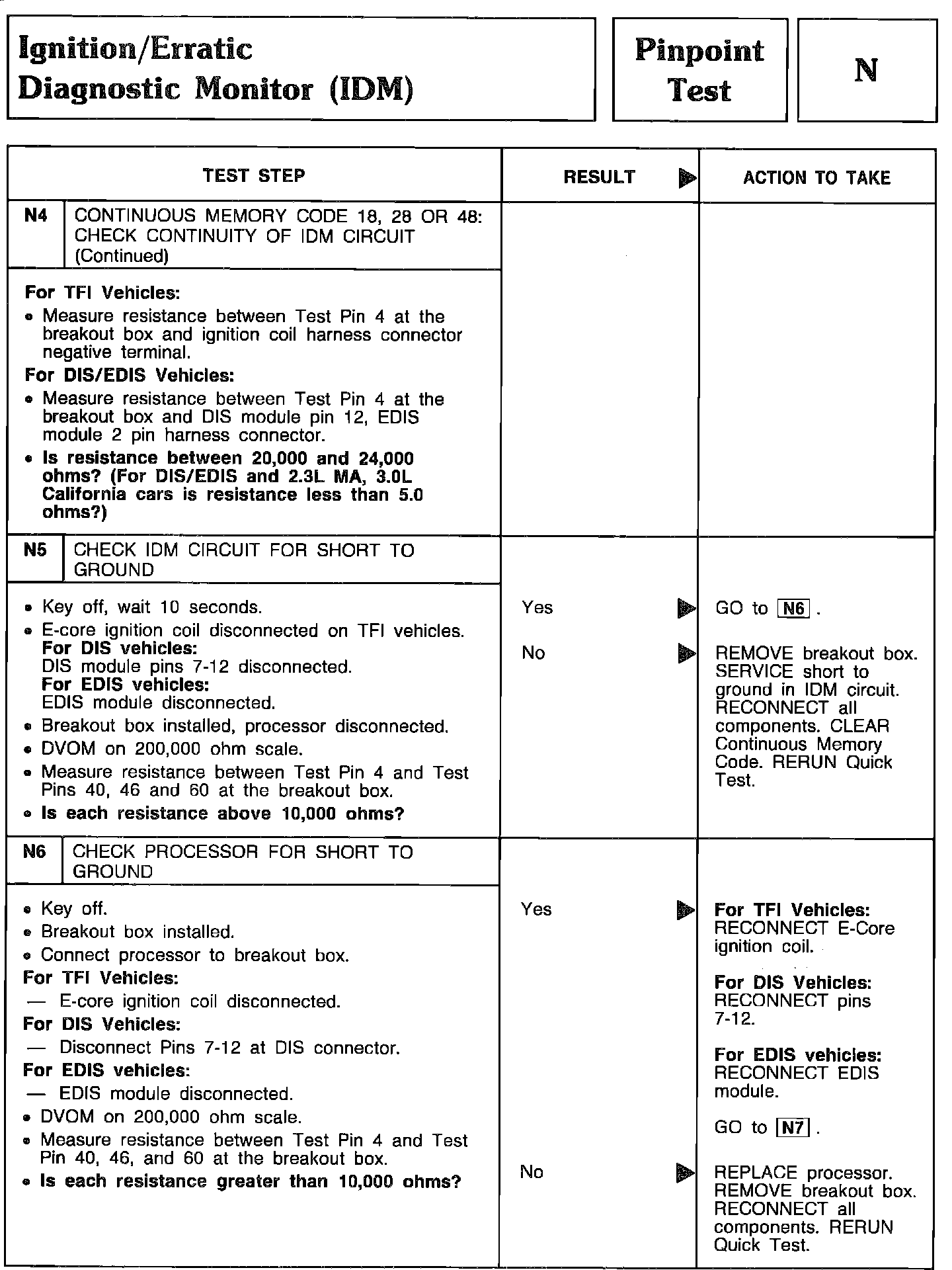

Pinpoint Test N4 (Continued) Thru N6 - Ignition Diagnostic Monitor (IDM):
