N - Ignition Diagnostic Monitor (IDM)
>>
N25 - N26
N25 - N26

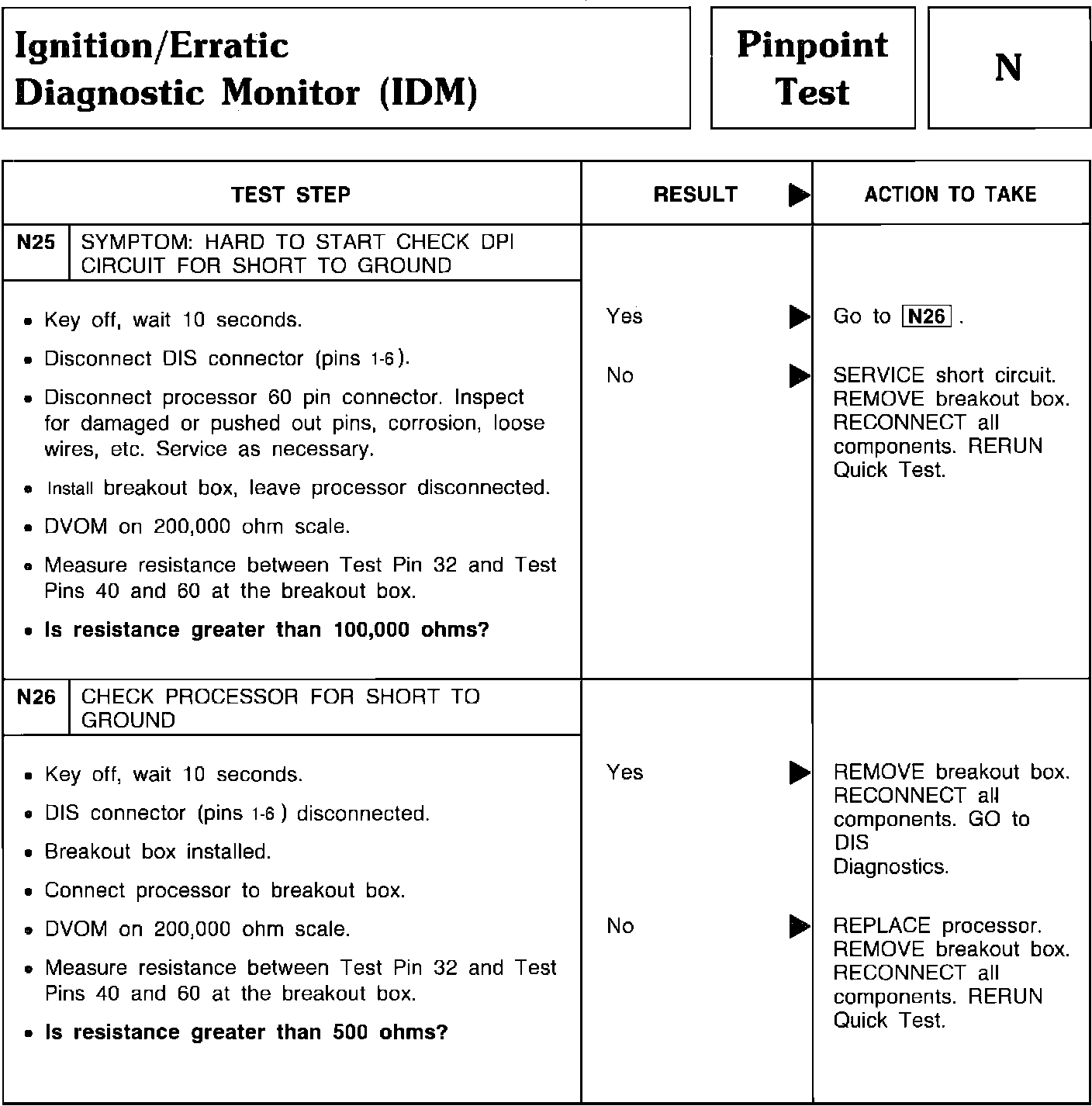

Pinpoint Test N25 & N26 - Ignition Diagnostic Monitor (IDM):
*** UPDATED BY TSB #9019B29 09-07-90
