N - Ignition Diagnostic Monitor (IDM)
>>
N18 - N20
N18 - N20

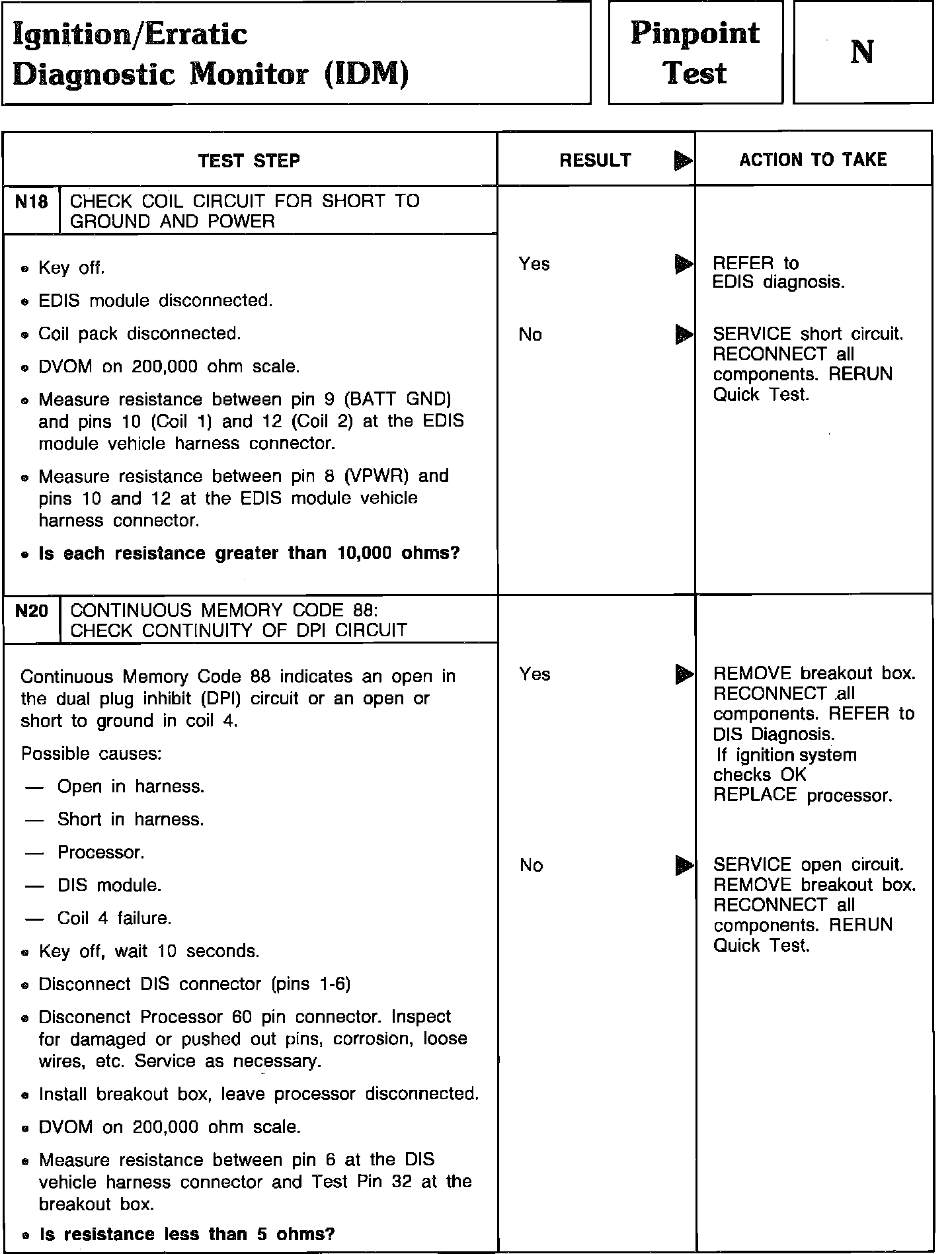

Pinpoint Test N18 & N20 - Ignition Diagnostic Monitor (IDM):
