N - Ignition Diagnostic Monitor (IDM)
>>
N11 - N12
N11 - N12

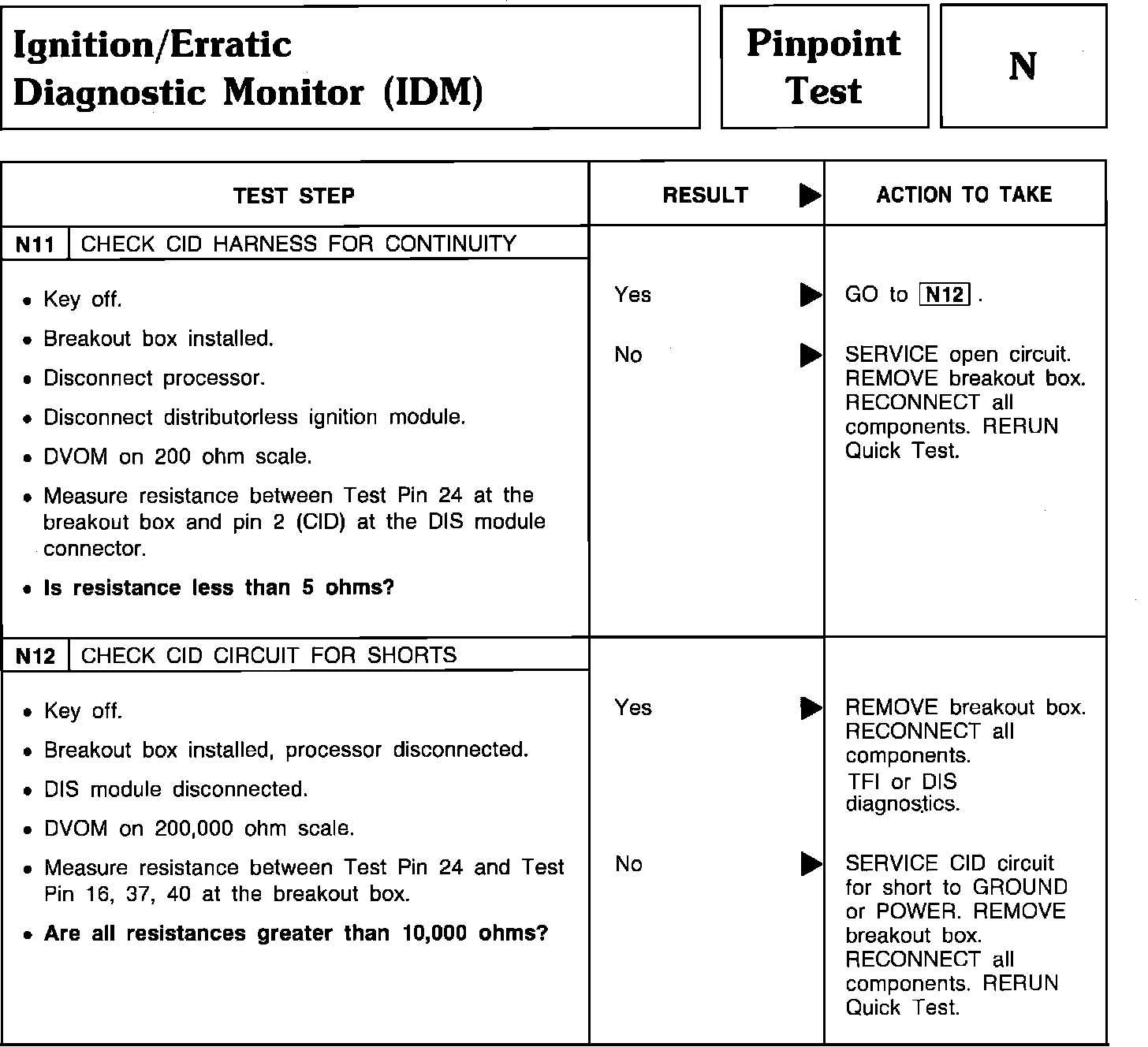

Pinpoint Test N11 & N12 - Ignition Diagnostic Monitor (IDM):
