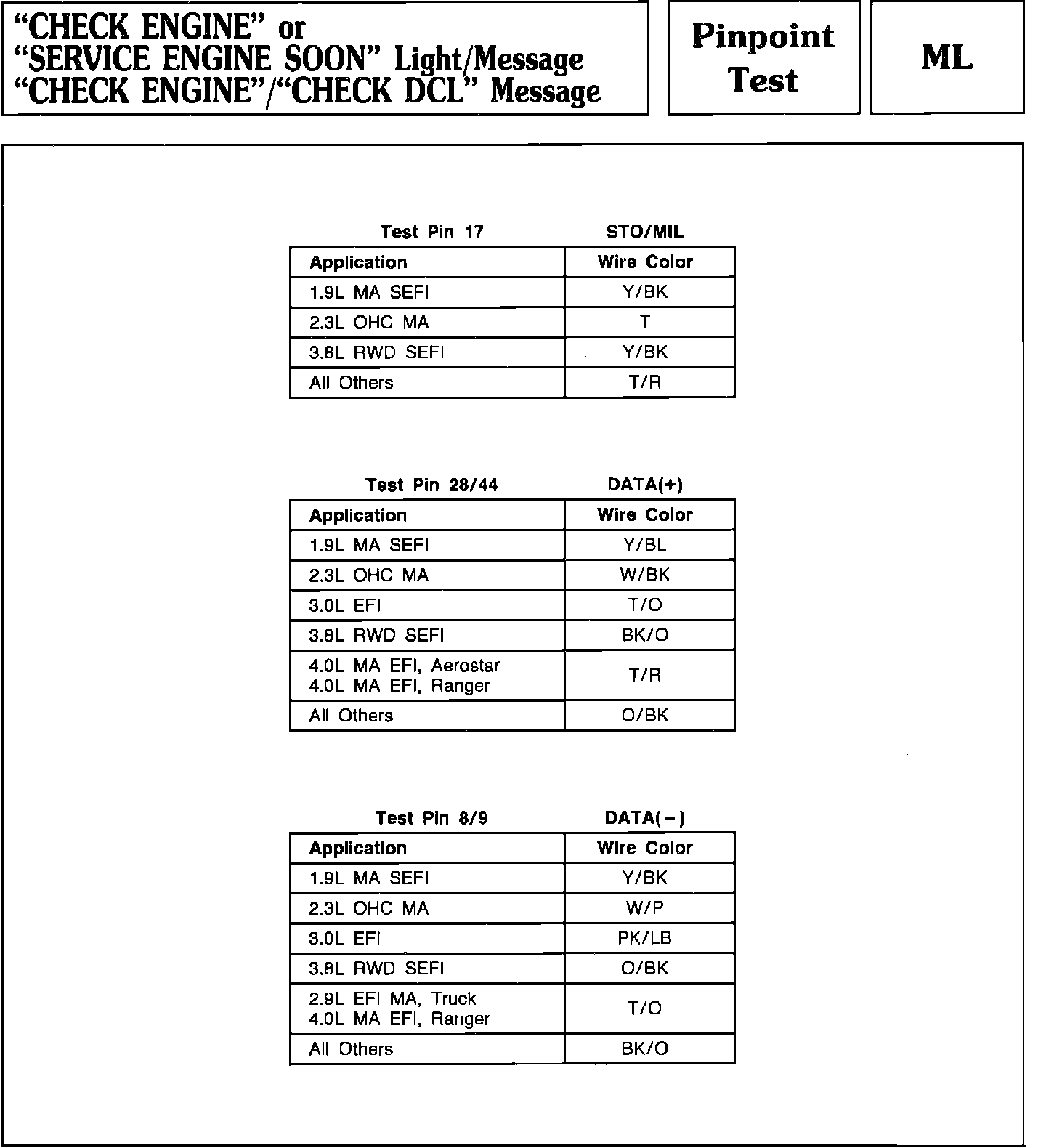

ML - Test Pins 17, 28/44 & 8/9

Pinpoint Test ML - "CHECK ENGINE" Light/Message/"CHECK DCL" Message:
