Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KT - Intake Air Control Valve (IAC) System
>>
KT6 - KT7
KT6 - KT7

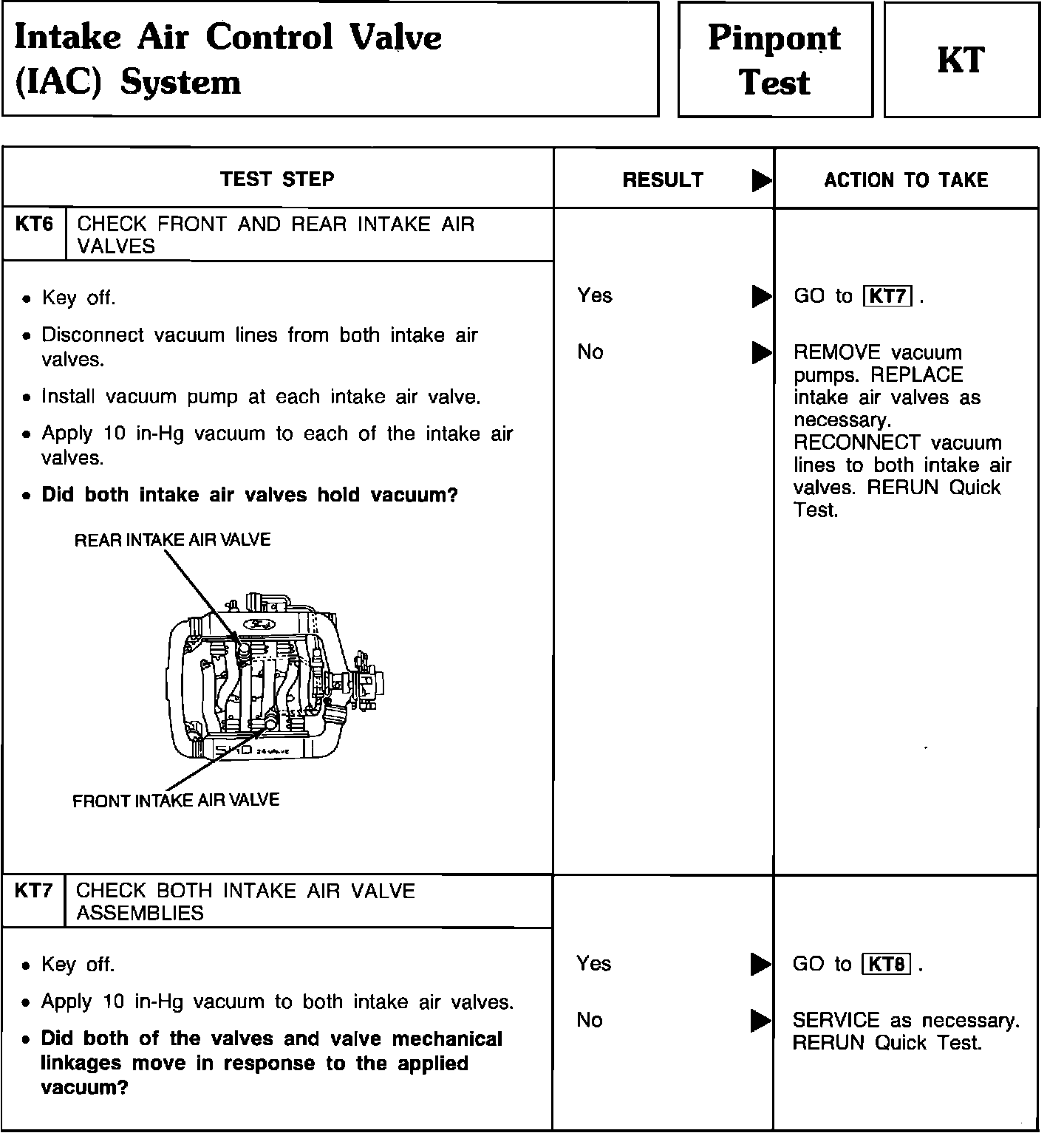

Pinpoint Test KT6 Thru KT7 - Intake Air Control Valve System:
