KT - Intake Air Control Valve (IAC) System
>>
KT3 - KT5
KT3 - KT5

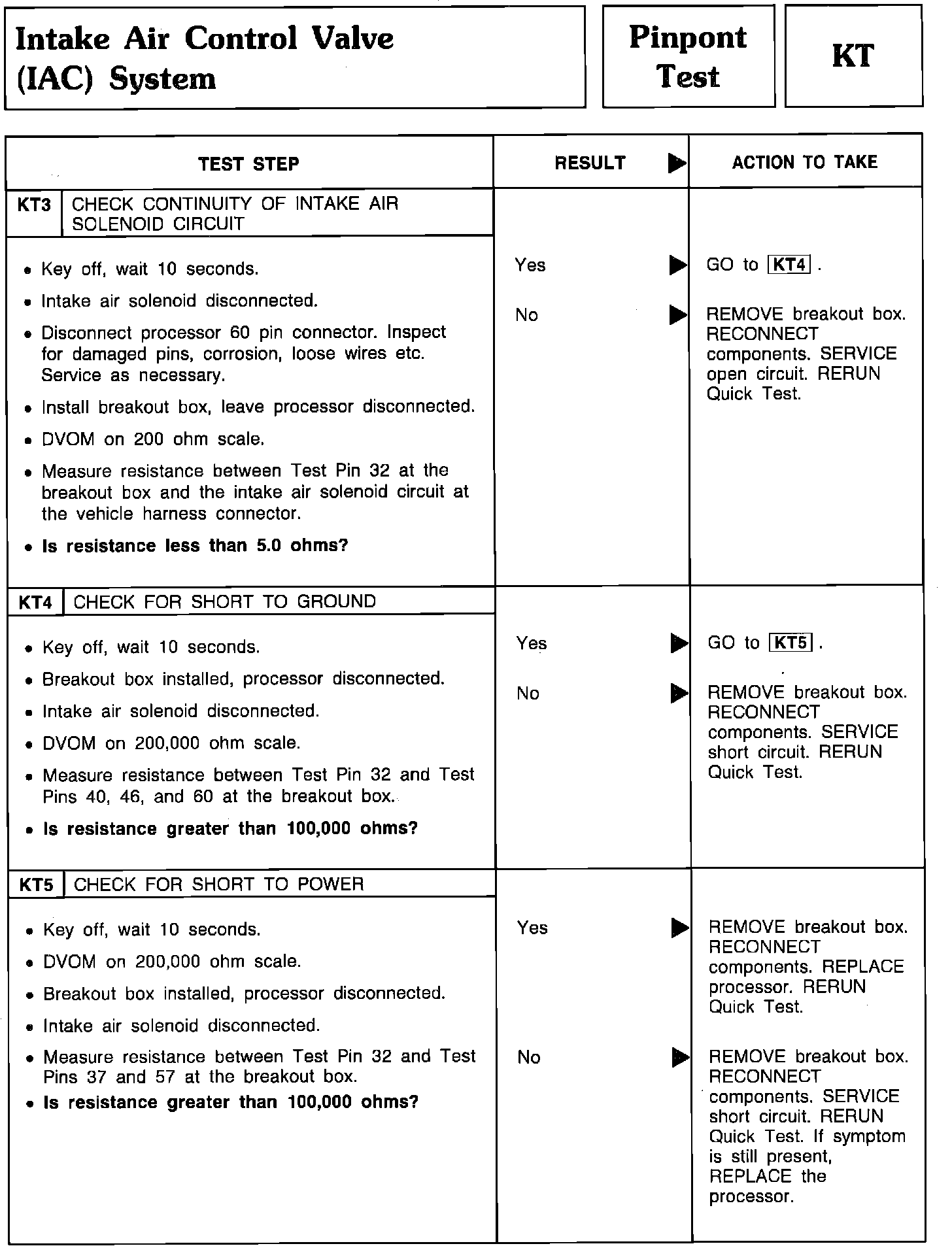

Pinpoint Test KT3 Thru KT5 - Intake Air Control Valve System:
