KT - Intake Air Control Valve (IAC) System
>>
KT1 - KT2
KT1 - KT2

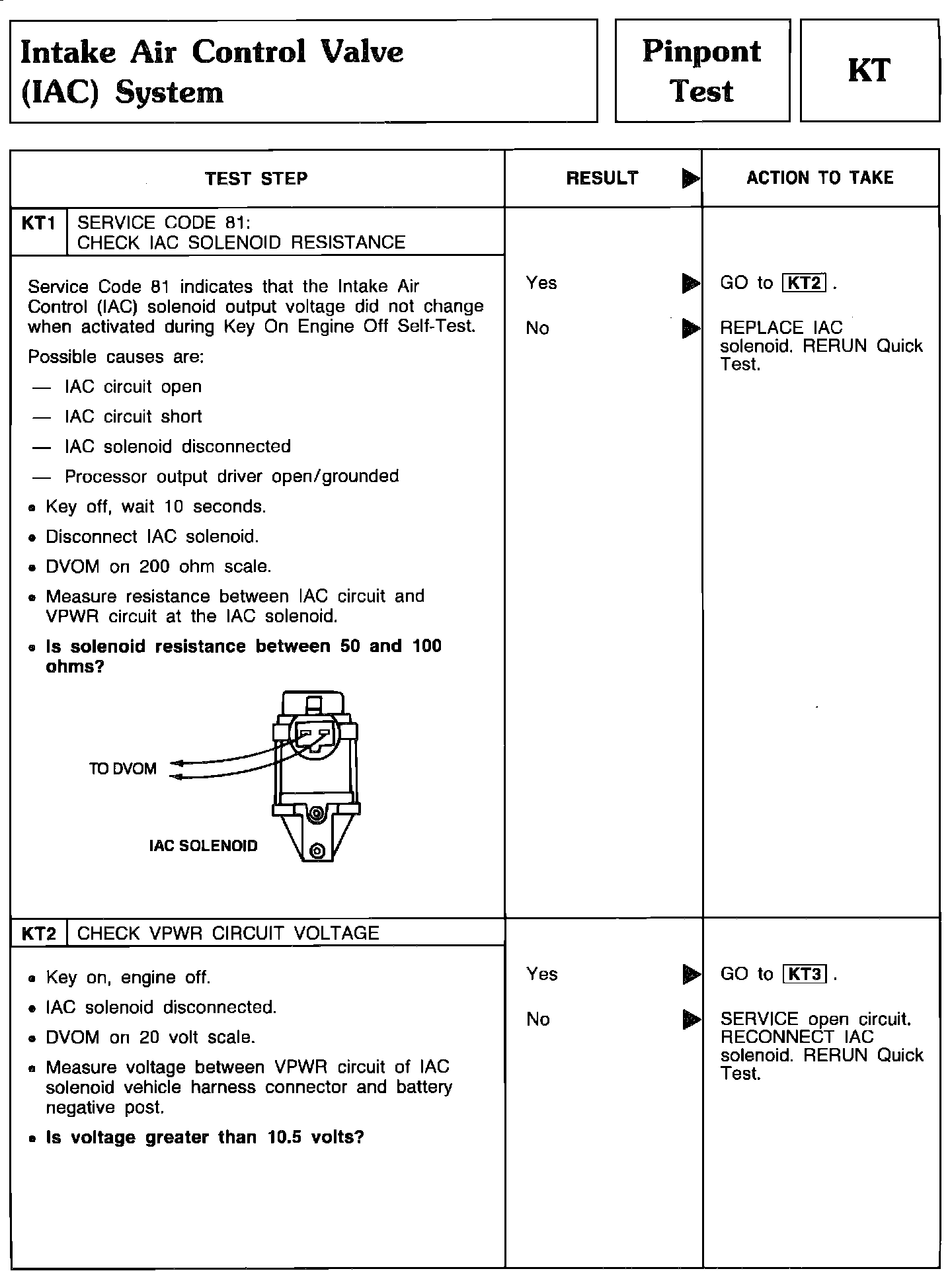

Pinpoint Test KT1 & KT2 - Intake Air Control Valve (IAC) System:
