KE - Idle Speed Control
>>
KE1 - KE2
KE1 - KE2

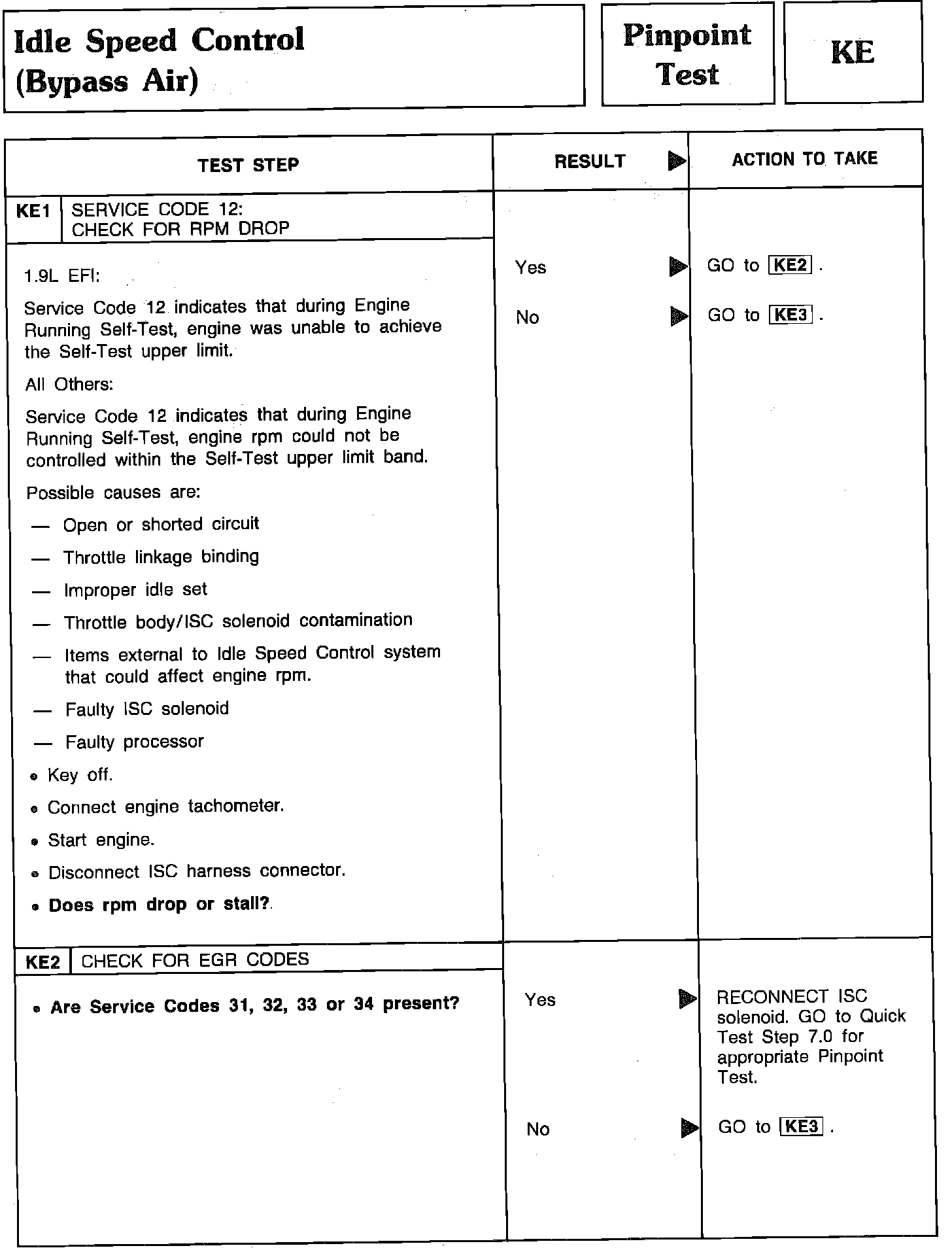

Pinpoint Test KE1 & KE2 - Idle Speed Control (Bypass Air):
