KD - Canister Purge (CANP) Solenoid
>>
KD9 - KD10
KD9 - KD10

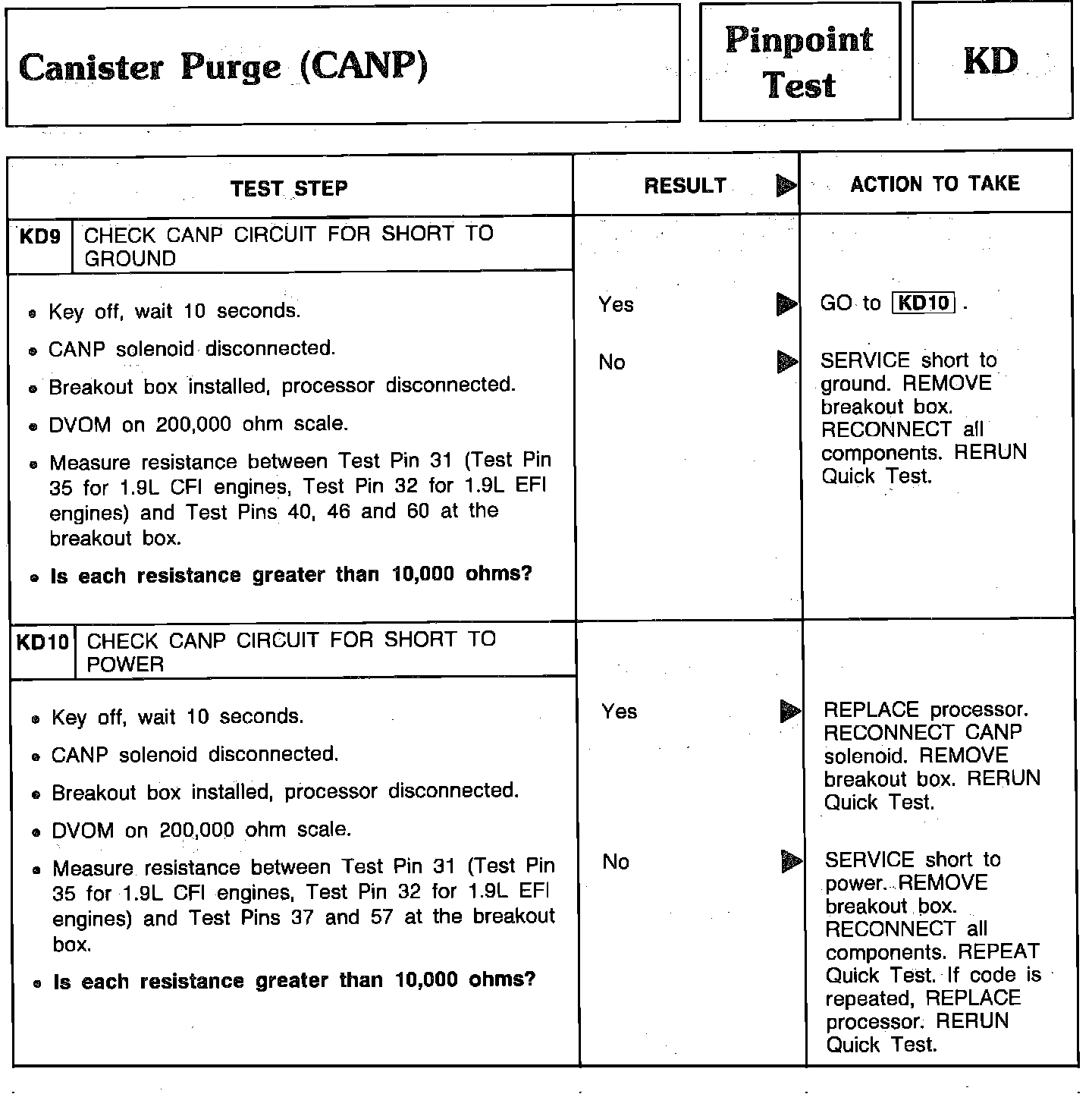

Pinpoint Test KD9 & KD10 - Canister Purge (CANP):
