KD - Canister Purge (CANP) Solenoid
>>
KD4 - KD5
KD4 - KD5

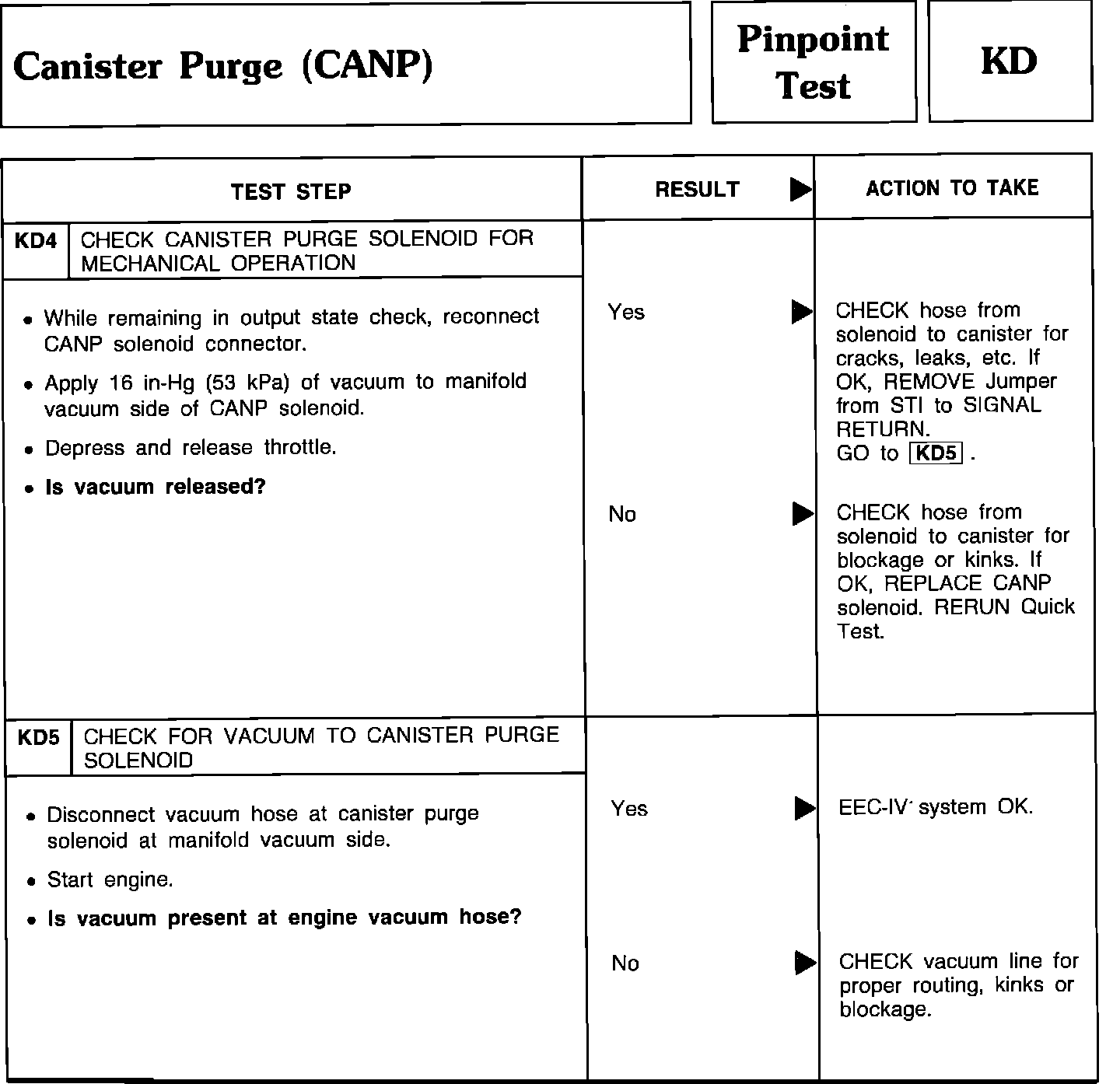

Pinpoint Test KD4 Thru KD5 - Canister Purge (CANP):
