Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J - Fuel Pump Circuit
>>
J24 - J25
J24 - J25

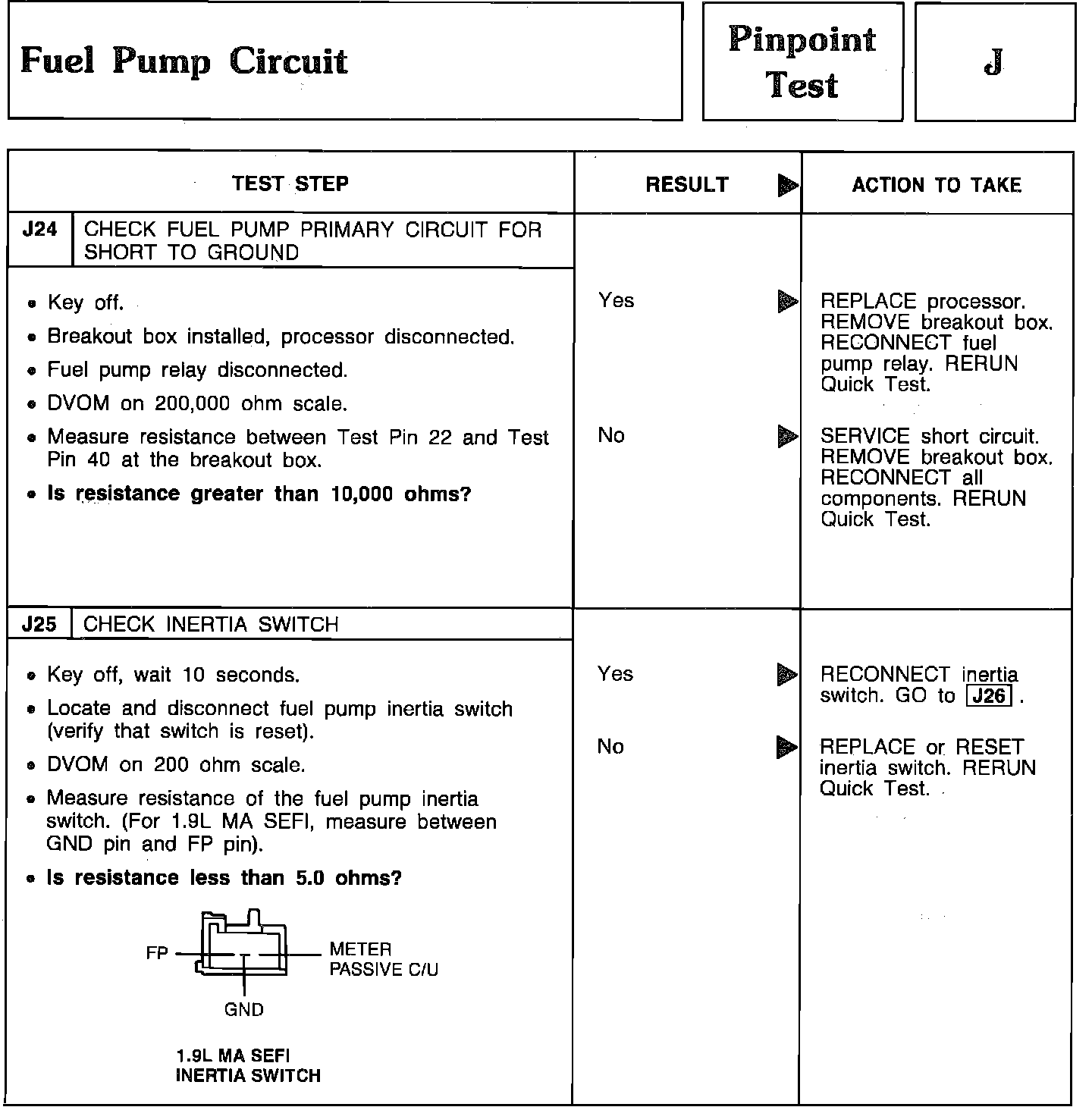

Pinpoint Test J24 & J25 - Fuel Pump Circuit:
