Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
J - Fuel Pump Circuit
>>
J22 - J23
J22 - J23

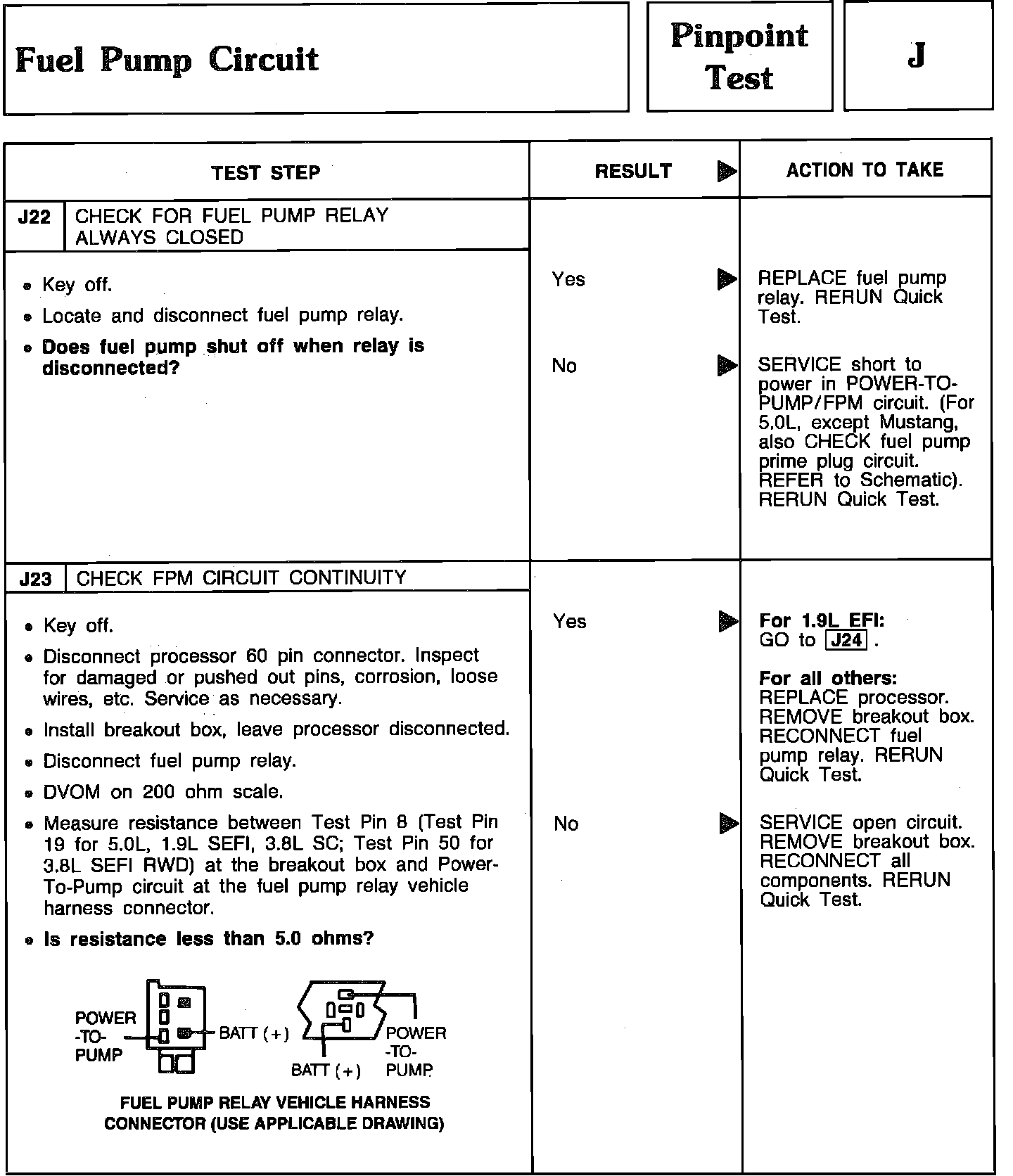

Pinpoint Test J22 & J23 - Fuel Pump Circuit:
