FD - Brake On/Off (BOO) Switch
>>
FD5 - FD7
FD5 - FD7

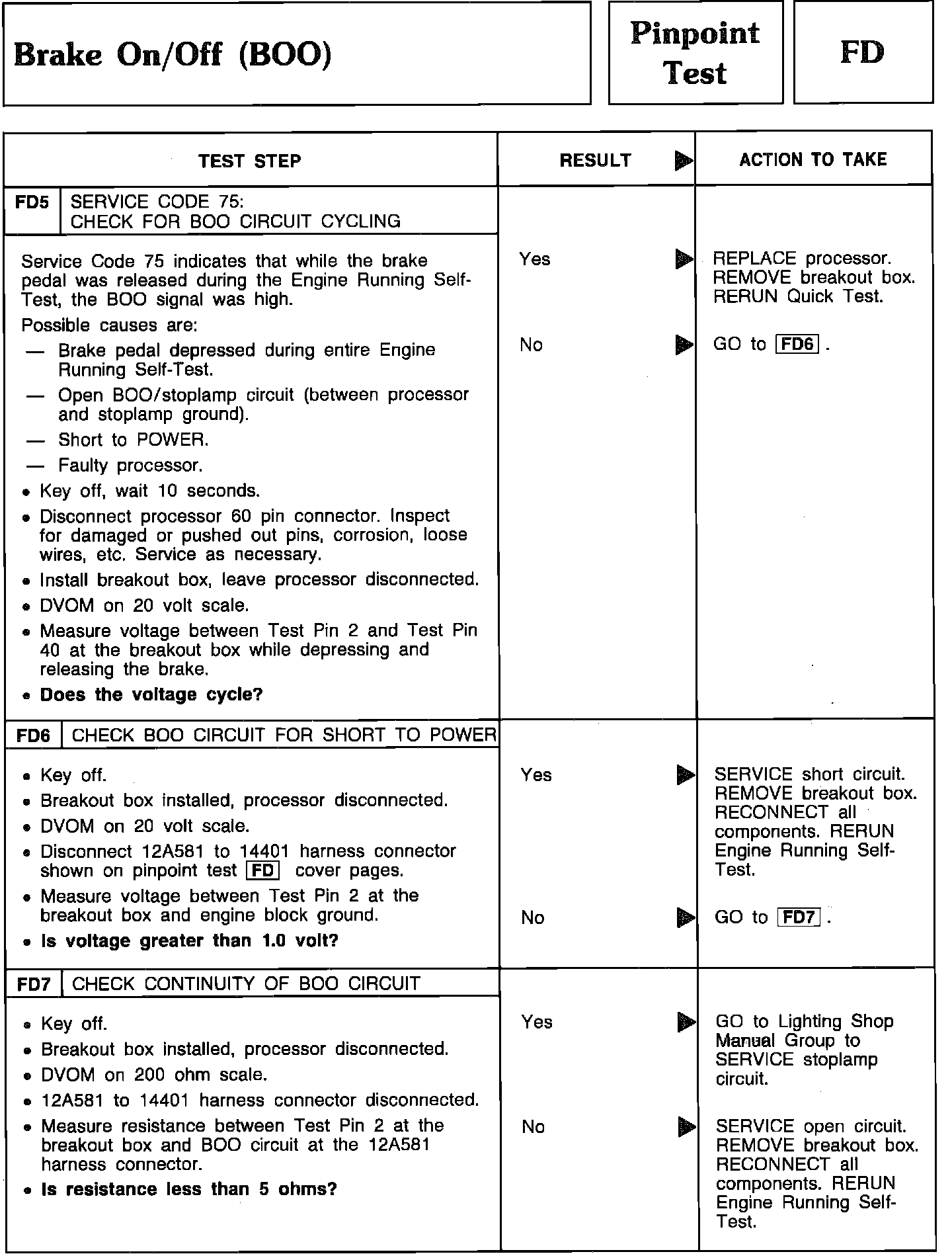

Pinpoint Test FD5 Thru FD7 - Brake On/Off (BOO):
