FD - Brake On/Off (BOO) Switch
>>
FD13 - FD15
FD13 - FD15

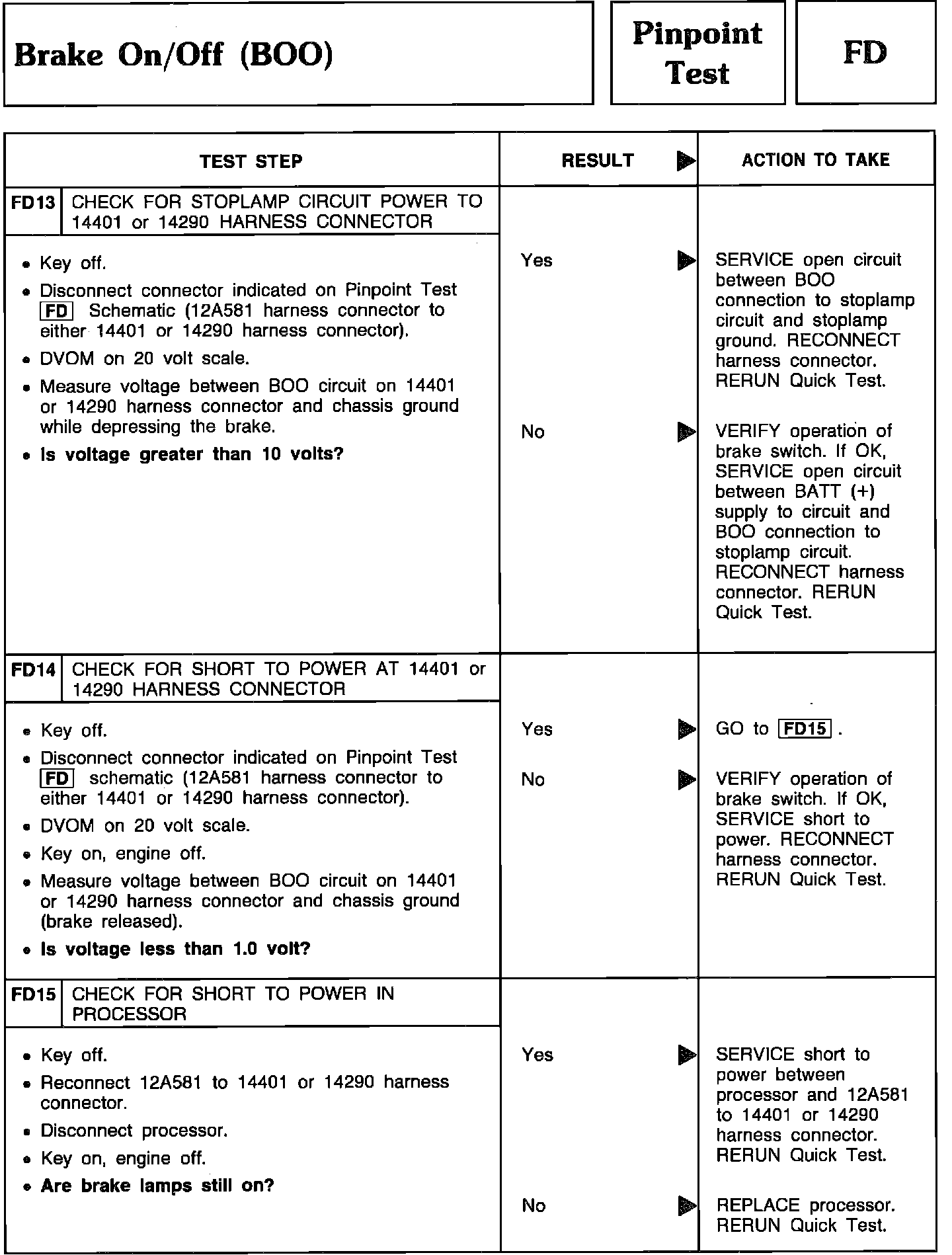

Pinpoint Test FD13 Thru FD15 - Brake On/Off (BOO):
