DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>
DN42 - DN44
DN42 - DN44

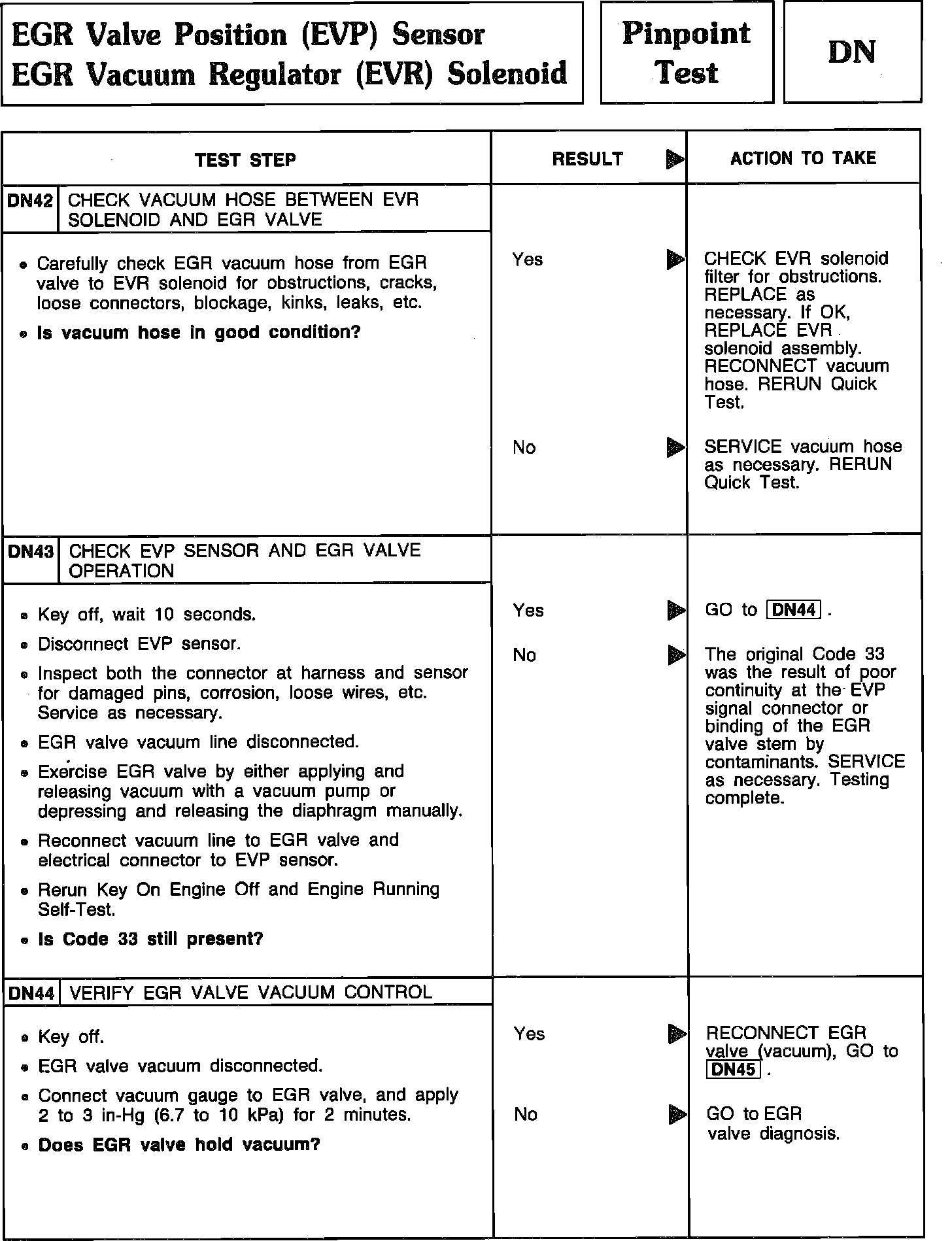

Pinpoint Test DN42 Thru DN44 - EGR Valve Position Sensor (EVP)/EGR Valve Regulator (EVR):
