DL - Pressure Feedback EGR (PFE) & EGR Valve Regulator (EVR)
>>
DL25 - DL30
DL25 - DL30

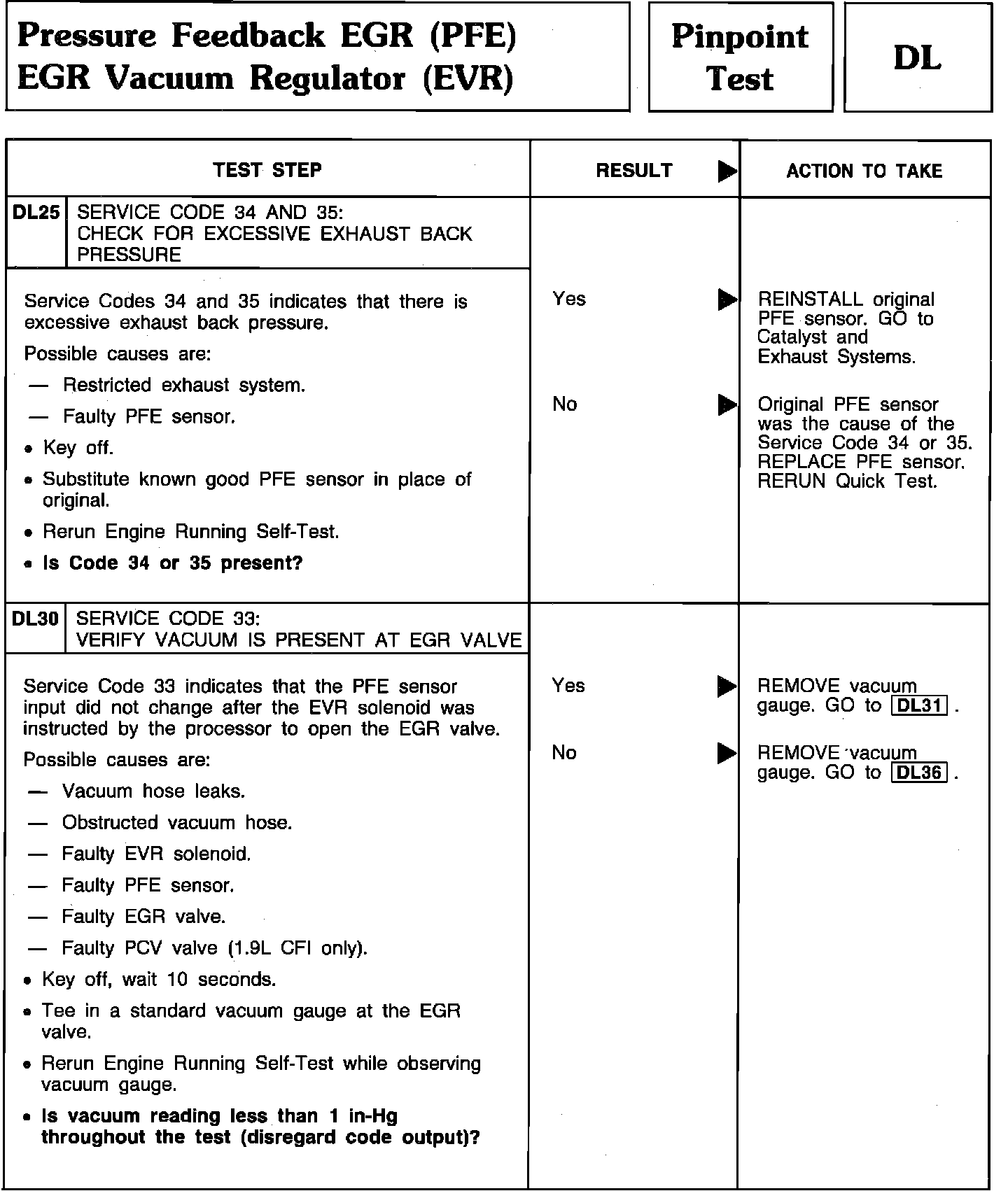

Pinpoint Test DL25 & DL30 - Pressure Feedback EGR (PFE)/EGR Valve Regulator (EVR):
