DK - Vane Air Flow Sensor (VAF)
>>
DK20 - DK21
DK20 - DK21

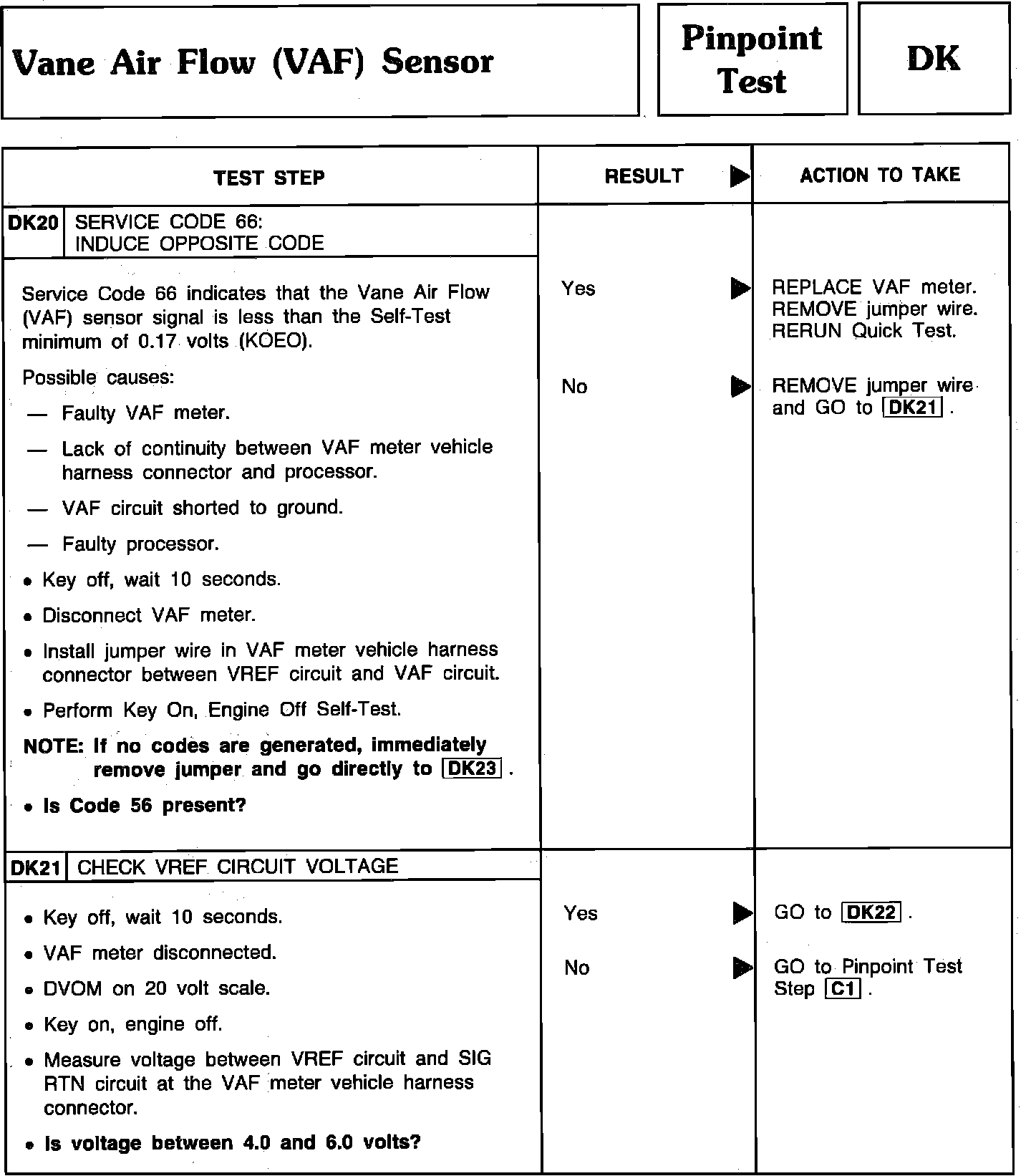

Pinpoint Test DK20 & DK21 - Vane Airflow Sensor (VAF):
