DH - Throttle Position (TP) Sensor
>>
DH3 - DH4
DH3 - DH4

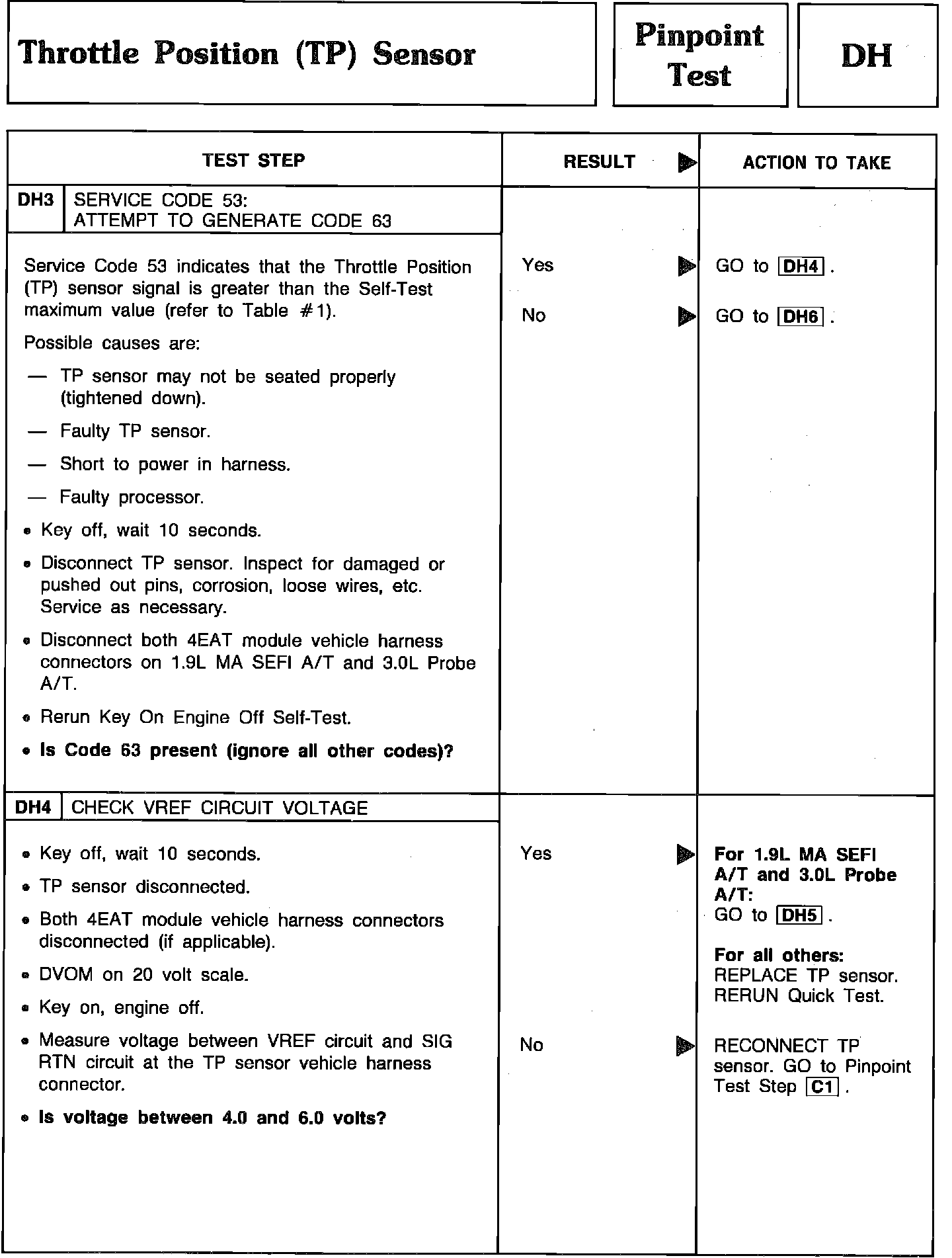

Pinpoint Test DH3 & DH4 - Throttle Position Sensor (TPS):
