DH - Throttle Position (TP) Sensor
>>
DH20 - DH21
DH20 - DH21

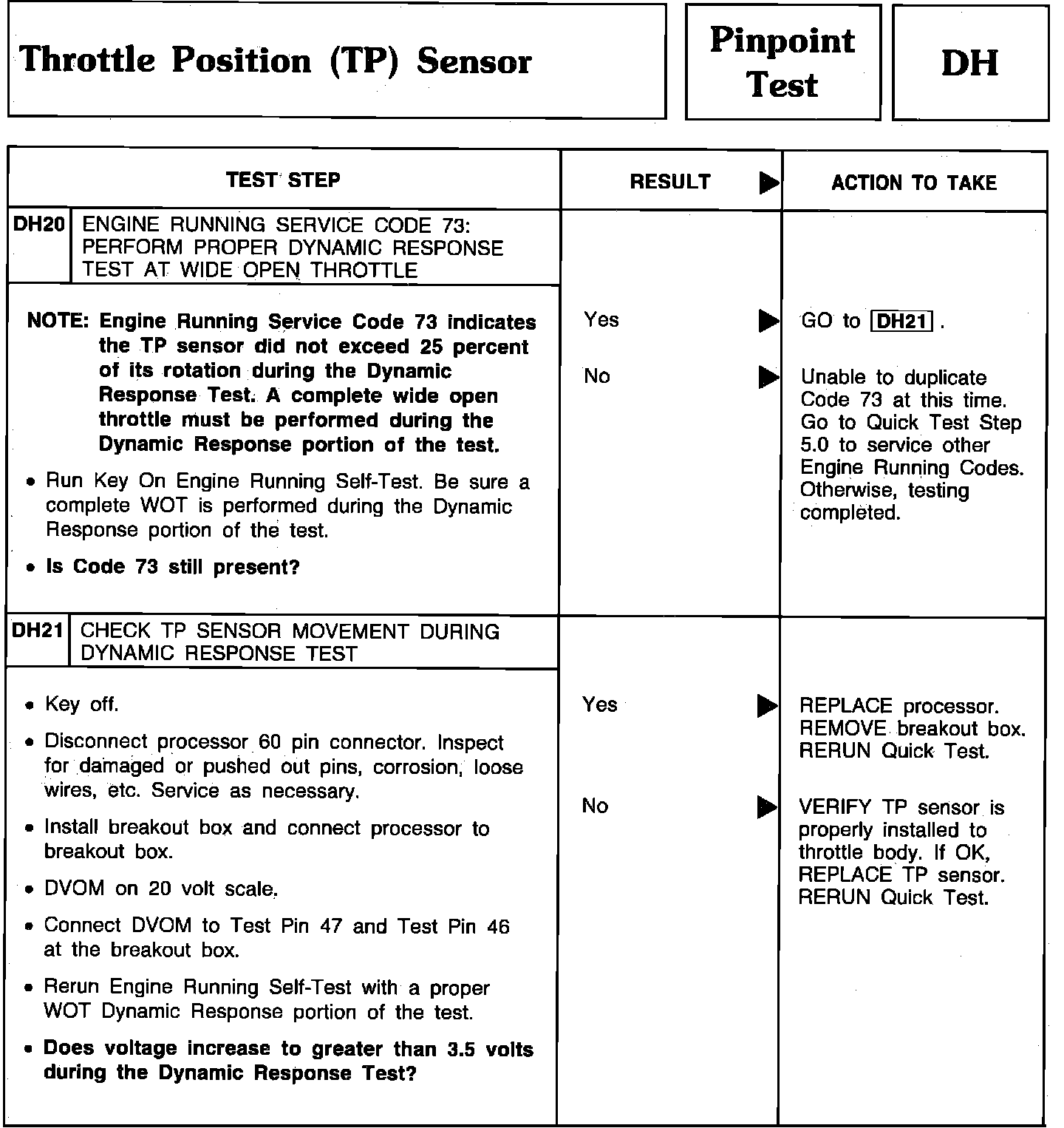

Pinpoint Test DH20 & DH21 - Throttle Position Sensor (TPS):
